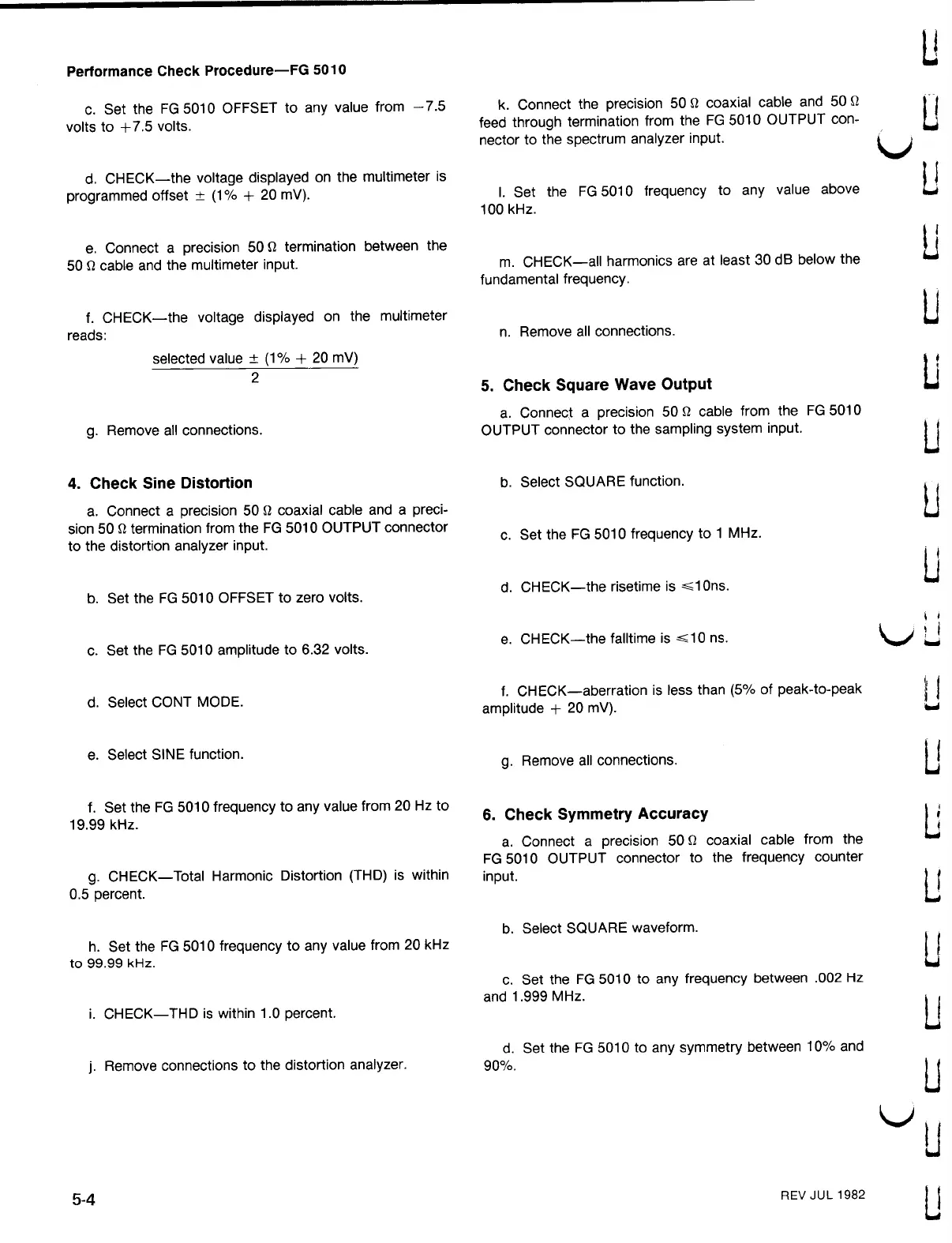

Performance
Check
Procedure
-
FG
5010
c
.
Set
the
FG
5010
OFFSET
to
any
value
from
-7.5
volts
to
+7.5
volts
.
d
.
CHECK
-
the
voltage
displayed
on
the
multimeter
is
programmed
offset
(
1
%
+
20
mV
)
.
e
.
Connect
a
precision
50
termination
between
the
50
cable
and
the
multimeter
input
.
f
.
CHECK
-
the
voltage
displayed
on
the
multimeter
reads
:
selected
value
±
(
1
%
+
20
mV
)
2
g
.
Remove
all
connections
.
4.
Check
Sine
Distortion
a
.
Connect
precision
50
coaxial
cable
and
a
preci
sion
50
2
termination
from
the
FG
5010
OUTPUT
connector
to
the
distortion
analyzer
input
.
b
.
Set
the
FG
5010
OFFSET
to
zero
volts
.
c
.
Set
the
FG
5010
amplitude
to
6.32
volts
.
d
.
Select
CONT
MODE
.
e
.
Select
SINE
function
.
f
.
Set
the
FG
5010
frequency
to
any
value
from
20
Hz
to
19.99
kHz
.
g
.
CHECK
-
Total
Harmonic
Distortion
(
THD
)
is
within
0.5
percent
.
h
.
Set
the
FG
5010
frequency
to
any
value
from
20
kHz
to
99.99
kHz
.
i
.
CHECK
-
THD
is
within
1.0
percent
.
j
.
Remove
connections
to
the
distortion
analyzer
.
5-4
k
.
Connect
the
precision
50
coaxial
cable
and
50
feed
through
termination
from
the
FG
5010
OUTPUT
con
nector
to
the
spectrum
analyzer
input
.
1.
Set
the
FG
5010
frequency
to
any
value
above
100
kHz
.
m
.
CHECK
-
all
harmonics
are
at
least
30
dB
below
the
fundamental
frequency
.
n
.
Remove
all
connections
.
5.
Check
Square
Wave
Output
a
.
Connect
a
precision
50
cable
from
the
FG
5010
OUTPUT
connector
to
the
sampling
system
input
.
b
.
Select
SQUARE
function
.
c
.
Set
the
FG
5010
frequency
to
1
MHz
.
d
.
CHECK
-
the
risetime
is
<
10ns
.
e
.
CHECK
-
the
falltime
is
<
10
ns
.
f
.
CHECK
-
aberration
is
less
than
(
5
%
of
peak
-
to
-
peak
amplitude
+
20
mV
)
.
g
.
Remove
all
connections
.
6.
Check
Symmetry
Accuracy
a
.
Connect
a
precision
50
coaxial
cable
from
the
FG
5010
OUTPUT
connector
to
the
frequency
counter
input
.
b
.
Select
SQUARE
waveform
.
c
.
Set
the
FG
5010
to
any
frequency
between
.002
Hz
and
1.999
MHz
.
d
.
Set
the
FG
5010
to
any
symmetry
between
10
%
and
90
%
.
REV
JUL
1982
U
U
U
U
نال
L
B
L
U
U
U
