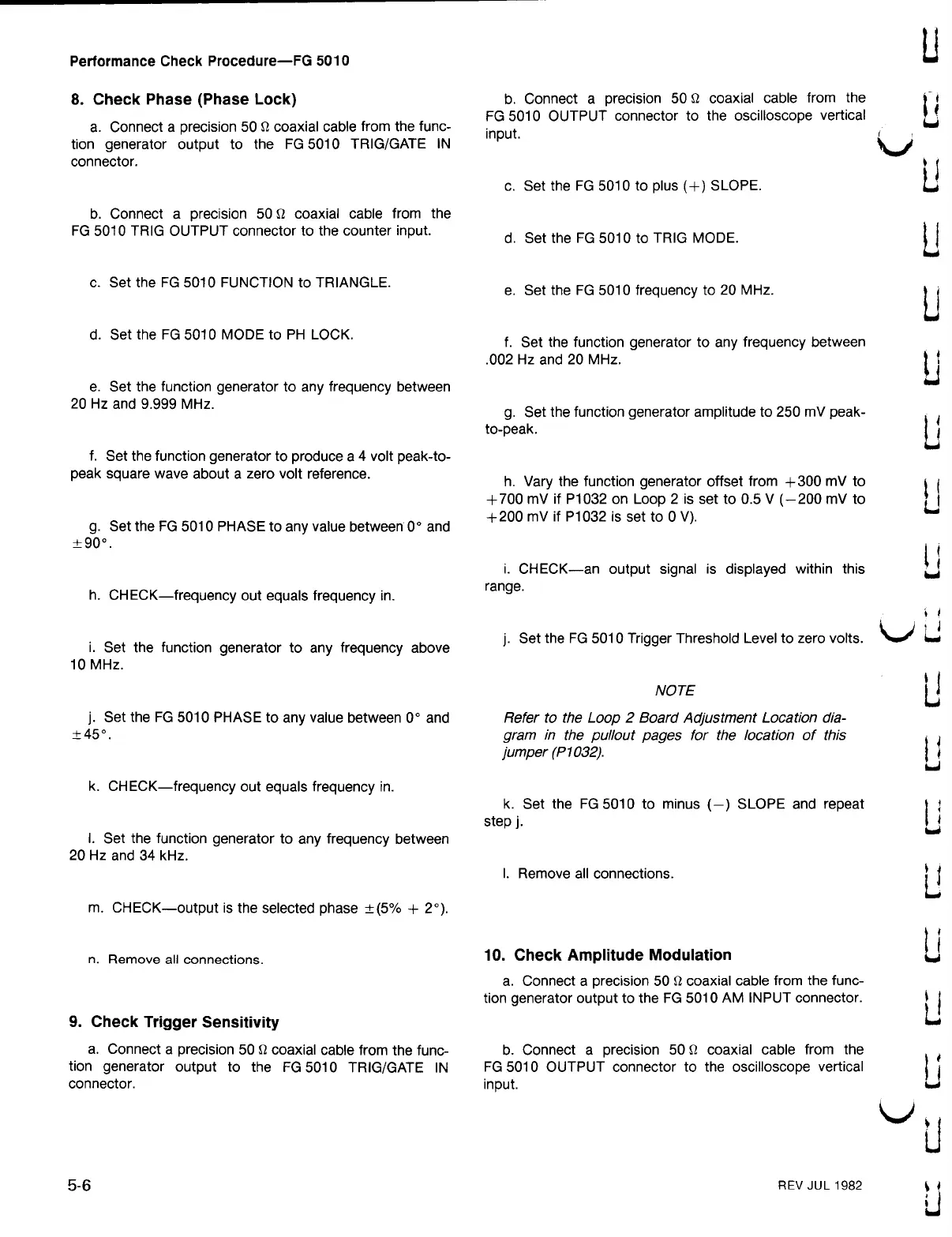

Performance Check Procedure - FG 5010
8.
Check
Phase (
Phase
Lock
)
a
. Connect
a precision
50 2
coaxial cable from
the func
tion
generator
output to
the FG
5010
TRIG
/
GATE IN
connector
.
b . Connect a precision 50 coaxial cable from the
FG 5010 TRIG OUTPUT connector to the counter input .
c . Set the FG 5010 FUNCTION to TRIANGLE .
d . Set the FG 5010 MODE to PH LOCK .
e . Set the function generator to any frequency between
20 Hz and 9.999 MHz .
f . Set the
function generator to
produce
a
4 volt peak -
to
peak
square
wave about a zero
volt
reference .
g . Set the FG 5010 PHASE to any value between ° and
+ 90 °
.
h .
CHECK -
frequency out
equals
frequency in .
i . Set
the
function
generator to
any
frequency
above
10 MHz .
j . Set the FG 5010 PHASE to any value between ° and
±
45 ° .
k .
CHECK -
frequency out
equals frequency in .
1. Set the function generator to any frequency between
20 Hz and
34 kHz .
m .
CHECK
-
output is the
selected
phase ±
( 5 % + 2 ° ) .
n . Remove all connections .
9.
Check
Trigger
Sensitivity
a . Connect a precision 50 № coaxial cable from the func
tion generator output to the FG 5010 TRIG / GATE IN
connector .
5-6
b
. Connect
a precision
50
coaxial cable from
the
FG 5010 OUTPUT connector to the oscilloscope vertical
input .
c . Set the FG 5010 to plus ( + ) SLOPE .
d . Set the FG 5010 to TRIG MODE .
e . Set the FG 5010 frequency to 20 MHz .
f . Set the function generator to any frequency between
.002 Hz and 20 MHz .
g . Set the function generator amplitude to 250 mV peak
to
-
peak
.
h . Vary the function generator offset from +300 mV to
+700 mV if P1032 on Loop 2 is set to 0.5 V ( –200 mV to
+200 mV if
P1032 is set to
V ) .
i . CHECK - an output signal is displayed within this
range .
j . Set the FG 5010 Trigger Threshold Level to zero volts .
NOTE
Refer to the Loop 2 Board Adjustment Location dia
gram in
the
pullout
pages for the
location of this
jumper ( P1032 ) .
k . Set the
FG 5010 to
minus ( - )
SLOPE
and
repeat
step
j .
I. Remove all connections .
10.
Check
Amplitude
Modulation
a . Connect a precision 50 M coaxial cable from the func
tion
generator
output to the
FG 5010 AM
INPUT
connector .
b . Connect a precision 50 coaxial cable from the
FG 5010 OUTPUT connector to the oscilloscope vertical
input .
REV JUL 1982
U
U
U
U
U
C
c
=
)
نأل
U
C
U
U
U
U
