Maintenance
-
FG
5010
7-6
A80
Sine
Shaper
A70
Loop
2
A60
Loop
1
A50
Output
Amplifier
A40
Display
Driver
A30
CPU

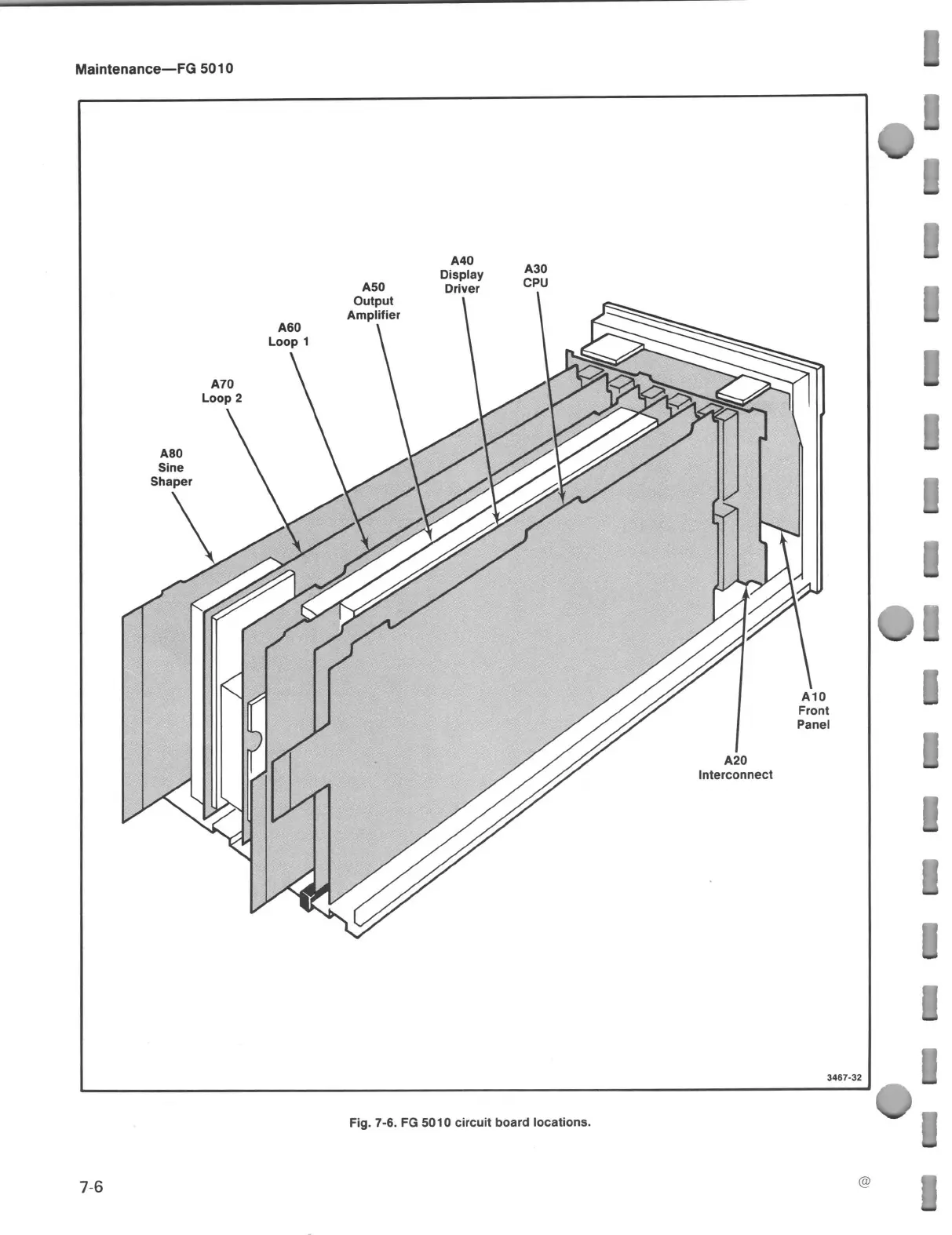

Fig
.
7-6
.
FG
5010
circuit
board
locations
.
A20
Interconnect
A
10
Front
Panel
3467-32
