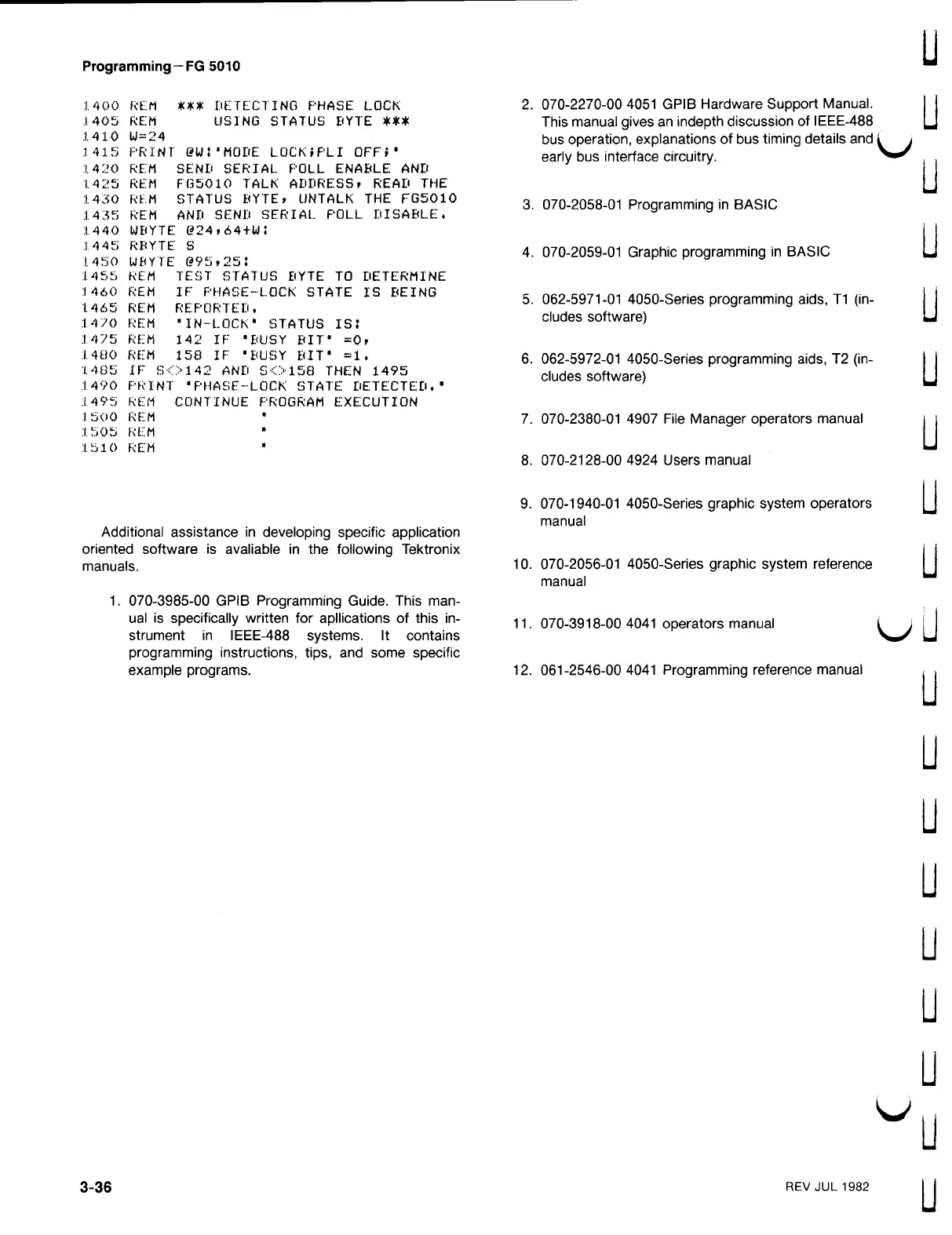

Tektronix FG 5010 User Manual

Programming -
FG
5010
1400 REM
*** DETECTING PHASE LOCK
1405 REM
USING STATUS BYTE ***
1410 W = 24
1415 PRINT @W : ' MODE LOCK PLI OFF ; '
1420 REM SEND SERIAL FOLL ENABLE AND
1425
REM FG5010 TALK ADDRESS , READ THE
1430
REM
STATUS BYTE
,
UNTALK
THE
FG5010
1435
REM
AND SEND SERIAL POLL DISABLE .
1440 WBYTE @ 24,64 + W :
1445 RBYTE S
1450 WBYTE @ 95,25 :
1455 REM TEST STATUS BYTE TO DETERMINE
1460 REM
IF PHASE - LOCK STATE IS BEING
1465 REM
REPORTED
.
1470 REM
" IN - LOCK ' STATUS IS :
1475 REM 142 IF BUSY BIT = ,
1480 REM 158 IF
BUSY BIT =
1 .
1485 IF SC142 AND S0158 THEN 1495
1490 PRINT ' PHASE - LOCK STATE DETECTED . '
1495 REM CONTINUE PROGRAM EXECUTION
1500
REM
1505 REM
1510 REM
#
[
Additional
assistance in
developing
specific
application
oriented software is avaliable in the following Tektronix
manuals .
3-36
1. 070-3985-00 GPIB Programming Guide . This man
ual is specifically written for apllications of this in
strument in
IEEE - 488
systems . It
contains
programming instructions , tips , and some specific
example
programs .
2. 070-2270-00 4051 GPIB Hardware Support Manual .
This
manual gives an
indepth
discussion of
IEEE - 488
bus
operation
, explanations
of bus
timing details and
early bus interface circuitry .
3. 070-2058-01 Programming in BASIC
4. 070-2059-01 Graphic programming in BASIC
5.
062-5971-01
4050
-
Series
programming
aids , T1 ( in
cludes software )
6.
062-5972-01 4050 -
Series
programming aids , T2 ( in
cludes
software )
7. 070-2380-01 4907 File Manager operators manual
8. 070-2128-00 4924 Users manual
9.
070-1940-01 4050 -
Series
graphic
system
operators
manual
10. 070-2056-01 4050 - Series graphic system reference
manual
11. 070-3918-00 4041 operators manual
12. 061-2546-00 4041 Programming reference manual
REV JUL 1982
