Theory
of
Operation
-
FG
5010
DATA
FREQ
CONTROL
VOLTAGE
DATA
4-10
SYM
GAIN
10
BIT
10
BIT
UP
SYM
DAC
ON
SYM
DAC
V
UP
UP
SYMMETRY
DAC
DOWN
SYMMETRY
OAC
VON
tracking
between
this
circuit
and
the
Down
Symmetry
DAC
.
Current
through
the
digitally
-
selected
ladder
resistors
is
ap
plied
to
the
inverting
input
of
U1521
.
Feedback
for
the
circuit
is
provided
by
way
of
R1521
and
the
resistance
internal
to
U1511
.
The
resulting
output
of
the
stage
is
a
dc
voltage
that
is
a
digitally
-
selected
fraction
of
the
applied
frequency
con
trol
voltage
.
Up
Sym
Ofst
adjustment
R1537
is
initially
adjusted
for
zero
voltage
at
pin
3.
Up
Cur
Ofst
adjustment
is
set
for
zero
voltage
at
pin
6
of
U1521
with
a
zero
word
applied
to
the
programmable
DAC
.
Finally
,
R1537
is
adjusted
for
zero
col
lector
current
from
Q1433
.
Up
Ramp
Current
Source
UP
This
circuit
converts
the
V
voltage
from
the
Up
Sym
metry
DAC
to
the
current
that
charges
the
Loop
Capacitor
stage
when
the
triangle
wave
is
rising
positive
.
The
circuit
consists
of
amplifier
U1421
,
transistor
Q1433
,
and
related
components
.
The
circuit
is
an
operational
amplifier
that
uses
R1438
as
the
principal
feedback
element
.
Any
change
in
voltage
applied
to
R1532
,
the
input
resistance
,
is
inverted
at
the
output
of
U1421
and
causes
a
change
in
current
through
Q1433
.
The
output
from
the
collector
of
Q1433
is
a
current
that
is
fed
to
the
Transistor
Bridge
circuit
to
be
switched
in
or
out
of
the
Loop
Capacitor
charge
path
.
Up
Current
Null
+
V
IUP
TRANSISTOR
BRIDGE
-V
UP
RAMP
CURRENT
SOURCE

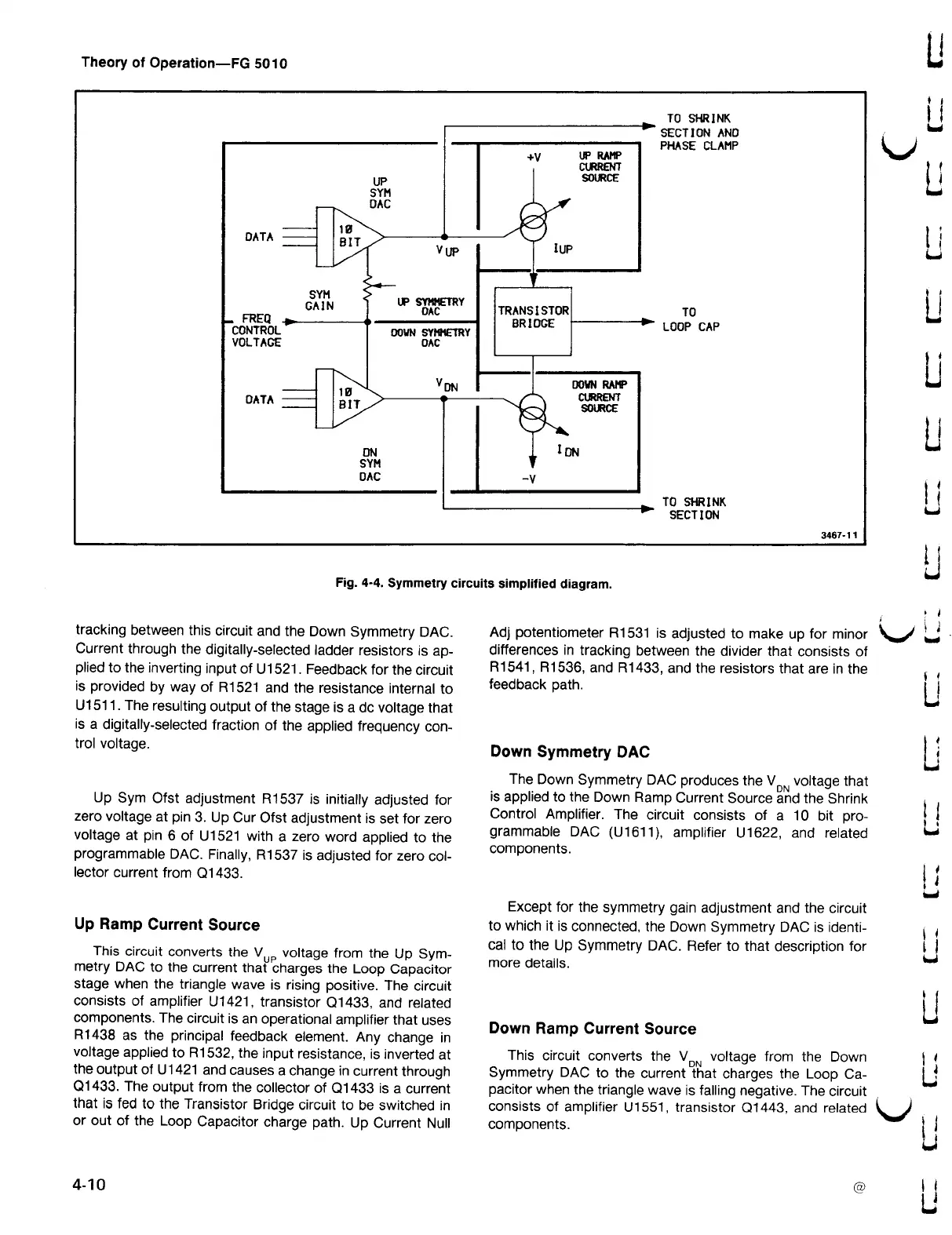

Fig
.
4-4
.
Symmetry
circuits
simplified
diagram
.
DOWN
RAMP
CURRENT
SOURCE
ION
TO
SHRINK
SECTION
AND
PHASE
CLAMP
TO
LOOP
CAP
TO
SHRINK
SECTION
3467-11
Adj
potentiometer
R1531
is
adjusted
to
make
up
for
minor
differences
in
tracking
between
the
divider
that
consists
of
R1541
,
R1536
,
and
R1433
,
and
the
resistors
that
are
in
the
feedback
path
.
Down
Symmetry
DAC
The
Down
Symmetry
DAC
produces
the
V
voltage
that
is
applied
to
the
Down
Ramp
Current
Source
and
the
Shrink
Control
Amplifier
.
The
circuit
consists
of
a
10
bit
pro
grammable
DAC
(
U1611
)
,
amplifier
U1622
,
and
related
components
.
Except
for
the
symmetry
gain
adjustment
and
the
circuit
to
which
it
is
connected
,
the
Down
Symmetry
DAC
is
identi
cal
to
the
Up
Symmetry
DAC
.
Refer
to
that
description
for
more
details
.
Down
Ramp
Current
Source
DN
This
circuit
converts
the
V
voltage
from
the
Down
Symmetry
DAC
to
the
current
that
charges
the
Loop
Ca
pacitor
when
the
triangle
wave
is
falling
negative
.
The
circuit
consists
of
amplifier
U1551
,
transistor
Q1443
,
and
related
components
.
C
U
C
U
U
D
)
U
U
U
U
