Tektronix KEITHLEY 7700 User Manual

Model 7700 Multiplexer Module Instructions for use with DAQ6510
077144300 / April 2018 3
Equipment needed:
 Small flat-blade screwdriver
 Cable ties
To make connections to the 7700 module:
1. Make sure all power is discharged from the 7700 module.
2. Use a screwdriver to turn the access screw to unlock and open the cover.

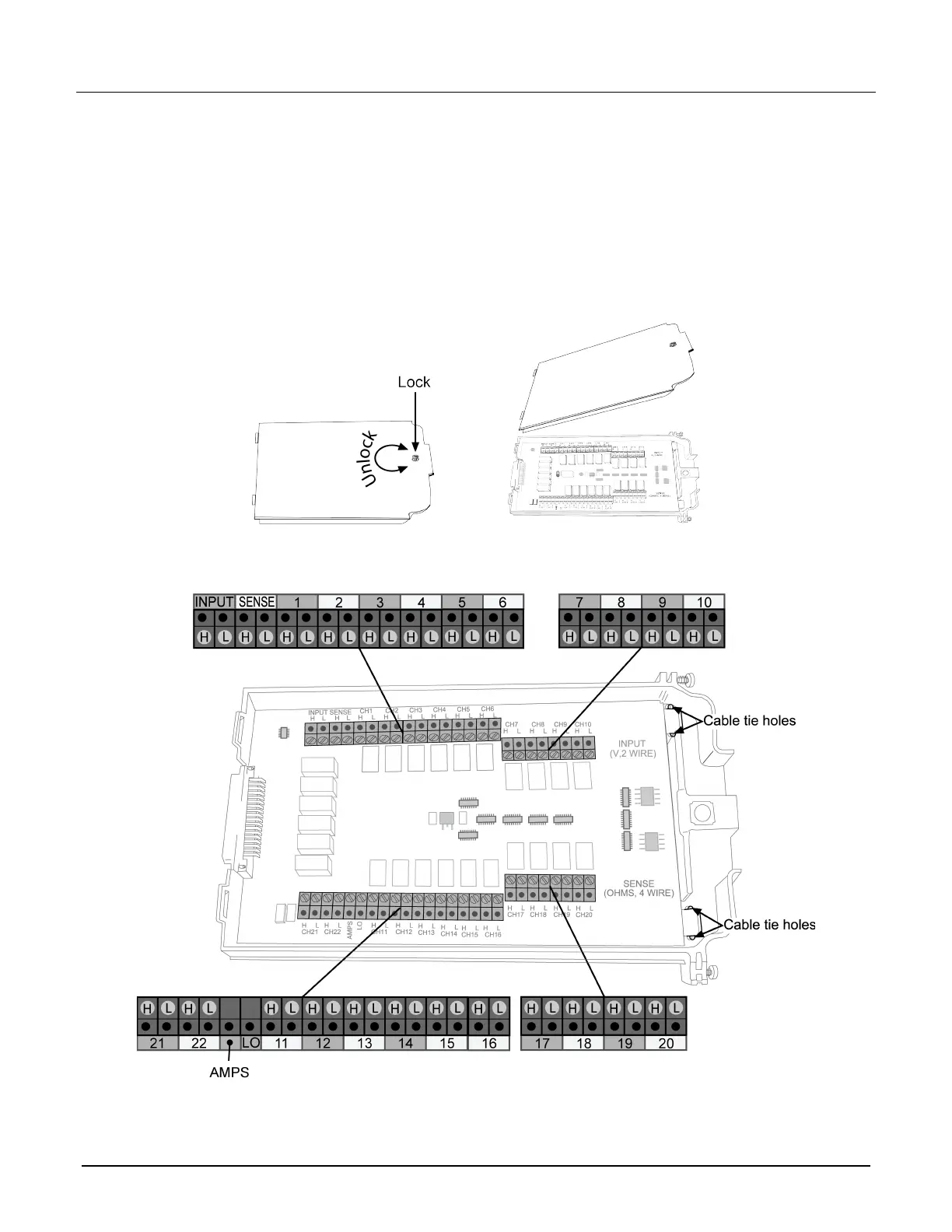

Figure 2: Screw terminal access
3. Use a small flat-blade screwdriver to loosen the terminal screws and install the wires as needed.
Figure 3: 7700 screw terminal channel designations

Tektronix KEITHLEY 7700 Specifications

General

Brand	Tektronix
Model	KEITHLEY 7700
Category	Multiplexer
Language	English
