Model 7700 Multiplexer Module Instructions for use with DAQ6510

4 077144300 / April 2018

4. Route wire along the wire path and secure with cable tie as shown. The next figure also shows connections

to channels 1 and 2.

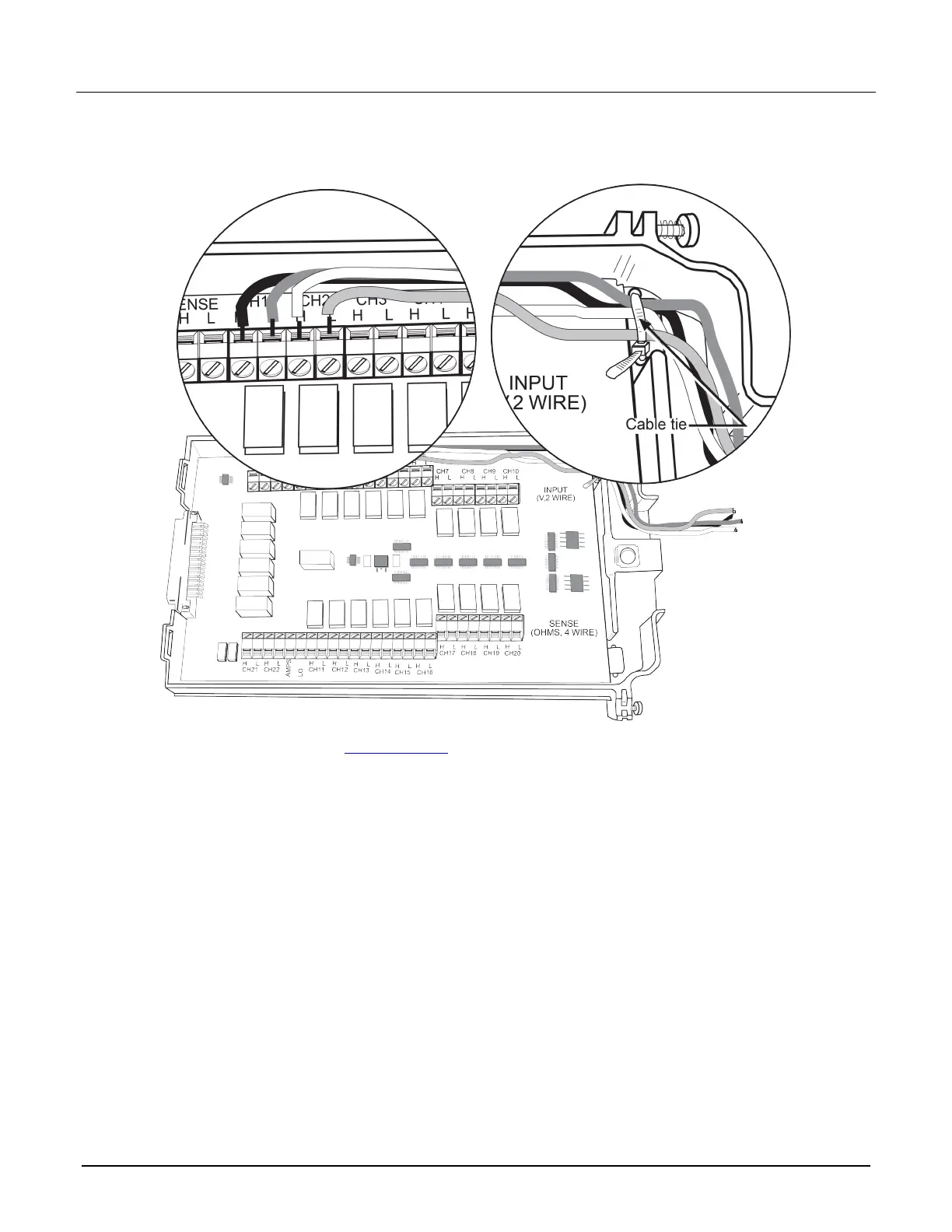

Figure 4: Wire dressing

5. Record the connections in the Connection log (on page 5).

6. Close the cover.

7. Use a screwdriver to press in the access screw and turn to lock the cover.
