Analyze Wavefor
morTraceData

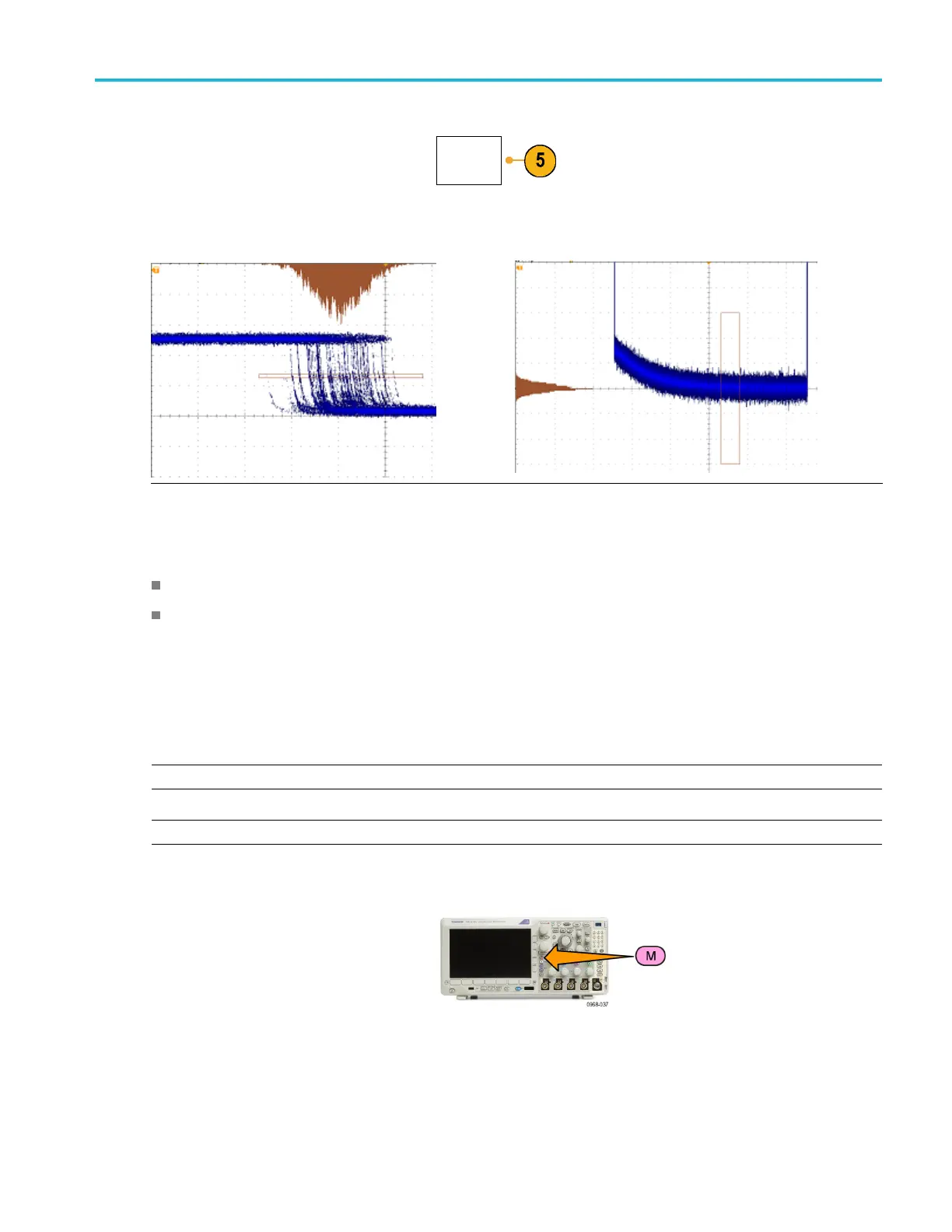

5. Push Reset Statistics on the side menu.
Reset
Statistics
You can view t
he histogram at the top (for horizontal histograms) or the left edge (for vertical histograms) of the graticule.
Quick Tip
s
Use horizontal histograms to measure signal jitter.
Use vertical histograms to measure signal noise.
Using Math Waveforms
Create
math waveforms to support the analysis of your channel and reference w aveforms. By combining and transforming
source waveforms and other data into math waveforms, you can derive the data view that your application requires.
NOTE. Math waveforms are not available for use with serial buses.
NOTE. Math functions are available when the instrument is operating in time-domain mode.
Use the following procedure for executing simple (+, –, x, ÷) math operations on two waveforms:
1. Push
Math.
MDO3000 Series Oscilloscopes User Manual 141
