Acquire the Signal

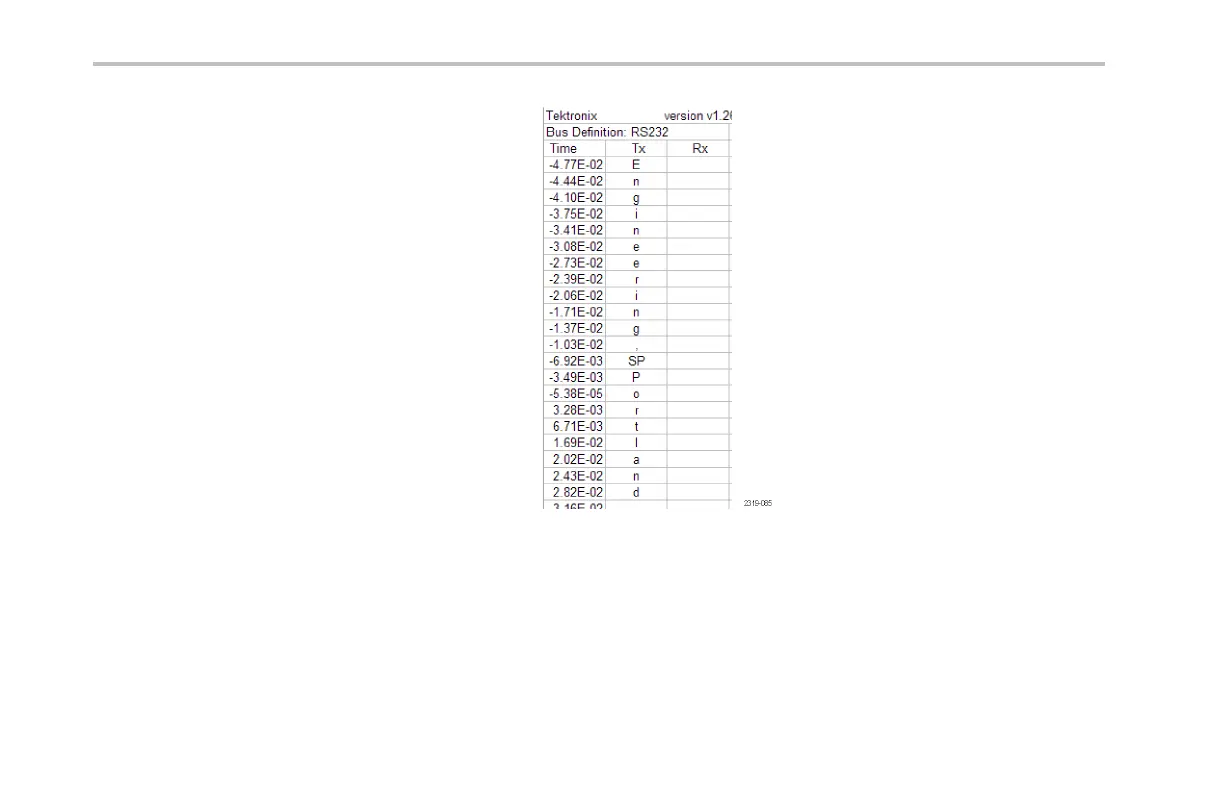

This example of an Event Table is from an
RS-232 bus.
RS-232 event tables display one line for each
7- or 8-bit byte whe n Packets are set to Off.
RS-232 event tables display one line for each
packet when Packets are set to On.
I
2
C, SPI, CAN, and LIN event tables display
one line for each packet.
9. Push B1 or B2 and turn multipurpo se knob a to
move the bus display up or down on the screen.
100 DPO2000 and MSO2000 S eries Oscilloscopes User Manual
