Trigger Setup
ParallelBusTriggerDataMatching
Optimum parallel b us trigger performance is achieved by using only analog channels or only digital channels (MSO2 000 series only).

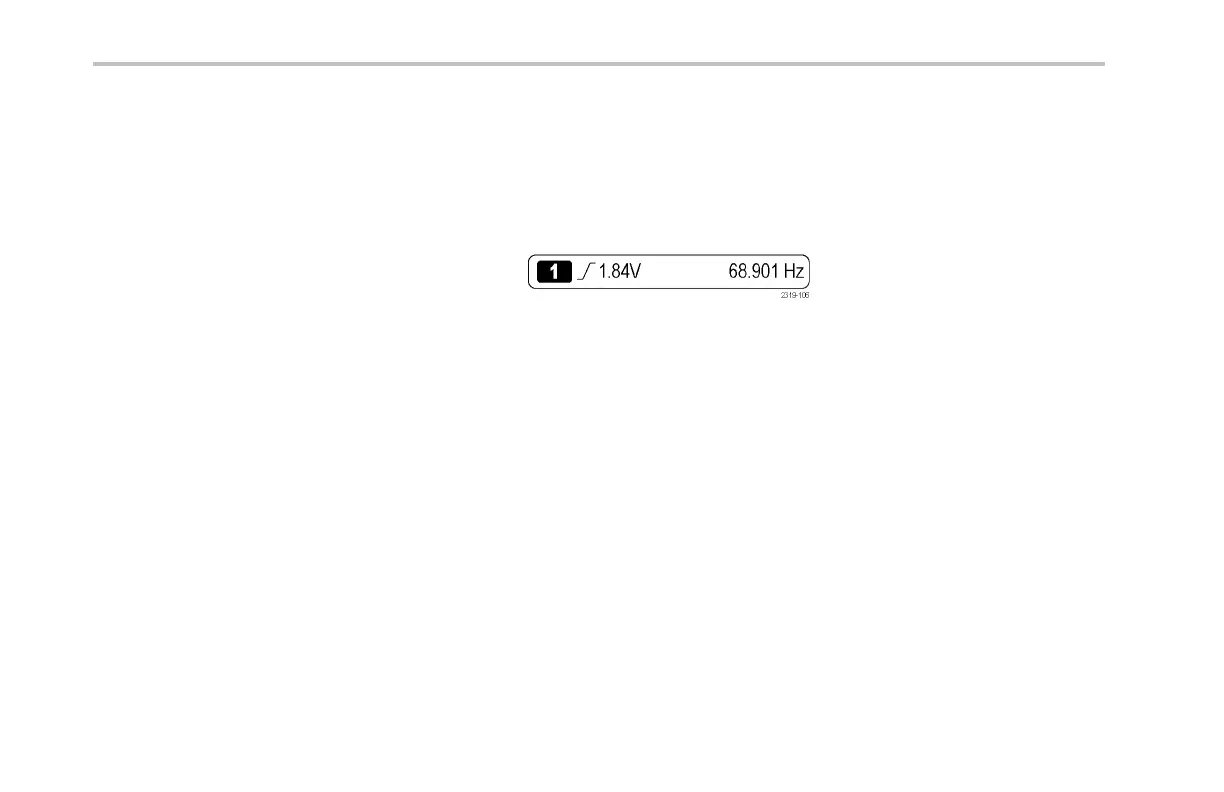

Checking Trigger Settings
To quickly determine the settings of some key
trigger parameters, check the Trigger reado ut
at t he bottom of the display. The readouts differ
for edge and the advanced triggers.
1. Trigger source = ch annel 1.
2. Trigger s lope = rising.
3. Trigger level = 1.84 V.
4. 6-Digit Trigger Frequency Readout =
68.901 Hz.
Edge trigger readout
144 DPO2000 and MSO2000 S eries Oscilloscopes User Manual
