Analyze Waveform Data
Using Wave Inspector to Manage Long Record Length Waveforms
The Wave Inspector controls (zoom/pan, play/ pause, marks, search) help you to efficiently wo rk with long record length wavefor m s.
To magnify a waveform horizontally, turn the Zoom knob (center knob). To scroll through a zoomed waveform, turn the Pan knob.

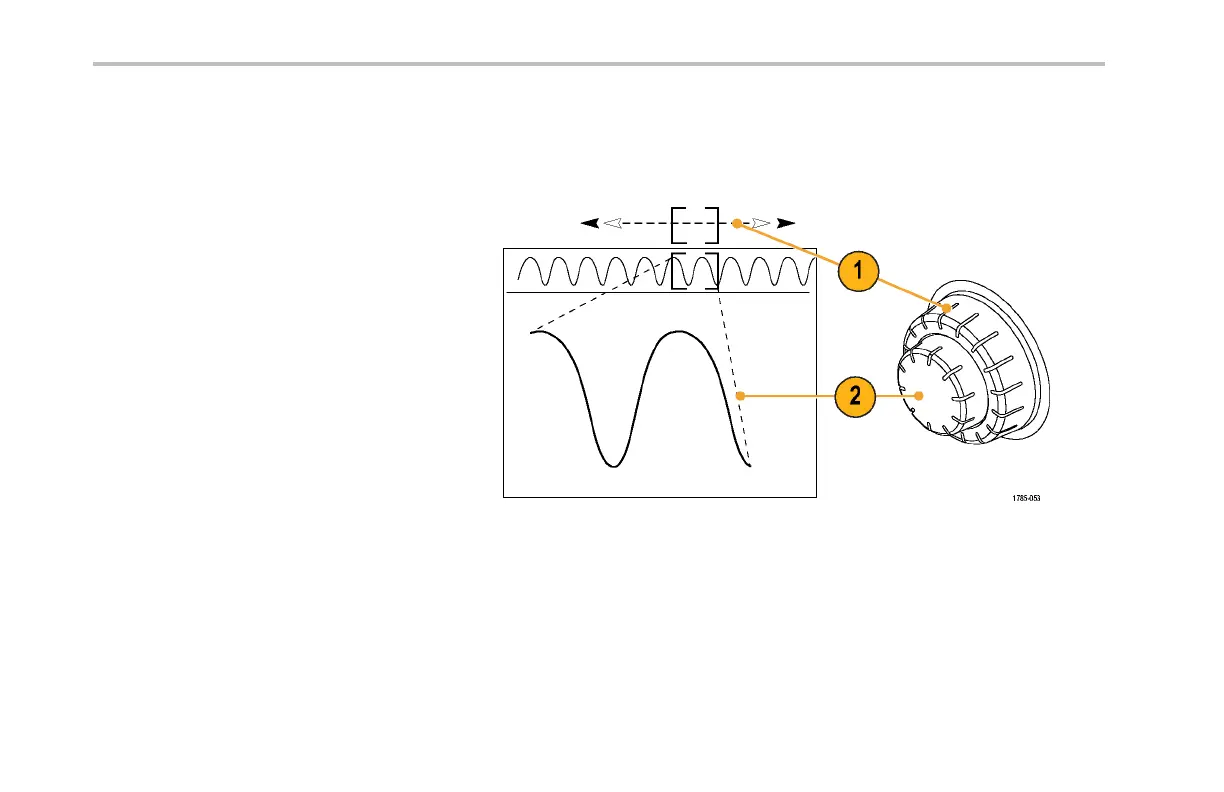

The P an-Zoom Control c onsists of:
1. An outer pan knob
2. An inner zoom knob
Zooming a Waveform
To use zoom:
198 DPO2000 and MSO2000 S eries Oscilloscopes User Manual
