Tektronix MSO2024 User Manual

Acquire the Signal

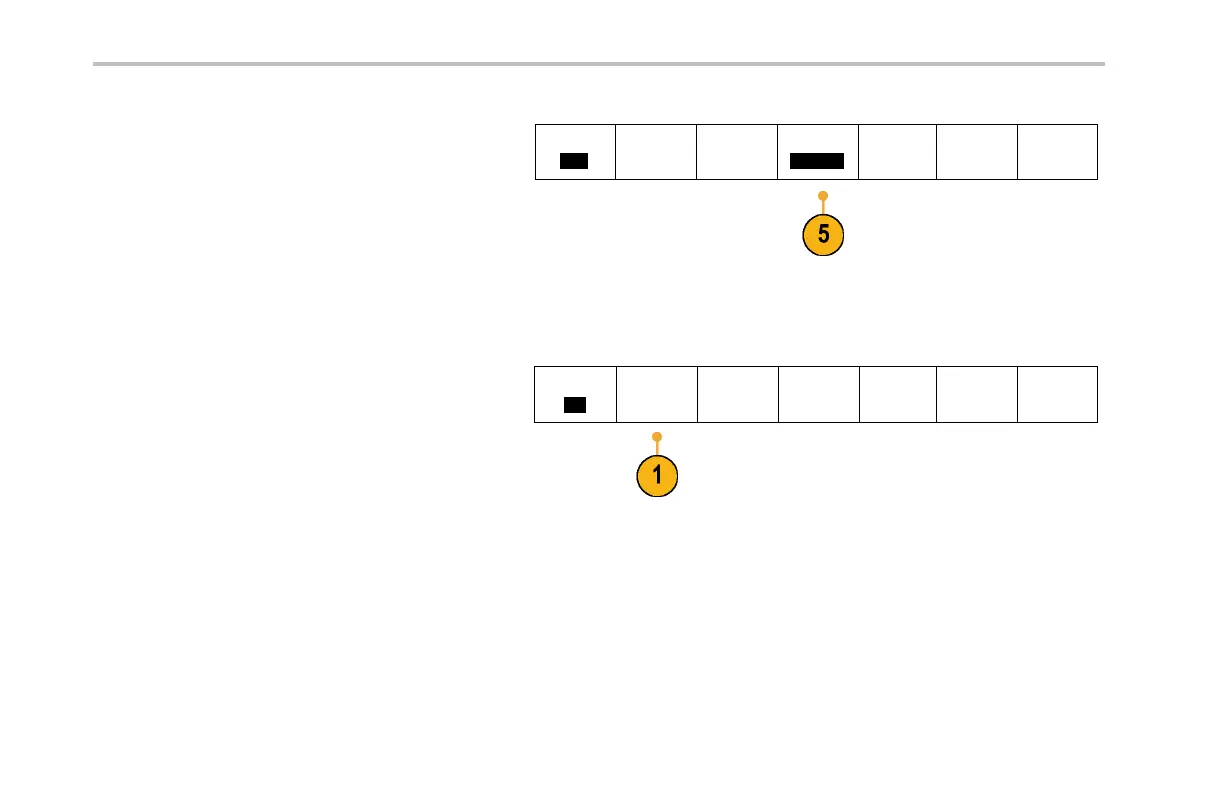

5. Push Bit Rate and turn multipurpose knob a to
select from the list of predefined bit rates.
Bus
CAN
Define
Inputs
Thresholds Bit Rate
500 Kbps
B1 Label
CAN
Bus Display Event Table
Alternately, you can set the bit rate to a specific
value. To do so, select Custom, and then turn
multipurpose knob b tosetthebitratefrom
10000 to 1000000.
To acquire data from a LIN bus, you need to also s et up these items:
1. If you selected LIN, push Define Inputs and
the desired side-bezel menu choices.
Bus
LIN
Define
Inputs
Thresholds
Configure
B1 Label
LIN
Bus Display Event Table
106 DPO2000 and MSO2000 S eries Oscilloscopes User Manual
