Display Waveform Data

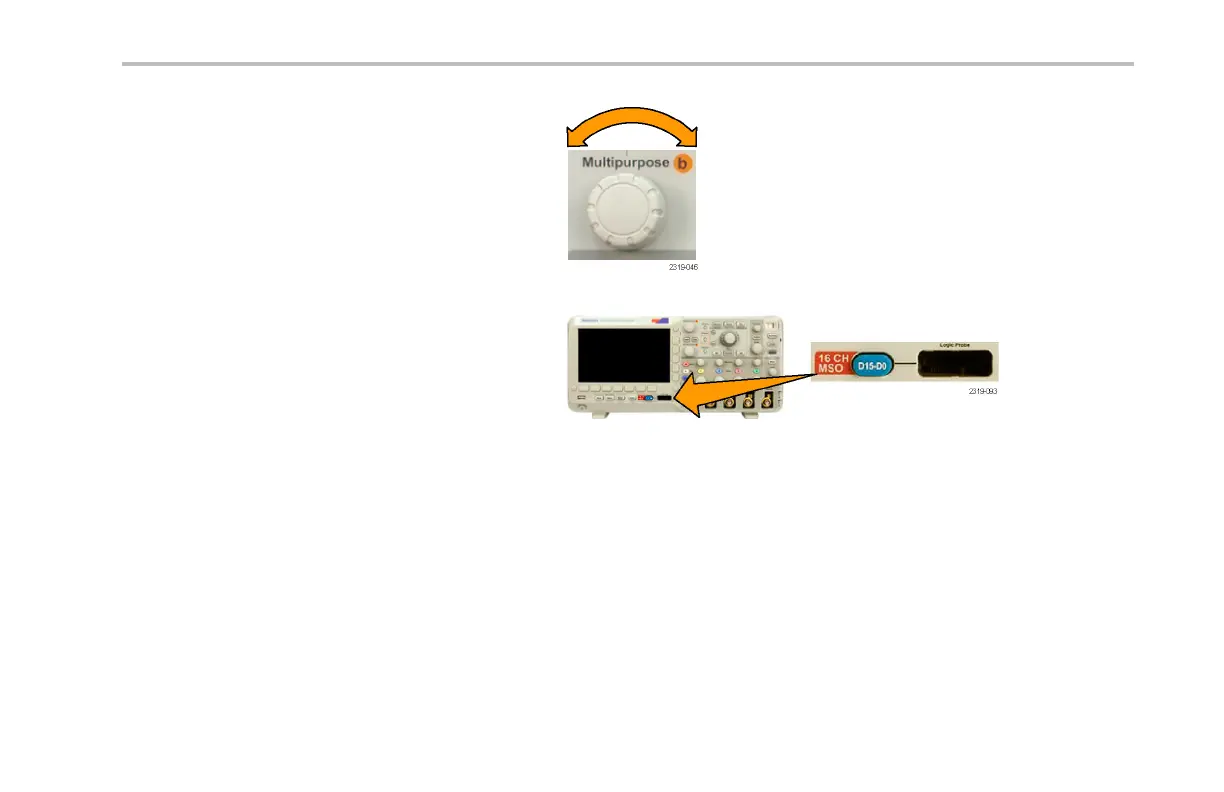

4. Turn multipurp ose knob b to move the selected
channel or group.
NOTE. The display of the channel (or group) only
moves after you stop rotating the knob.
To scale and label digital channe ls, follow these
steps:
1. Push the front-panel D15–D0 button.
DPO2000 and MSO2000 Series Oscilloscopes User Man ual 167
