Installation

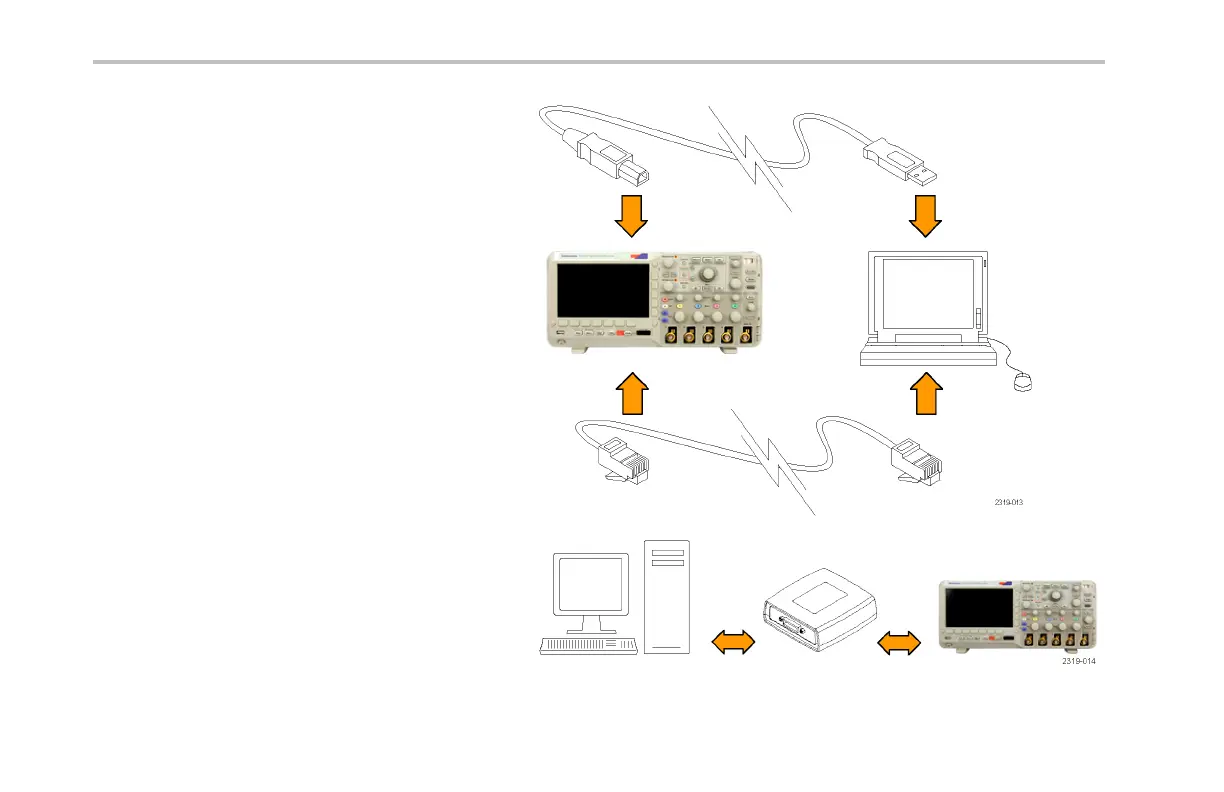

2. Connect the oscilloscope to your computer
with the appropr iate USB or Ethernet cable.
NOTE. You need a DPO2CONN module to make
the Ethernet connection.
To communicate between the oscilloscope and
a GPIB system, connect the oscilloscope to
the TEK-USB-488 GPIB-to-USB Adapter with
a USB cable. Then connect the ada pter to
your GPIB system with a GPIB cable. Cycle
the power on the oscillosco pe.
40 DPO2000 and MSO2000 Series Oscilloscopes User Manual
