Getting Acquainted with the Oscilloscope

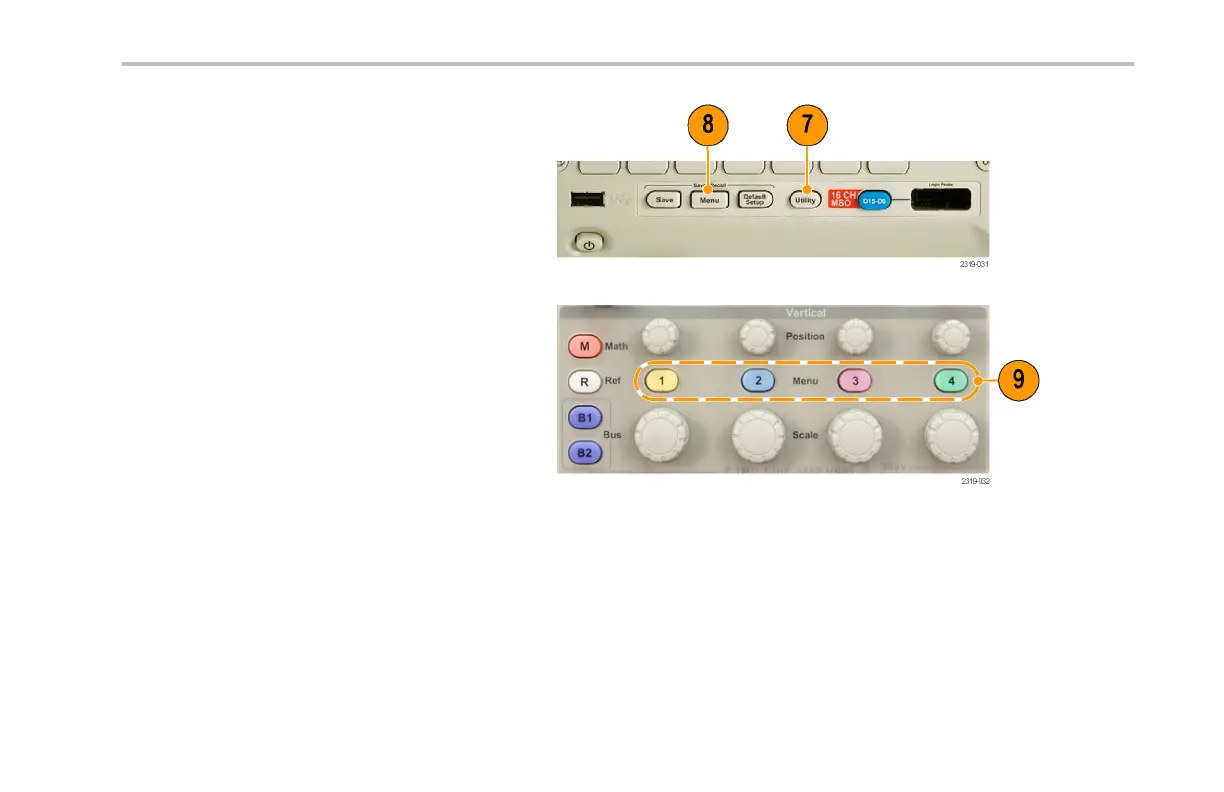

7. Utility. Push to activate the system utility
functions, such a s selecting a language or
setting the date/time.
8. Save / Recall Menu. Pushtosaveand
recall setups, waveforms, and screen
images to internal memory, or a USB flash
drive.
9. Channel 1, 2, 3,or4Menu. Push to set
vertical para meters for input waveforms
and to display or remove the corresponding
waveform from the display.
DPO2000 and MSO2000 Series Oscilloscopes User Man ual 53
