Getting Acquainted with the Oscilloscope

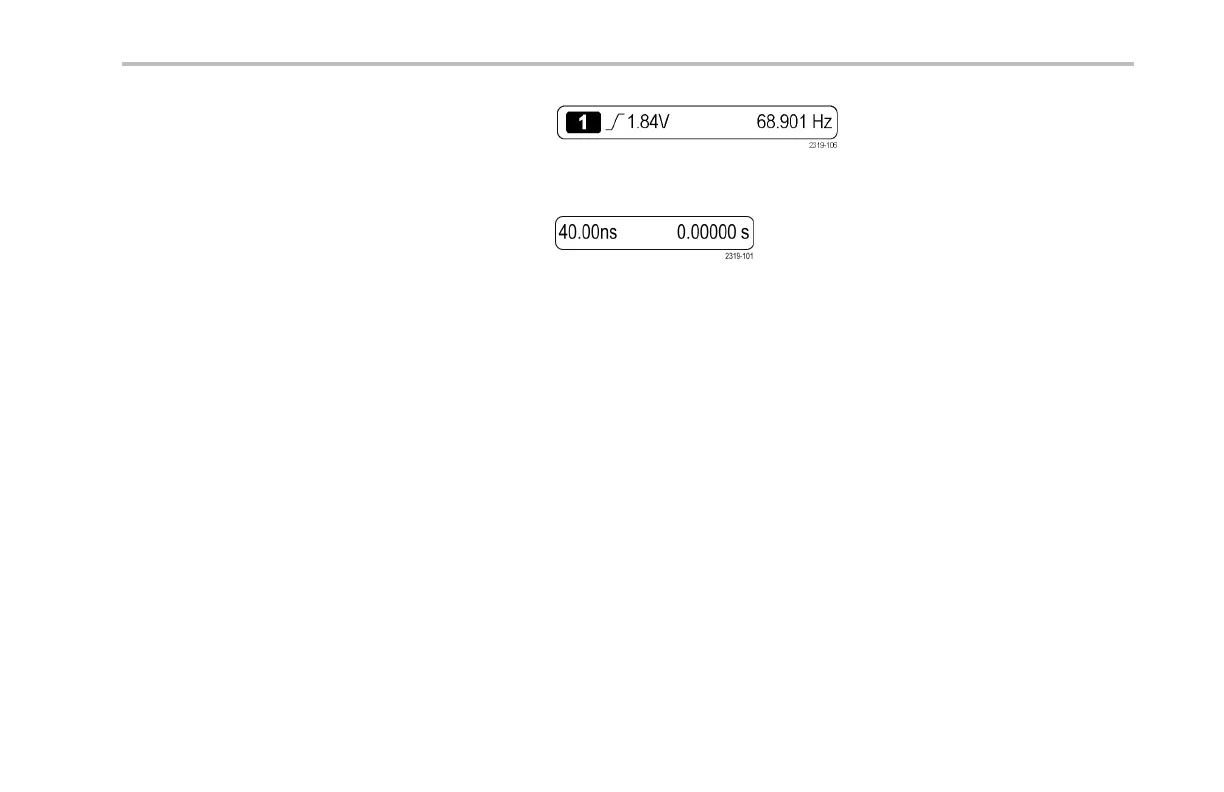

9. The trigger readout shows the trigger
source, slope, level, and frequency for an
Edge trigger. The trigger readouts for other
trigger types show other parameters.
10. The horizonta l position/scale readout
shows on the top line the horizontal scale
(adjust with the Horizontal Scale knob).
With Delay Mode on, the bottom line
shows the time from the T symbol to
the expansion point icon (adjust with the
Horizontal Position knob).
Use horizontal position to insert added
delay between when the trigger occurs and
when you actually capture the data. Insert
a negative time to capture more pretrigger
information.
With Delay Mode off, the bottom line
shows the time location of the trigger within
the acquisition, as a percentage.
DPO2000 and MSO2000 Series Oscilloscopes User Man ual 67
