Tektronix MSO5000 Series User Manual

Display a Wavefo
rm

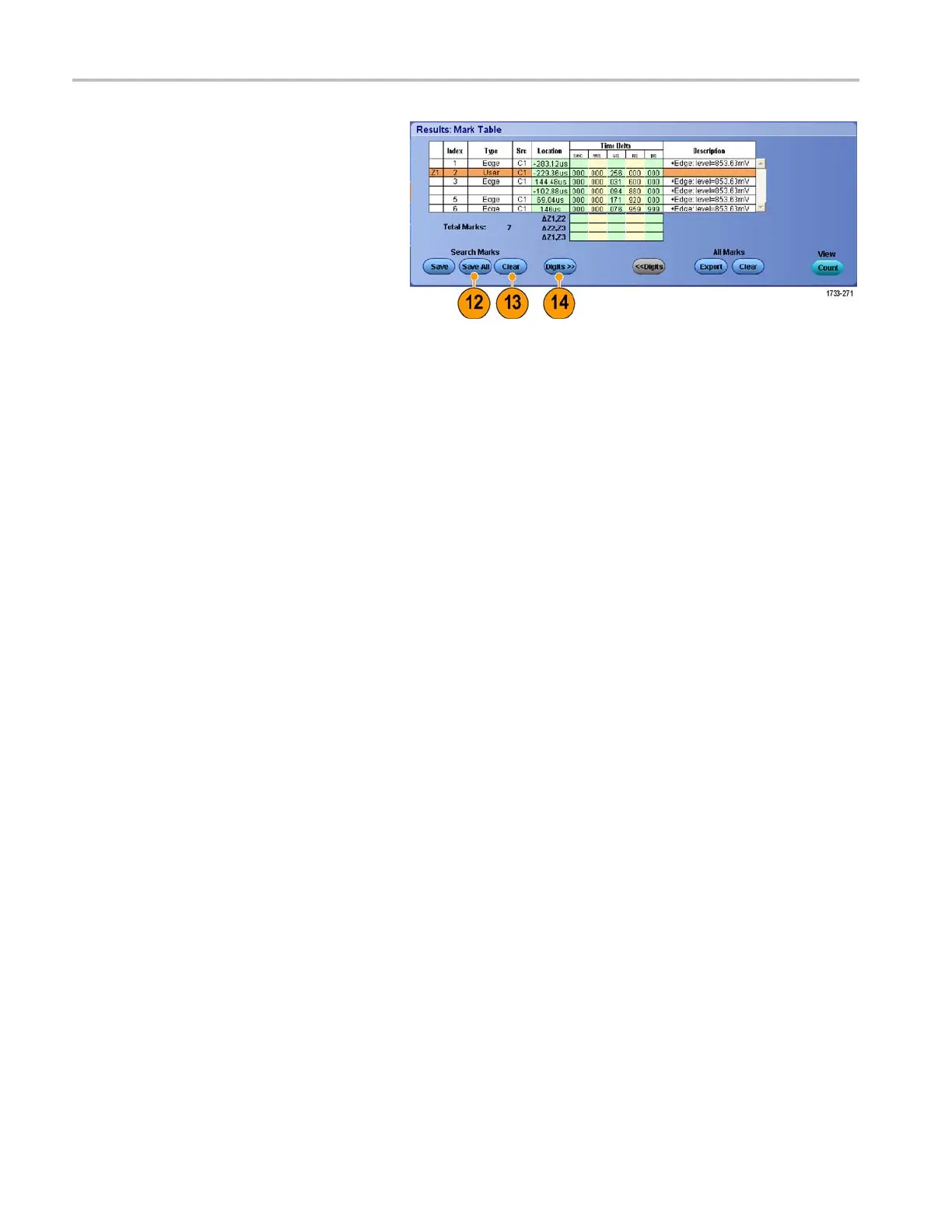

12. To convert a mar
korallmarkstouser
marks, press Search Marks Save or
Save All.
13. To remove the currently highlighted row
from the Mark T
able, press Search Marks
Clear.
14. To toggle between showing mark
locations in engineering notation or in
high precisi
on form, press Digits.
110 MSO70000/C, DPO/DSA70000B/C, DPO7000, and MSO /DP O5000 Series U ser M anual

Tektronix MSO5000 Series Specifications

General

Analog Channels	4
Operating Temperature	0 °C to +50 °C
Digital Channels	16 (MSO models)
Sample Rate (Analog)	6.25 GS/s
Record Length	125 Mpoints
Vertical Resolution	8 bits
Display	10.4-inch capacitive touchscreen
Connectivity	USB
Input Impedance	1 MΩ
Trigger Types	Edge, Pulse Width, Logic, Setup/Hold, Rise/Fall Time, Video
