Tektronix MSO5000 Series User Manual

Analyzing Wavef
orms
Customizing an Automatic Measurement
Customize automatic measurements by using gating, modifying measurement statistics, or adjusting the measurement
reference levels.

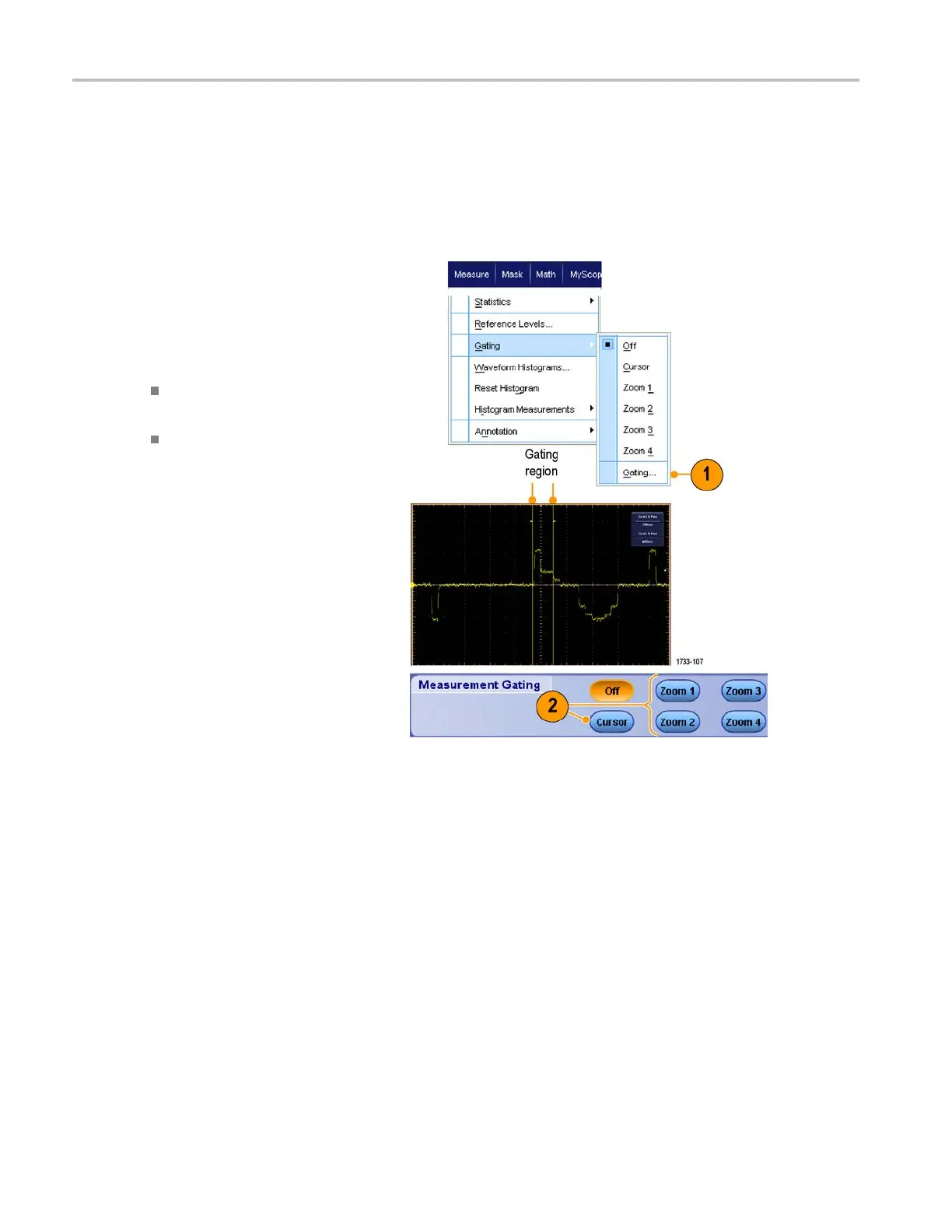

Gating
UseGatingtoconfine the measurement to a
certain part of a waveform.
1. Select Measure > Gating > Gating ....
2. Position the gates by doing one of the
following:
Click Cursor to set the gated area to
the area between the cursors.
Click Zoom (1-4) to set the gated
area to the Zoom (1-4) graticule.
118 MSO70000/C, DPO/DSA70000B/C, DPO7000, and MSO /DP O5000 Series U ser M anual
