Tektronix MSO5000 Series User Manual

Analyzing Wavef
orms

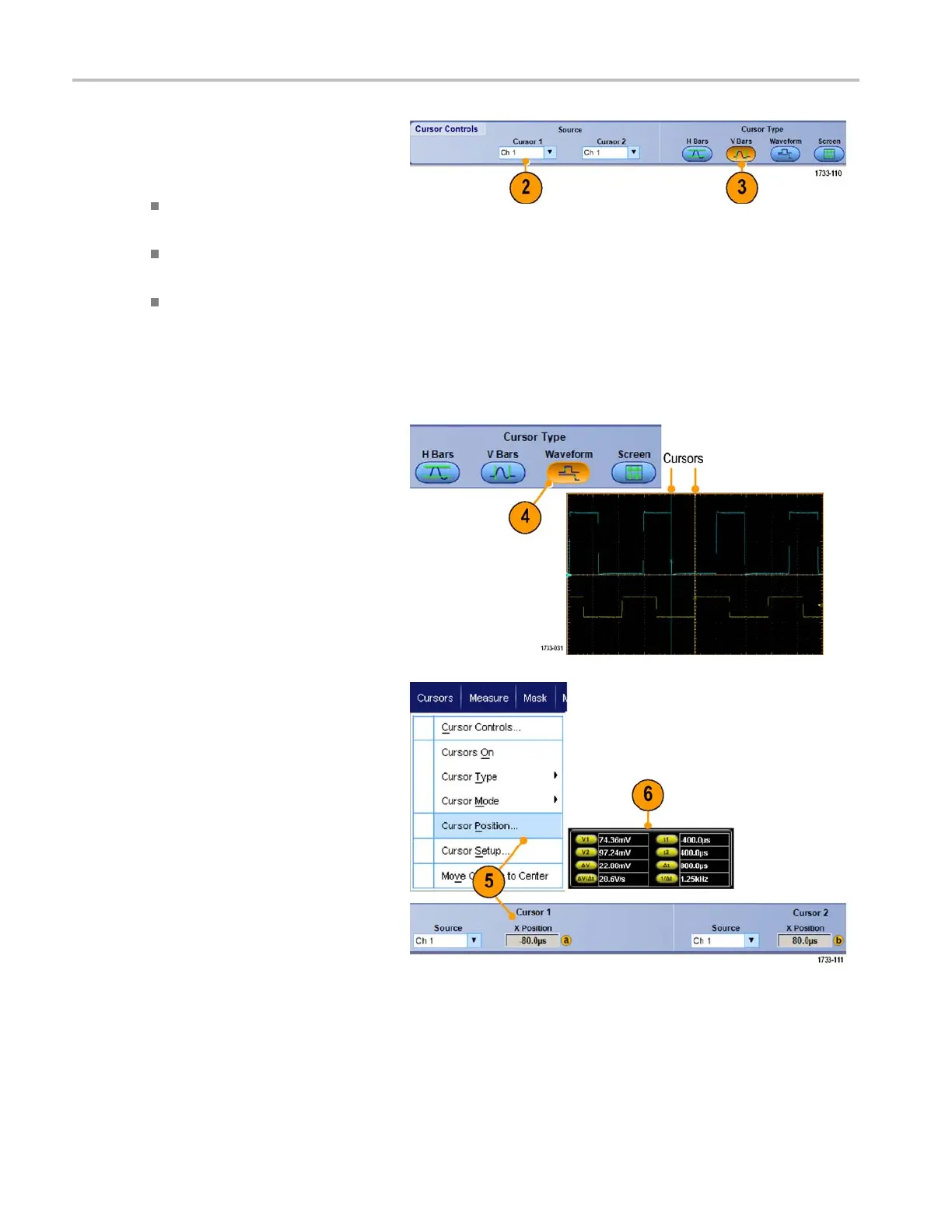

2. Select the Cursor Source.
3. Select a cursor type from one of the
following:
H Bars measure amplitude (typically
in volts or am
peres)
V Bars measur
e horizontal
parameters (typically time)
Waveform and screen cursors
measure vertical and horizontal
parameters
simultaneously.
Waveform cursors are attached to
the waveform, and screen cursors
float, unat
tached to the waveform.
4. To take measurements between two
waveforms
, select Waveform, and then
select the waveform source for each
cursor.
5. Select Cursors > Cursor Position...,
and then use the multipurpose knobs to
adjus
t the cursor position.
6. Read c
ursor measurement results in the
display.
122 MSO70000/C, DPO/DSA70000B/C, DPO7000, and MSO/DP O5000 Series U ser M anual
