Tektronix MSO5000 Series User Manual

Analyzing Wavef
orms

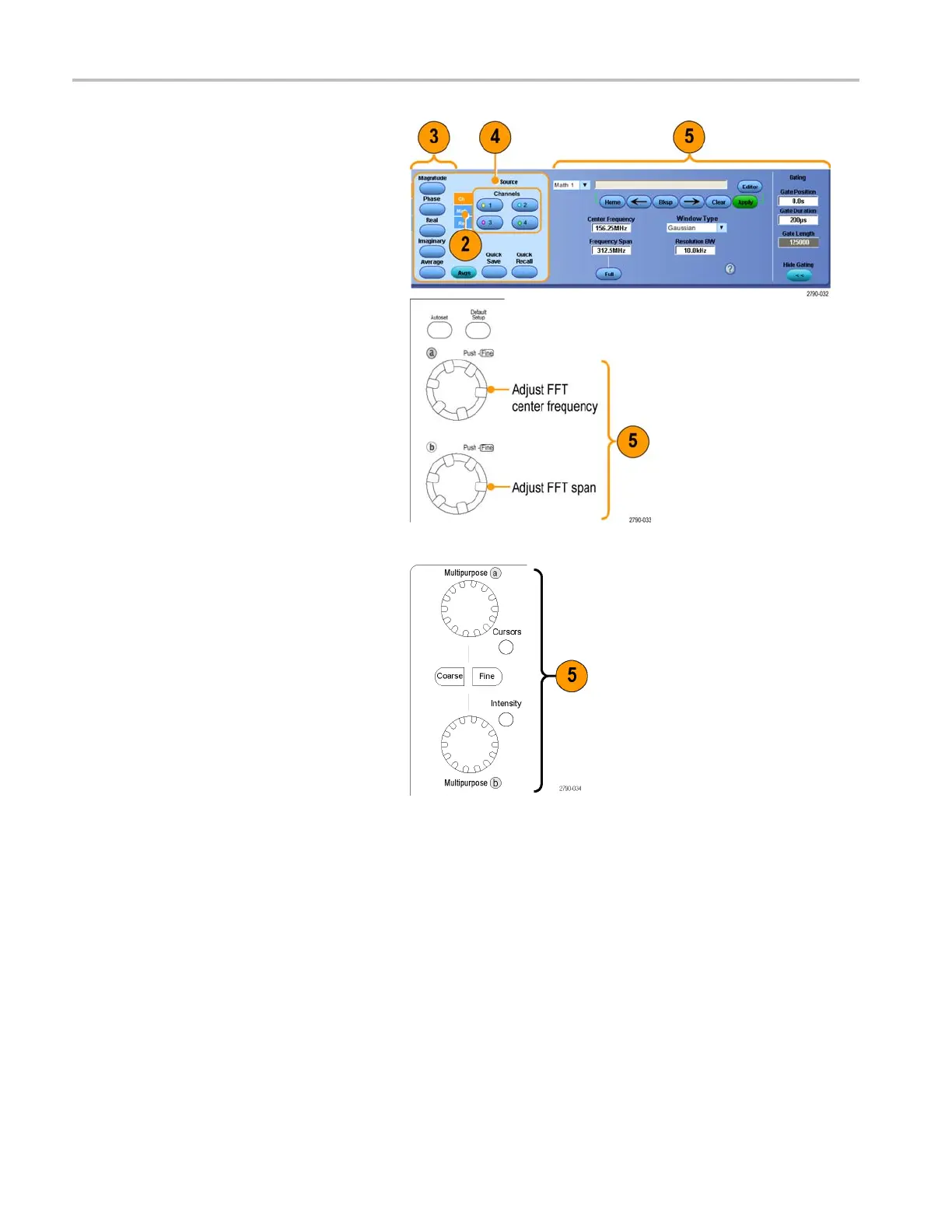

2. Select the math w aveform that you want
to define.
3. Click the type of spectral waveform
that you want t
o create. To redefine a
waveform, click Clear.
4. Select the source waveform.
5. Adjust the spectral waveform, using the
controls in the Spectral Setup control
window and u
se the multipurpose knobs.
MSO70000/C, DSA70000B/C , DPO70000B/C, and DPO7000 Series
MSO5000 and DPO5000 Series
130 MSO70000/C, DPO/DSA70000B/C, DPO7000, and MSO/DP O5000 Series U ser M anual

Tektronix MSO5000 Series Specifications

General

Analog Channels	4
Operating Temperature	0 °C to +50 °C
Digital Channels	16 (MSO models)
Sample Rate (Analog)	6.25 GS/s
Record Length	125 Mpoints
Vertical Resolution	8 bits
Display	10.4-inch capacitive touchscreen
Connectivity	USB
Input Impedance	1 MΩ
Trigger Types	Edge, Pulse Width, Logic, Setup/Hold, Rise/Fall Time, Video
