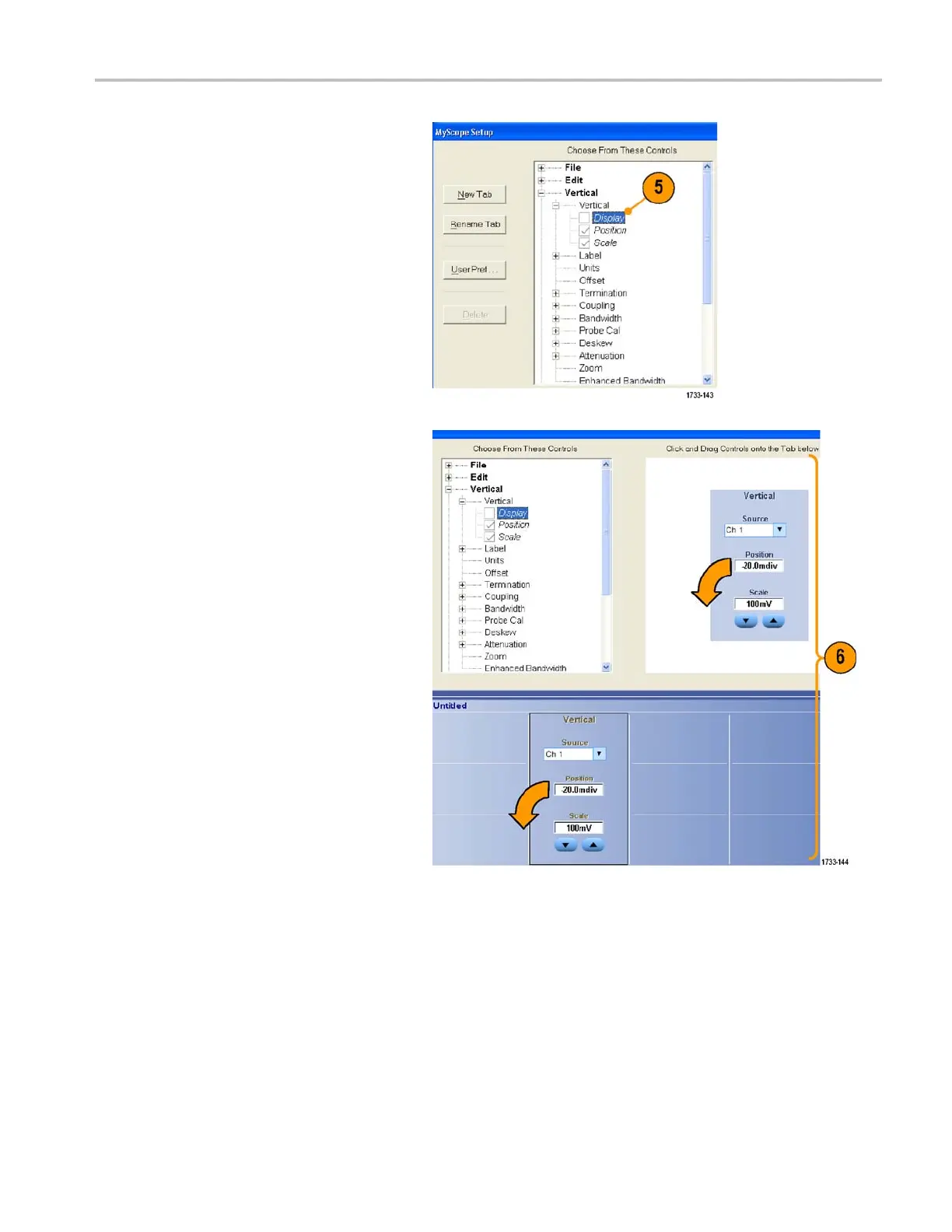

5. Clear the check boxes to remove any

components that you do not want

included in th

e control.

6. Click and drag the control to your

MyScope co

ntrol window. The control

will snap to the nearest grid location

when you release the mouse. Change

the place

ment of the control in your

MyScope control window by clicking and

dragging.

MSO70000/C, DPO/DSA70000B/C, DPO7000, and MSO/DP O5000 Series U ser M anual 139
