Tektronix MSO5000 Series User Manual

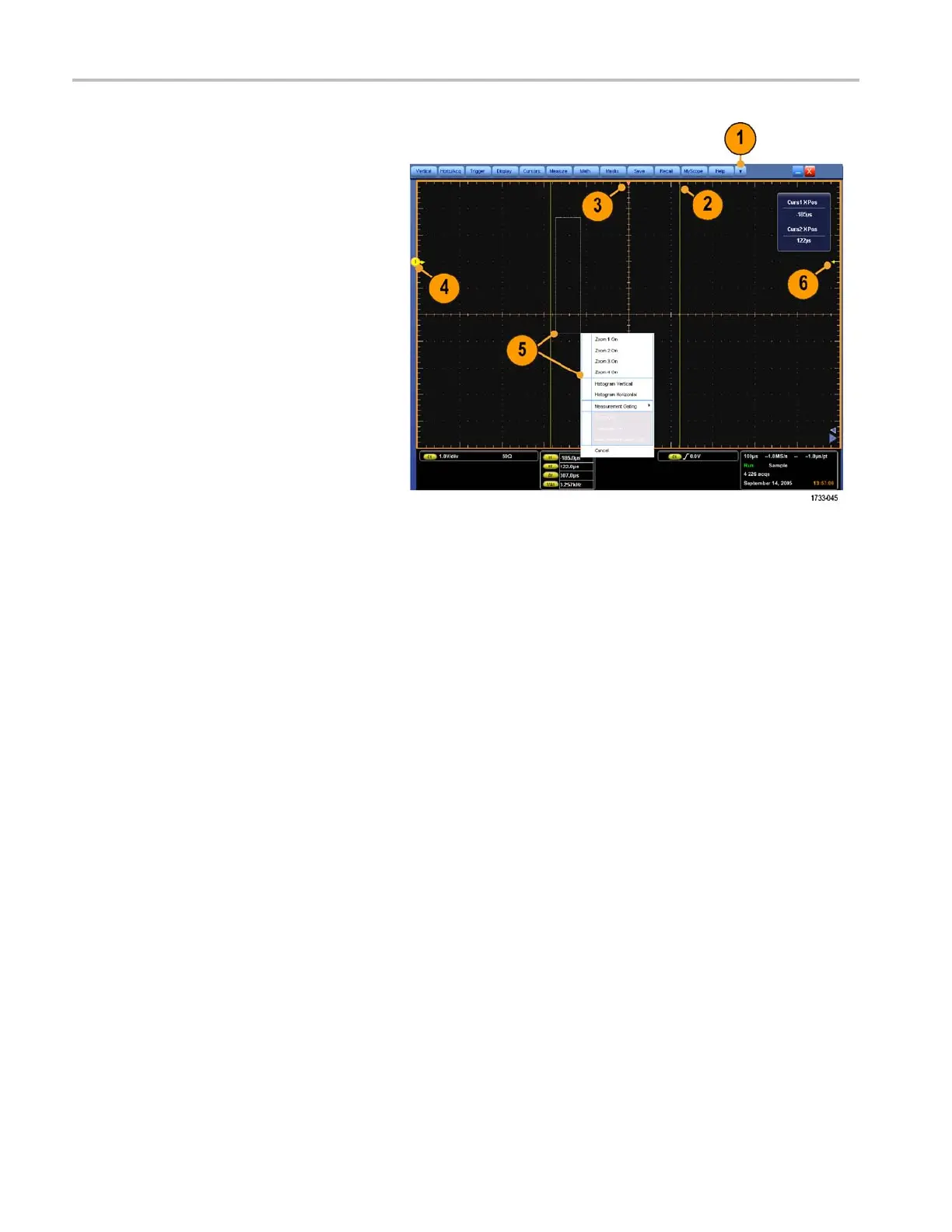

Getting Acquain
ted with Your Instrument
1. Buttons/Menu: Click to toggle between
toolbar and menu bar modes and to
customize the
toolbar
2. Drag cursors t
o measure waveforms on
screen
3. Drag the position icons to reposition a
waveform
4. Click the icon to assign the multipurpose
knobs to wave
form vertical position and
scale
5. Drag across the waveform area to create
a box for zooming, enabling/disabling
histograms
, and gating measurements
6. Drag icon t
o change the trigger level
22 MSO70000/C, DPO/DSA70000B/C, DPO7000, and MSO/DP O5000 Series U ser M anual
