Acquisition

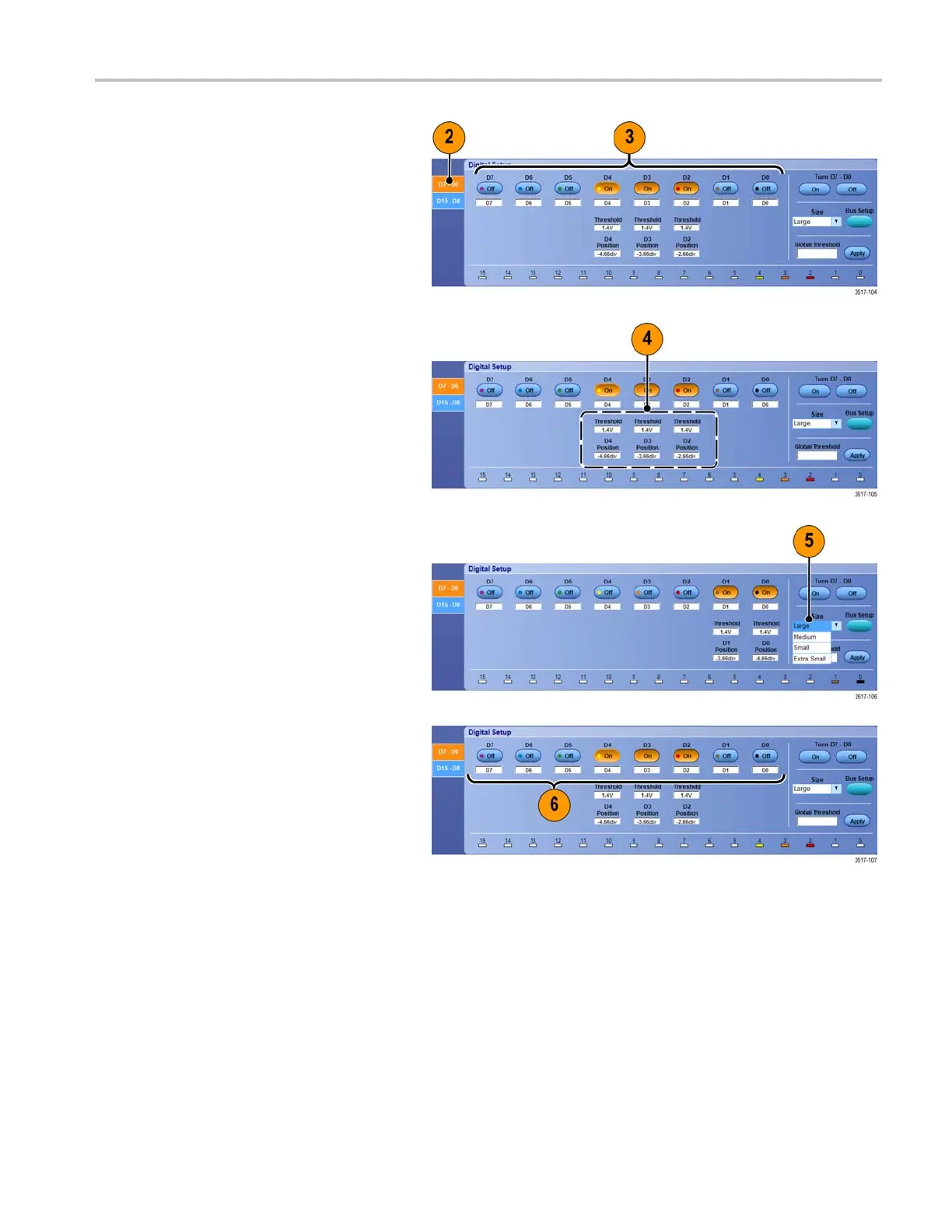

2. Select the D7 - D0 or D15 - D8 tab for
the digital channels you want to set up.
3. Click a digital channel button to toggle
the display of
the digital channel on or off.
4. Click Thres
hold or Position and adjust
them using the keyboard or multipurpose
knobs. Or, s et the threshold of all 16
channels b
y entering a Global Threshold
value and clicking Apply.
5. To change the displayed vertical size of
all digit
al channels, click Size and select
the display siz e from the list.
6. To chan
ge a digital channel label, click
the label and enter a new label using the
keyboard.
MSO70000/C, DPO/DSA70000B/C, DPO7000, and MSO/DP O5000 Series U ser M anual 49
