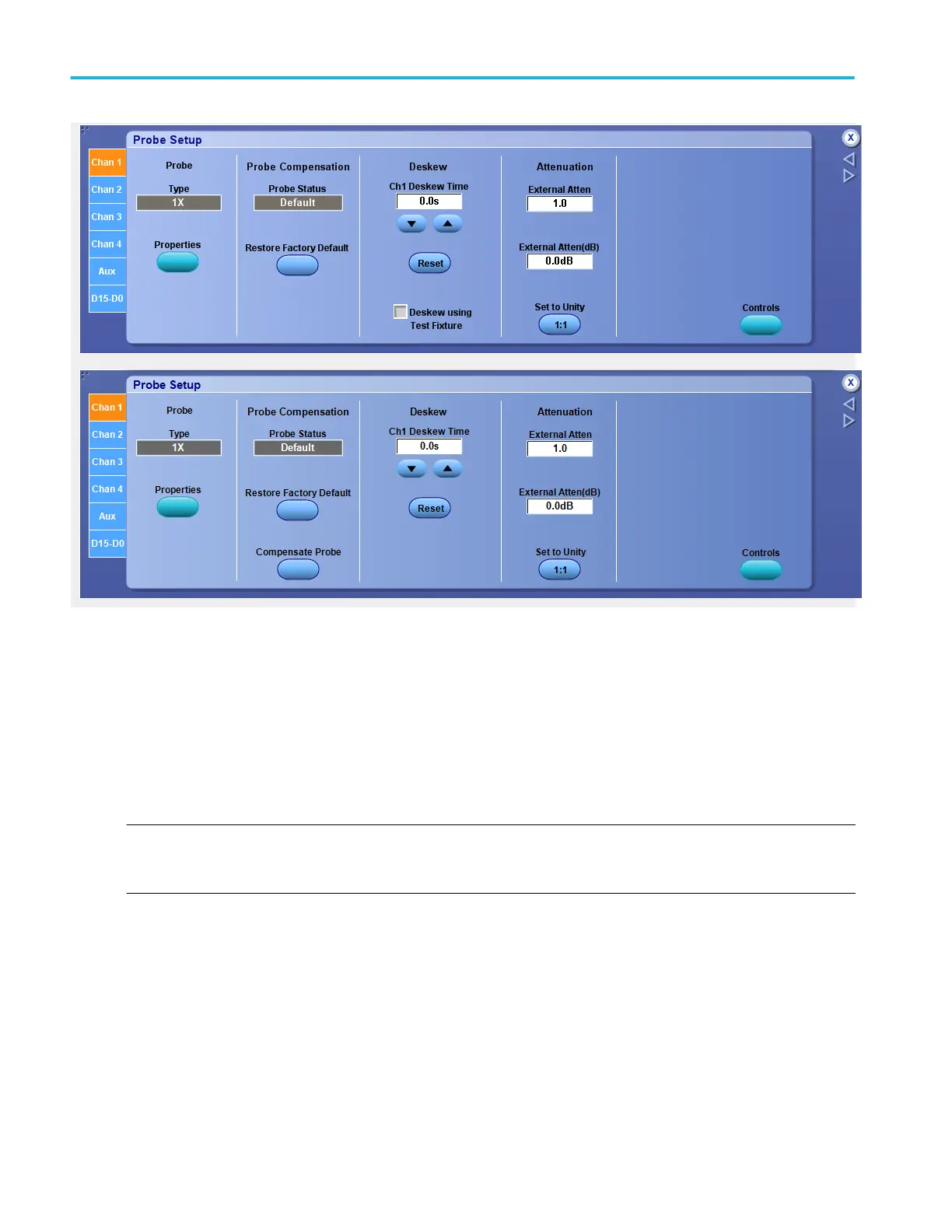

For information on the Probe Setup controls, click the buttons.

■

Compensation

■

Status

■

Deskew

■

Attenuation

■

Type

NOTE. The Probe Status control indicates the status of probe compensation for the selected channel. If the probe status does

not indicate Pass, the instrument may not take accurate measurements. You may want to perform the probe compensation

procedure before taking any measurements with the selected probe.

In addition to the probe setup above, it is recommended that you do the following to assure measurement quality:

■

Use the correct probe tip for your probe. This will ensure that the correct bandwidth filter is applied and performance is

extended to the probe tip.

■

Use the Probe Compensation procedure to compensate passive probes. This will ensure maximum distortion-free inputs to

the instrument and avoid high frequency amplitude errors.

■

Use the Signal Path Compensation procedure to compensate the internal signal path used to acquire waveforms based on

the ambient temperature.
