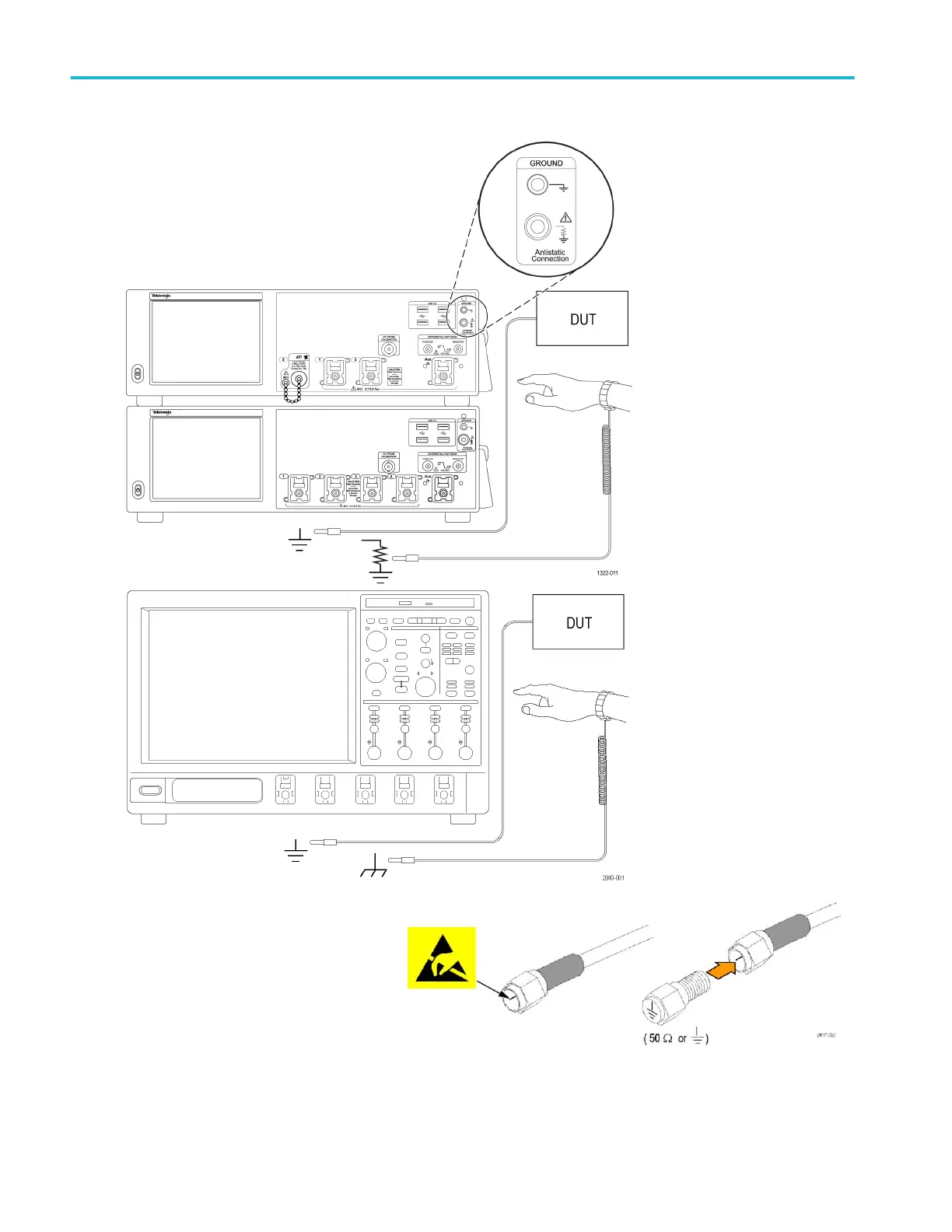

2. A cable that is left unconnected on a

bench, or carried across a room, can

develop a large static charge. Discharge

the static voltage from all cables before

connecting them to the instrument or

device under test by momentarily

grounding the center conductor of the

cable, or by connecting a 50 Ω

termination to one end, before attaching

the cable to the instrument.

About Tektronix oscilloscopes

34 DPO70000SX, MSO/DPO70000DX, MSO/DPO70000C, DPO7000C, and MSO/DPO5000B Series

Default Chapter5
- Table of Contents5
- Introduction31
About Tektronix Oscilloscopes33
- Product Description33
- Product Software36
- Options and Accessories36
  - Recommended Accessories36
  - Options42
- Documentation and Technical Support47
