Getting Acquain
ted with Your Instrument

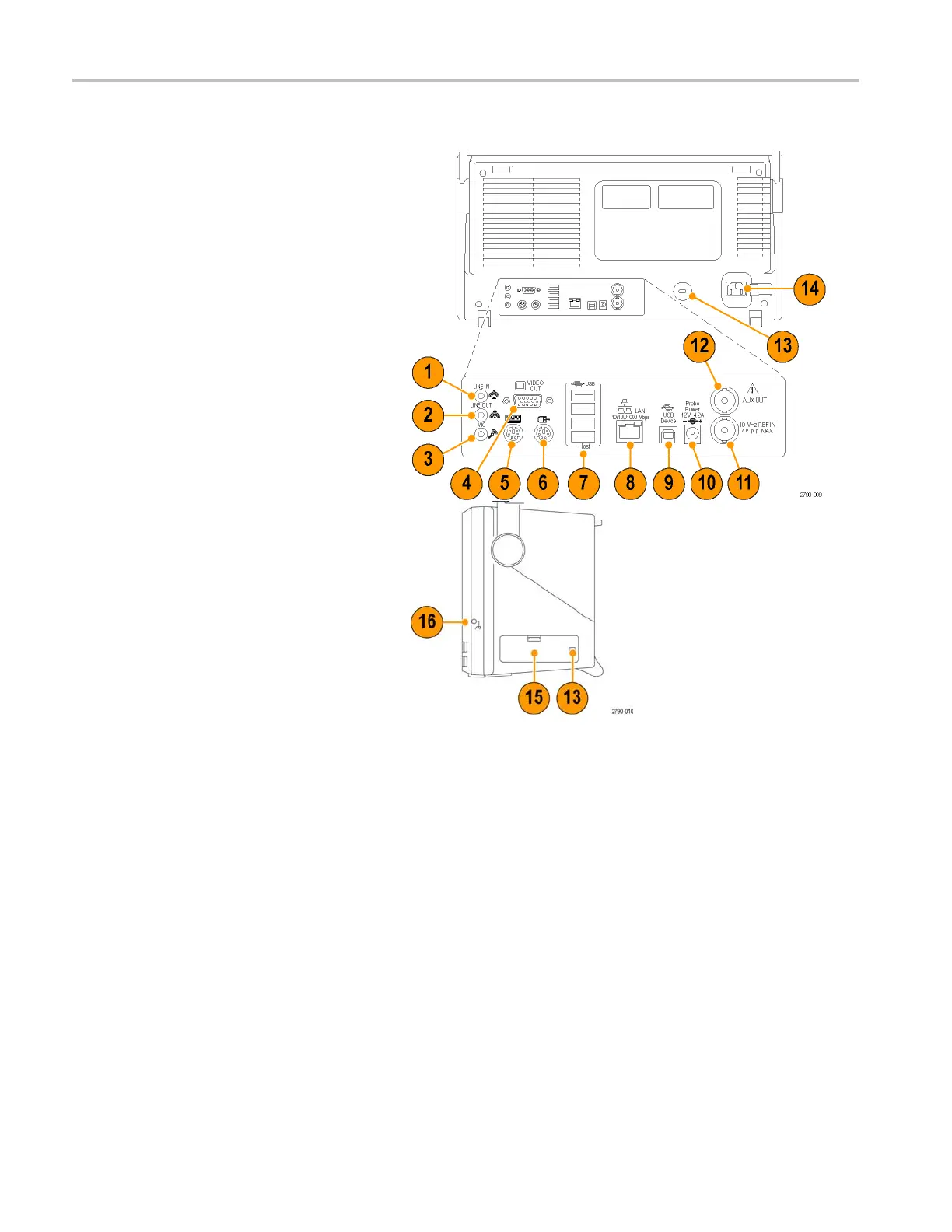

MSO5000 and DPO5000
1. Line In connector
2. Line Out connector for speaker
3. Mic c onnector for microphone
4. Video port to connect a monitor
5. PS-2 connector for keyboard
6. PS-2 connector for mouse
7. USB host ports
8. RJ-45 LAN connector to c onnect to
network
9. USBDeviceport
10. P robe Power input, use 119-7465-xx
power supply
11. External reference input
12. A uxiliary output
13. S ecurity lock input
14. A C Power input
15. Rem ovable hard disk drive cover
16. G round connection
MSO5000 and DPO5000 Series
20 MSO70000/C, DPO/DSA70000B/C, DPO7000, and MSO/DP O5000 Series U ser M anual
