Acquisition
Changing the Acquisition Mode
Use this procedure to change the acquisition mode.

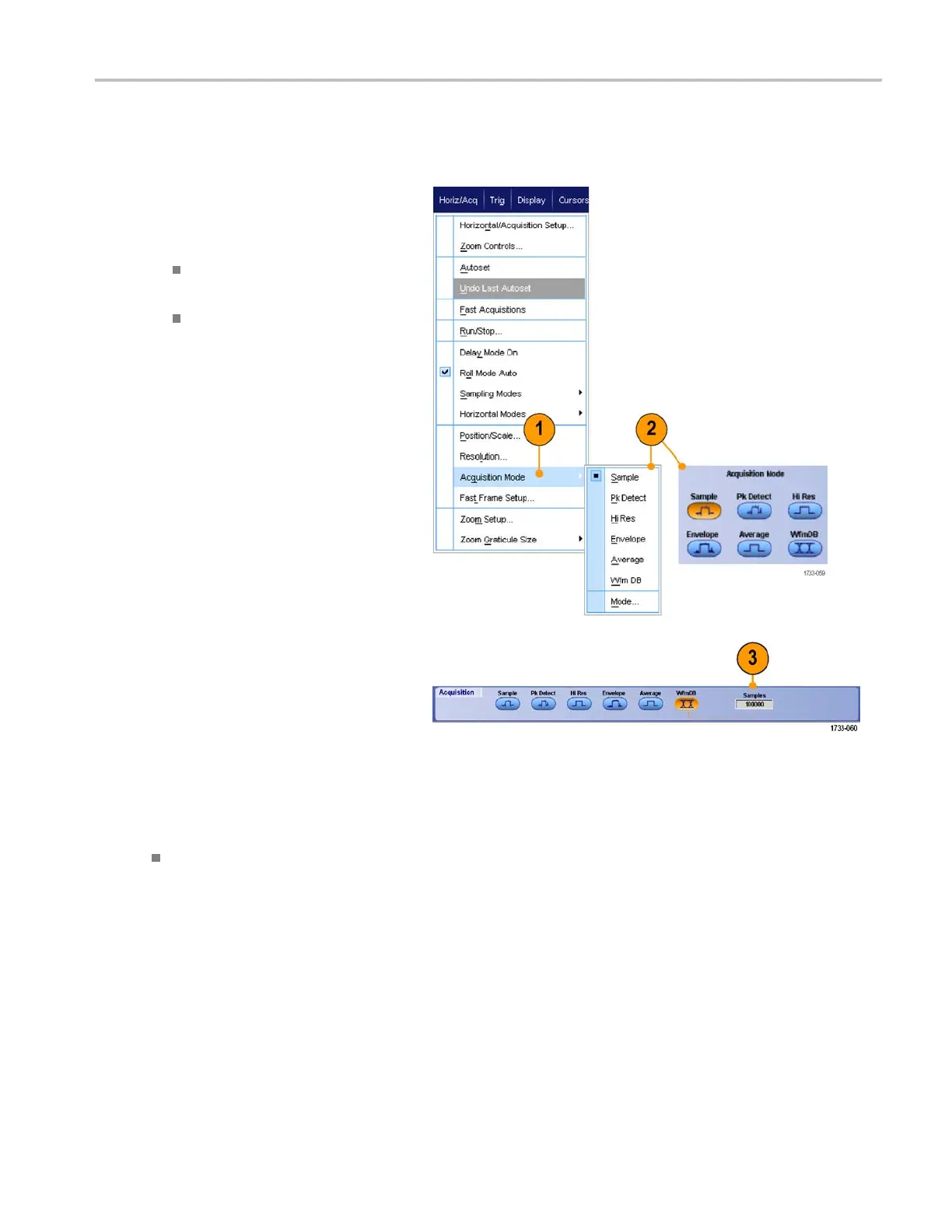

1. Select Horiz/Acq > Acquisition Mode.
2. To select an acquisition mode, do one
of the following:
Select an acquisition mode directly
from the menu.
Click Mod e ..., and then select an
acquisition mode.
3. For Aver
age or Envelope acquisition
modes, click the #ofWfmscontrol, and
then set the number of waveforms with
the mul
tipurpose knob. For WfmDB
mode, click the Samples control, and
then set the number of samples with the
multi
purpose knob.
Quick Tip
Click the keypad icon to set the number of waveforms or samples.
MSO70000/C, DPO/DSA70000B/C, DPO7000, and MSO/DP O5000 Series U ser M anual 39
