Analyzing Wavef
orms
Using Math Waveforms
Create math waveforms to support the analysis of your channel and reference waveforms. By combining and transforming
source waveforms and other data into math w aveforms, you can derive the data view that your application requires.
Use the following procedure for predefined math equations.

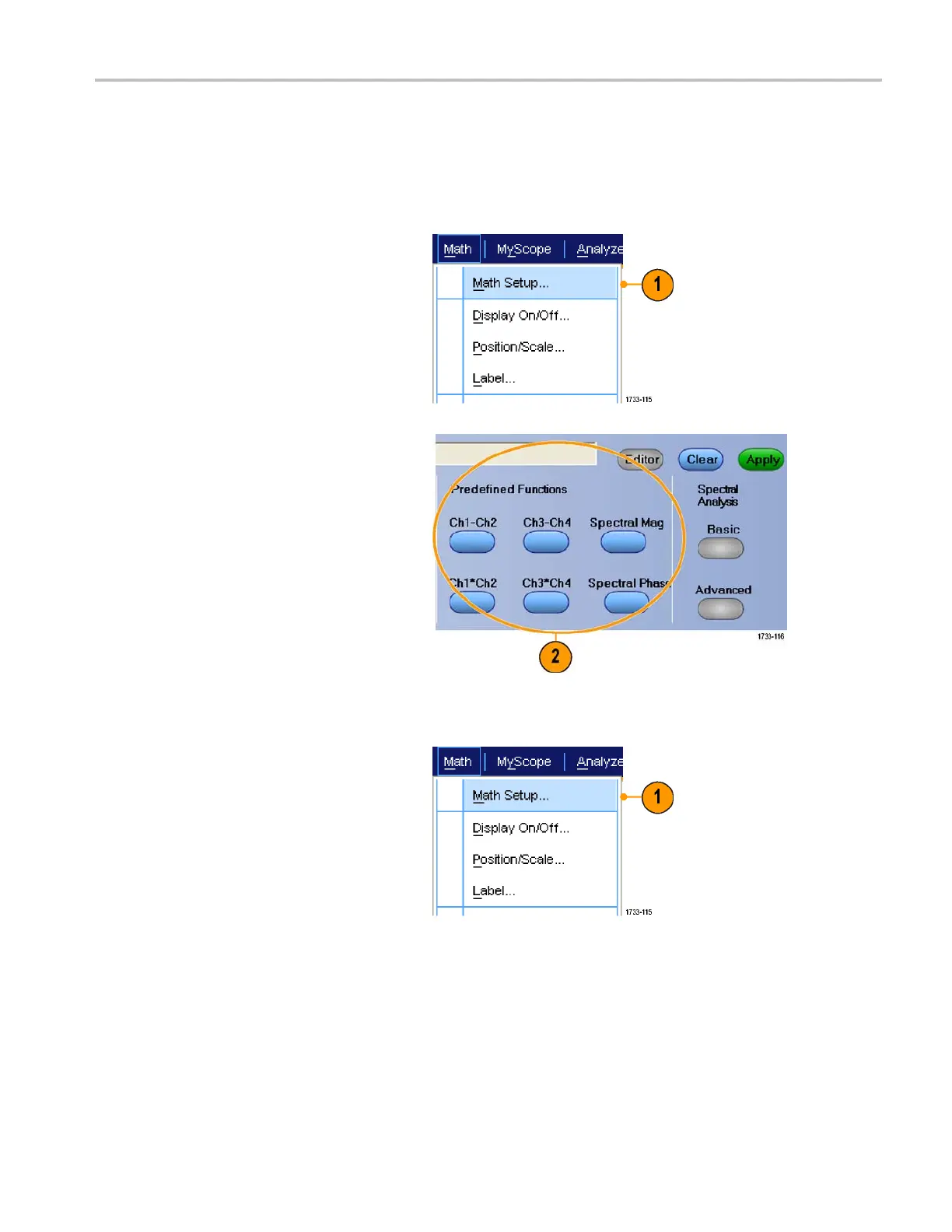

1. Select Math > Math Setup....
2. Choose one of the predefined math
equations.
Use the
following procedure to build an advanced math waveform expression.
1. Select Math > Math Setup....
MSO70000/C, DPO/DSA70000B/C, DPO7000, and MSO/DP O5000 Series U ser M anual 125
