Pinpoint Trigge
rs

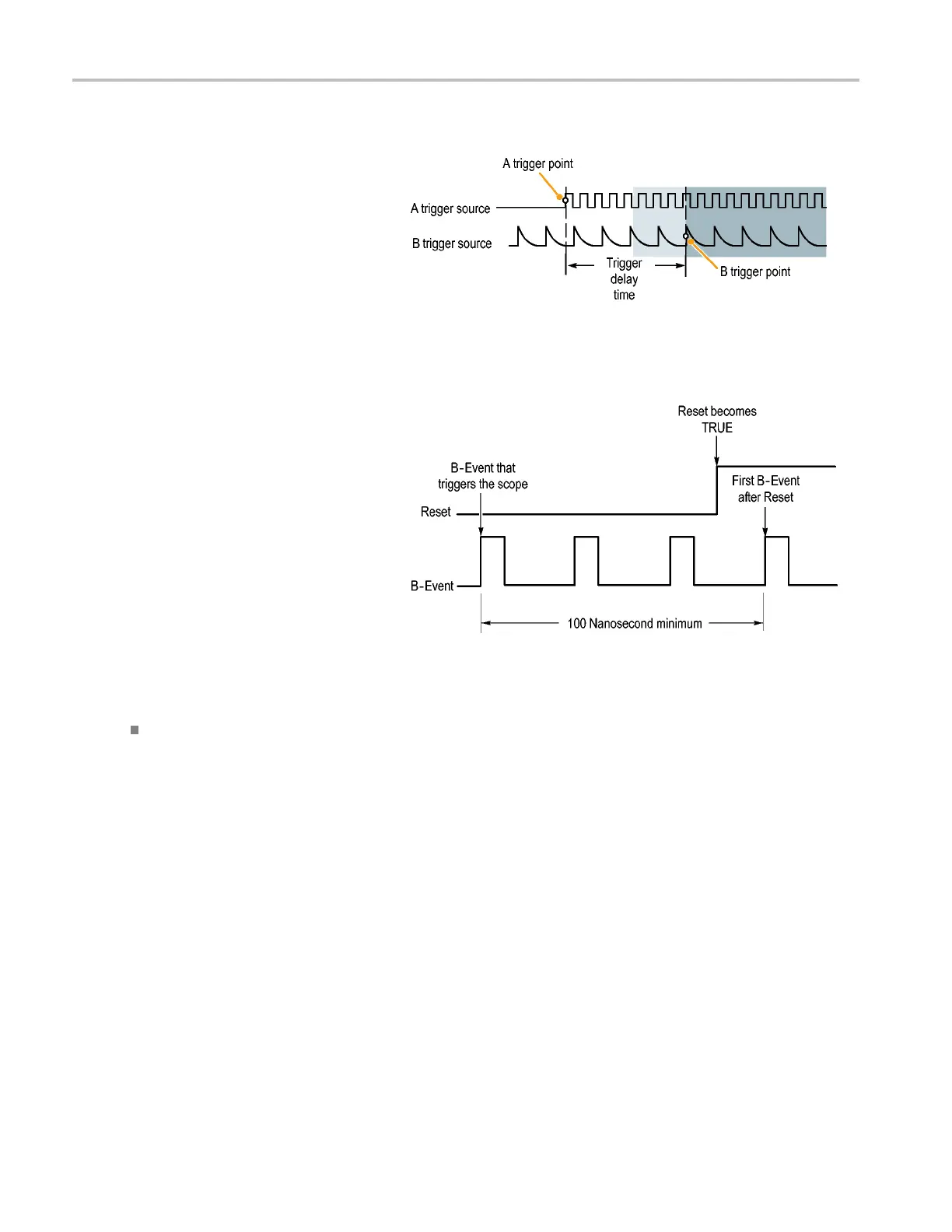

B Trigger After Delay Time
The A trigger arms the instrument.
Posttrigger a
cquisition starts on the first B
edge after the trigger delay time.
Triggering
with Reset
You c an specify a condition to reset the
trigger system if it occurs before the B trigger
event. Whe
n the reset event occurs, the
trigger system stops waiting for the B event
and returns to waiting for the A event.
Triggeri
ng with reset is not available on
MSO5000 and DPO5000 instruments.
Quick Tips
B-trig
ger delay time and horizontal delay time are independent functions. W hen you establish a trigger condition using
either the A trigger alone or the A and B triggers together, you can also use horizontal delay to delay the acquisition
by an additional amount.
Corre
cting Trigger Positio n
Trigger position correction c orrects for differences in the data path and the trigger path to more accurately place the trigger
on the displayed waveform. Trigger position correction can also use averaging to more accurately place the trigger on noisy
signals. To more accurately place edge triggers on the display, perform the following procedure.
76 MSO70000/C, DPO/DSA70000B/C, DPO7000, and MSO/DP O5000 Series U ser M anual
