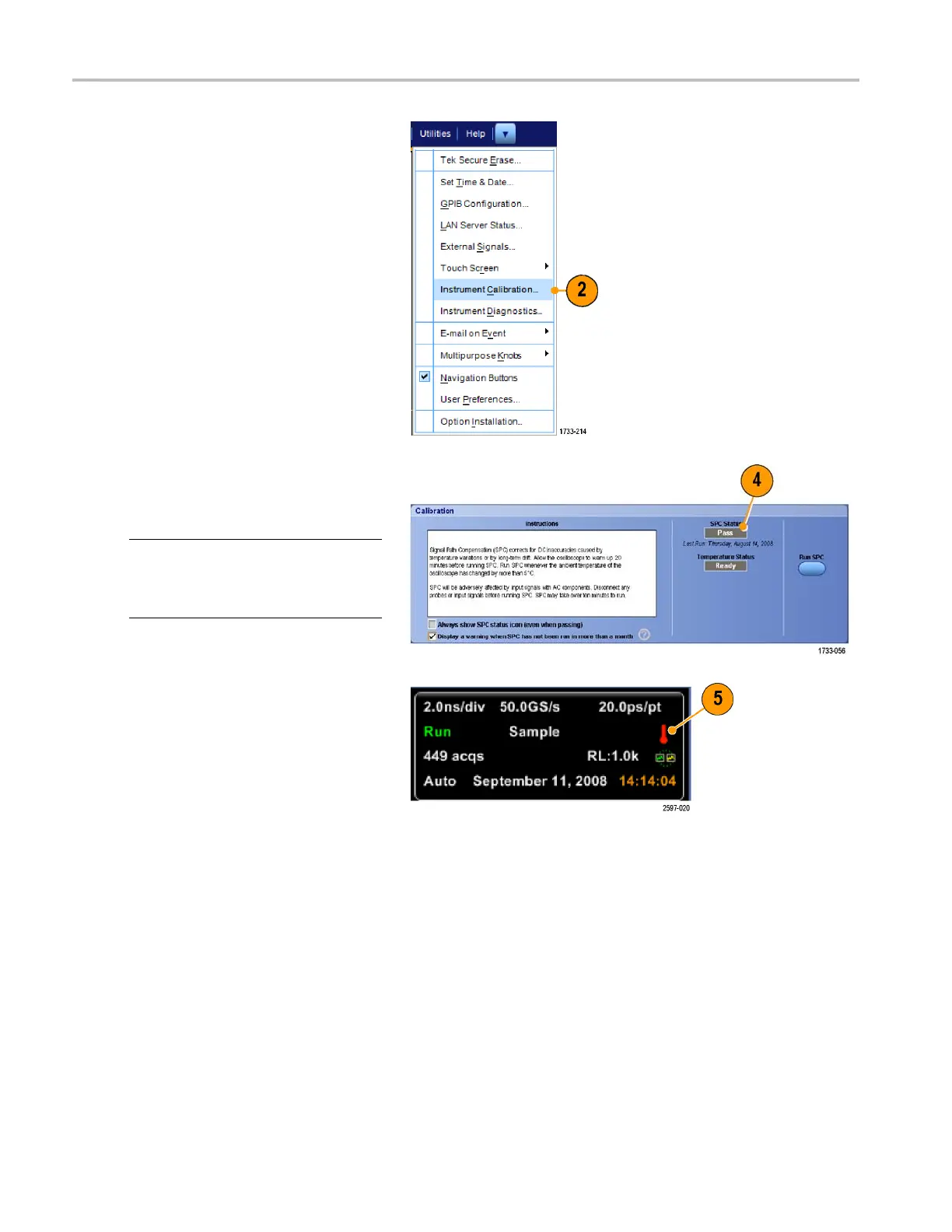

Acquisition
2.
Select
Instrument
Calibration.
4.
If
the
instrument
does
not
pass,
recalibrate
the
instrument,
or
have
the
instrume
nt
serviced
by
quali
fi
ed
service
personnel.
NOTE.
T
o
always
show
the
SPC
status
icon
or
displa
y
a
warning
when
SPC
has
not
been
run
in
more
than
a
month,
click
the
corresponding
check
box.
5.
If
the
SPC
needed
icon
is
red,
perform
a
signal
path
compensation.
30
MSO70000/C,
DPO/DSA70000B/C,
DPO7000,
and
MSO/DP
O5000
Series
U
ser
M
anual
50
