Pinpoint Trigge
rs

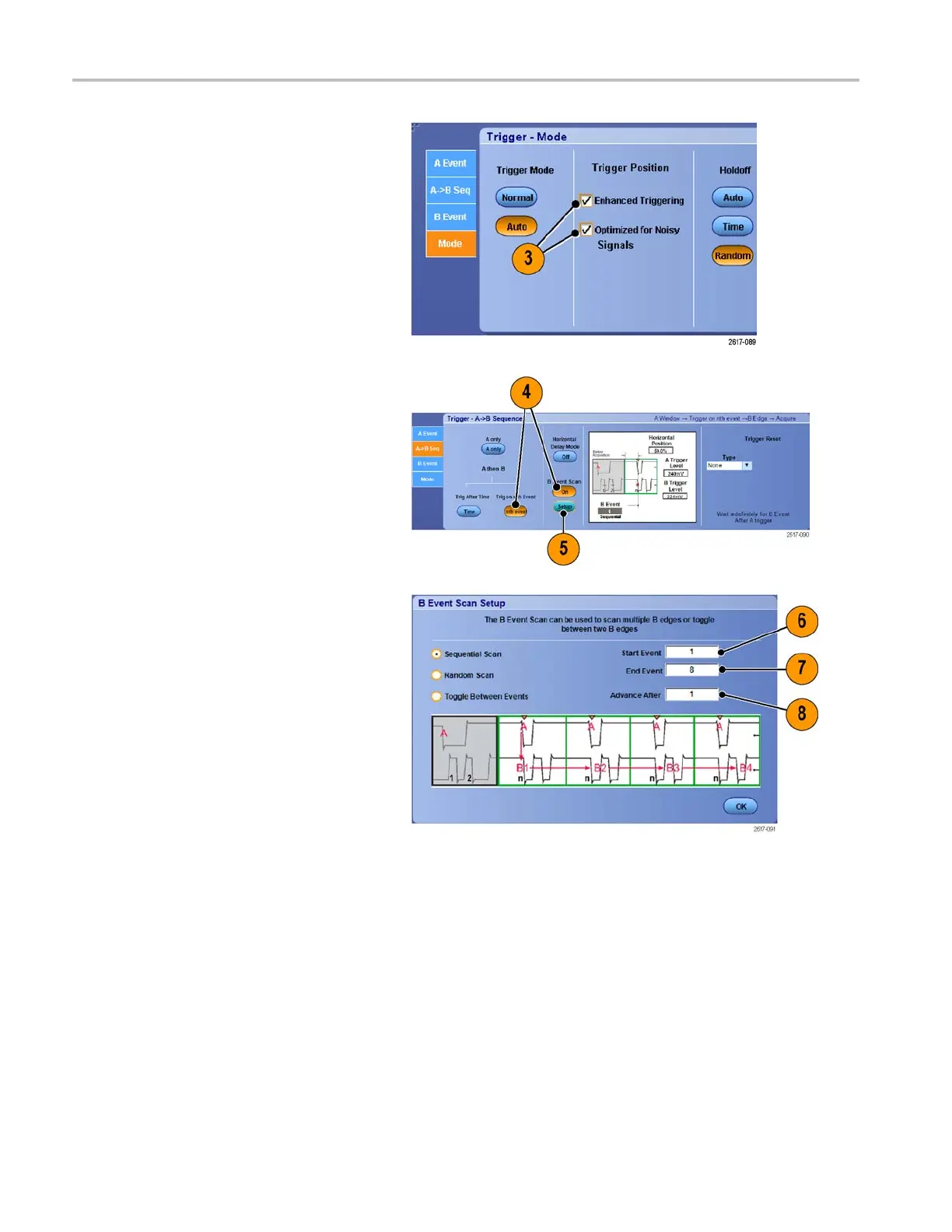

3. To more accurat
ely place the trigger
on the display, check Enhanced
Triggering. To more a ccurately place
the trigger on
noisy signals, also check
Optimized for No isy Signals.
4. Select Tri
g on nth Event and B Event
Scan in the A>B Seq tab.
5. To display the B Event Scan Setup
window, press B Event Scan > Setup.
6. Set the B
Event start value.
7. Set the
B Event ending value.
8. Set the
number of acquisitions before
the B Event value is incremented.
78 MSO70000/C, DPO/DSA70000B/C, DPO7000, and MSO/DP O5000 Series U ser M anual
