Display a wavefo

Display a wave

form

This section contains concepts and procedures for displaying a w aveform. Detailed information is available in the online help.

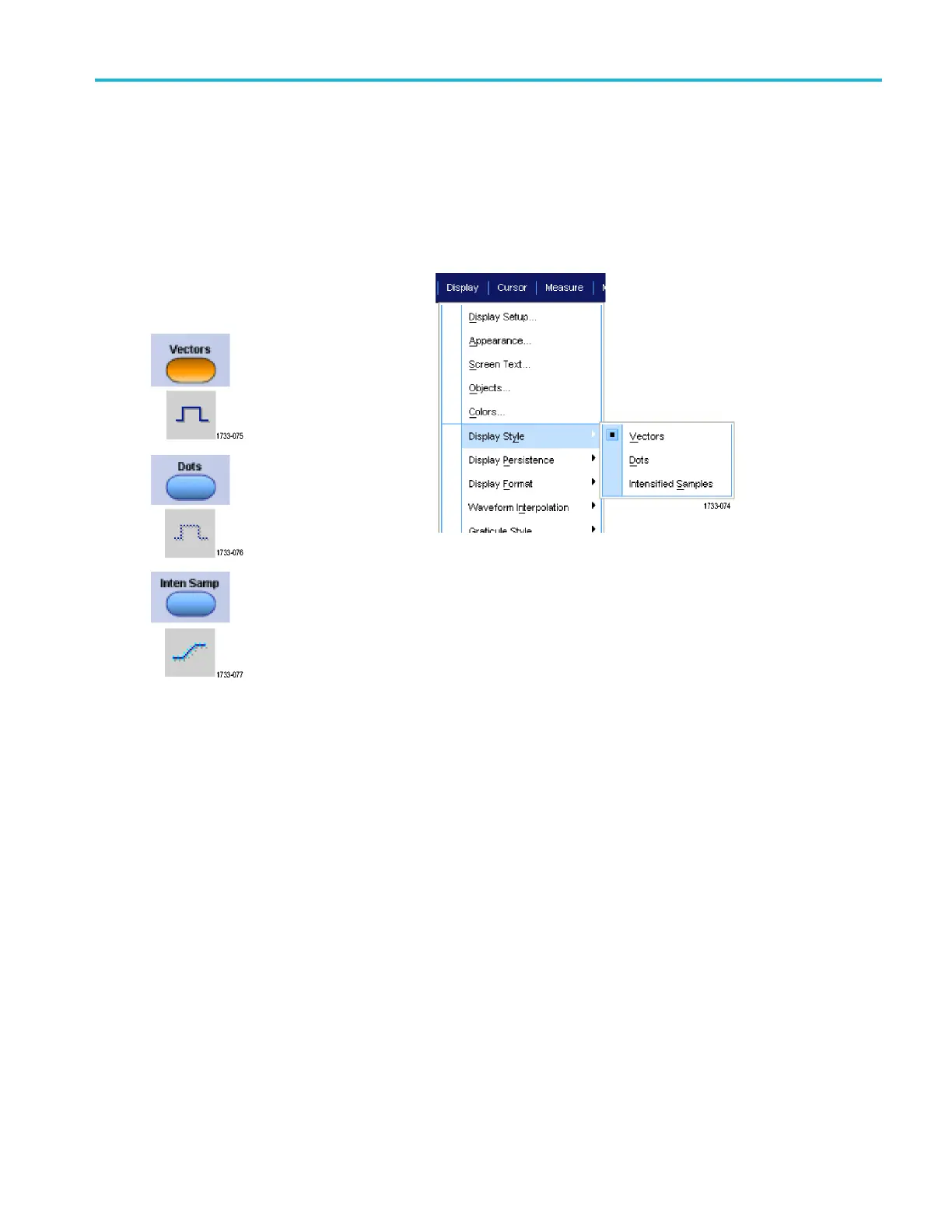

Setting the Display Style

To set the display style select Display >

Display Style, and then select one of the

following styles:

Displays waveforms with

lines drawn between

record points.

Displays waveform

record points as dots on

the screen.

Displays the actual

samples. Interpolated

points a

re not displayed.

MSO/DPO70000DX, MSO/DPO70000C, DPO7000C, and MSO/DPO5000B Series User Manual 91
