Acquisition

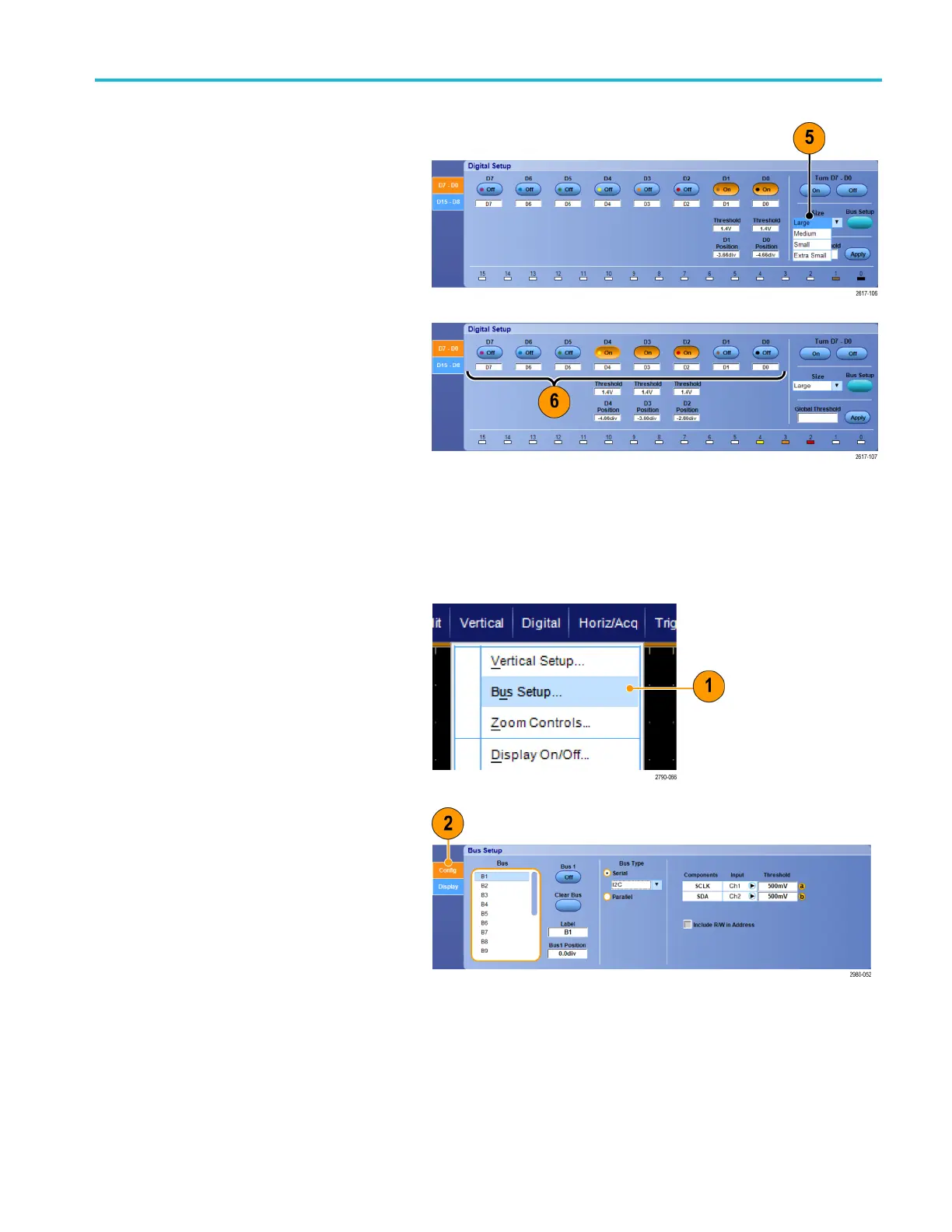

5. To change the displayed vertical size of

all digital channels, click Size and select

the display si

ze from the list.

6. To change a digital channel label, click

the label an

d enter a new label using the

keyboard.

Settingupabus

You can set up serial (optional) and parallel buses.

1. Select Vertical > Bus Setup or, on some

instrum

ents, Digital > Bu s Setup.

2. Select the Co nﬁg tab.

MSO/DPO70000DX, MSO/DPO70000C, DPO7000C, and MSO/DPO5000B Series User Manual 53
