Double-tap a System badge to open its configuration menu.
The Horizontal badge also has Scale buttons, shown by single-tapping the badge. Use the Horizontal Scale buttons to increase
or decrease the horizontal time setting.

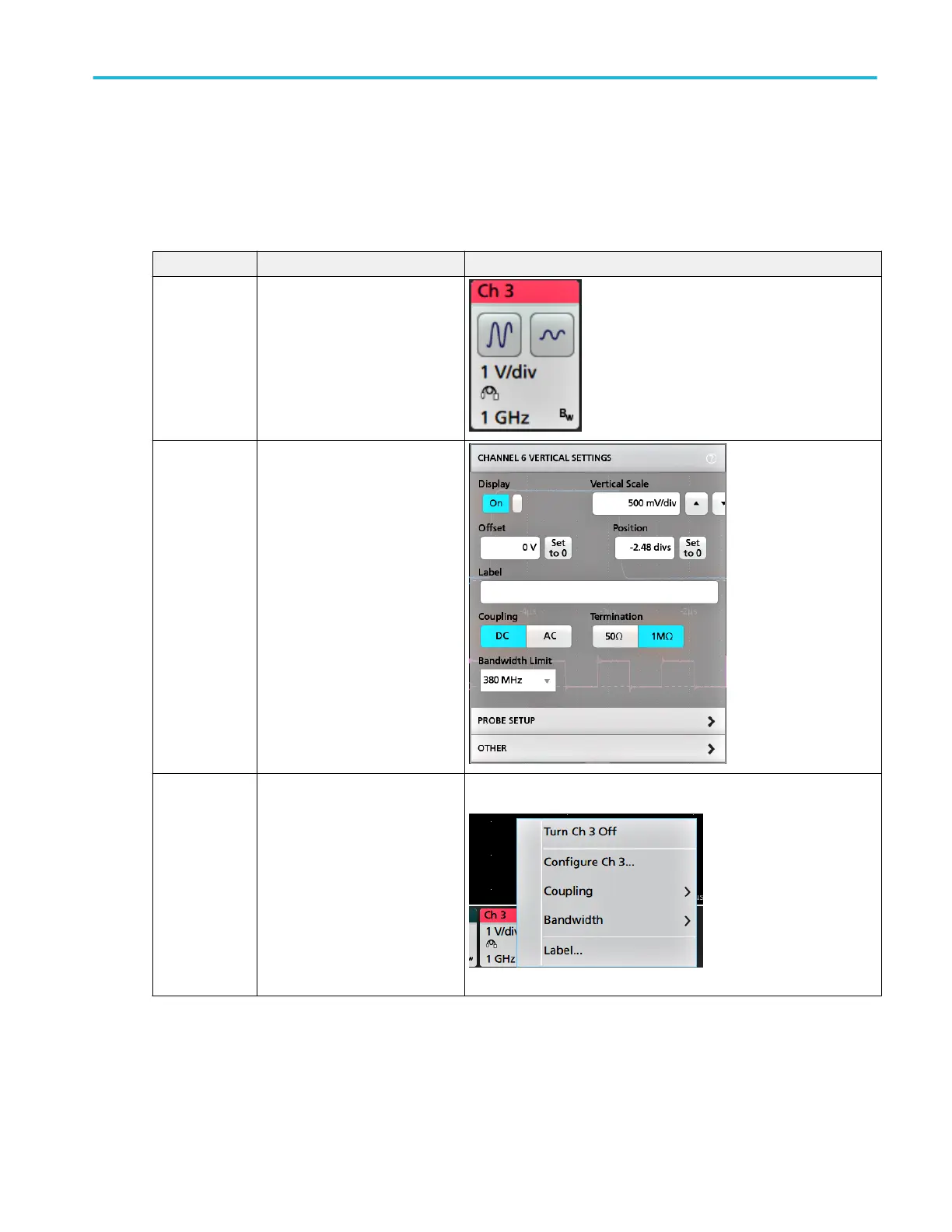

Common badge actions
Action Result Example
Single tap Immediate access controls (Scale,
Navigation).
Double tap Configuration menu with access to
all settings for the badge.
Touch and hold Right-click menu with single tap
access to common actions. Typical
actions include turning off a
channel and deleting a
measurement or search badge.
Getting acquainted with your instrument
MSO54, MSO56, MSO58 Installation and Safety Manual 23
