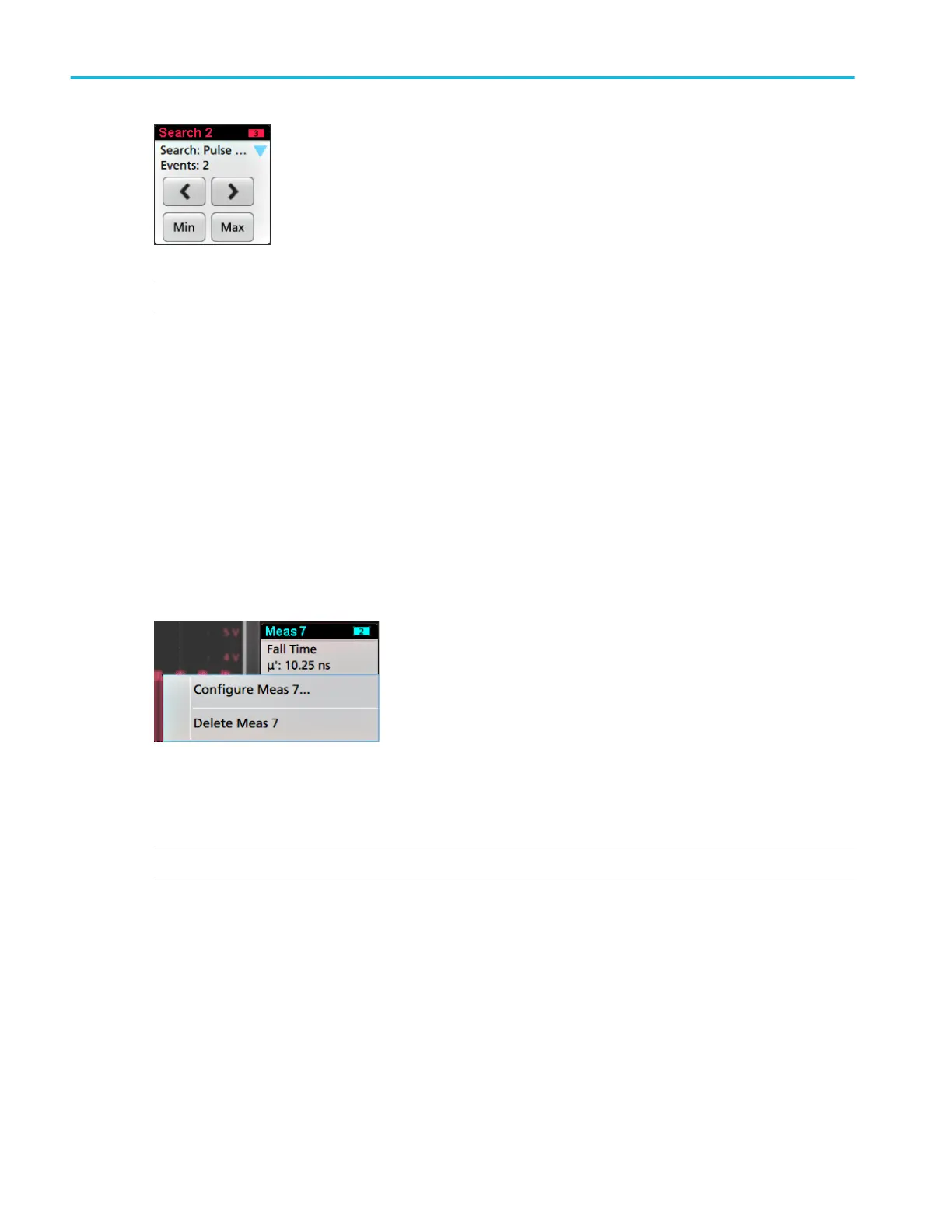

NOTE. Navigation buttons are only functional when the oscilloscope acquisition mode is set to Stop.
This opens the Zoom mode and moves the waveform to the previous or next event mark on the waveform.
7. If available for a search, tap the Min or Max button to center the waveform in the display at the minimum or maximum value
of the search events in the waveform record.
8. To return the instrument to normal acquisition mode, tap the Zoom icon in the upper right corner of the Waveform View to
turn off Zoom mode, and push the Run/Stop front-panel button to set it to Run mode.
Delete a Measurement or Search badge
Use this procedure to remove a Measurement or Search badge from the Results bar.
1. Touch and hold the Measurement or Search badge that you want to delete. The instrument opens a right-click menu.
2. Select Delete Meas to delete that badge from the Results bar.
3. You can also delete a Measurement or Search badge by dragging it to the Trash Can icon, located at the bottom of the
Results bar. When the Trash can icon and the badge turns red, lift your finger to delete the badge. You can use the mouse
to drag and delete a badge.
NOTE. You can undo a measurement delete.
Operating basics
46 MSO54, MSO56, MSO58 Installation and Safety Manual
