Tektronix MSO70000 Series

Pinpoint Trigge
rs

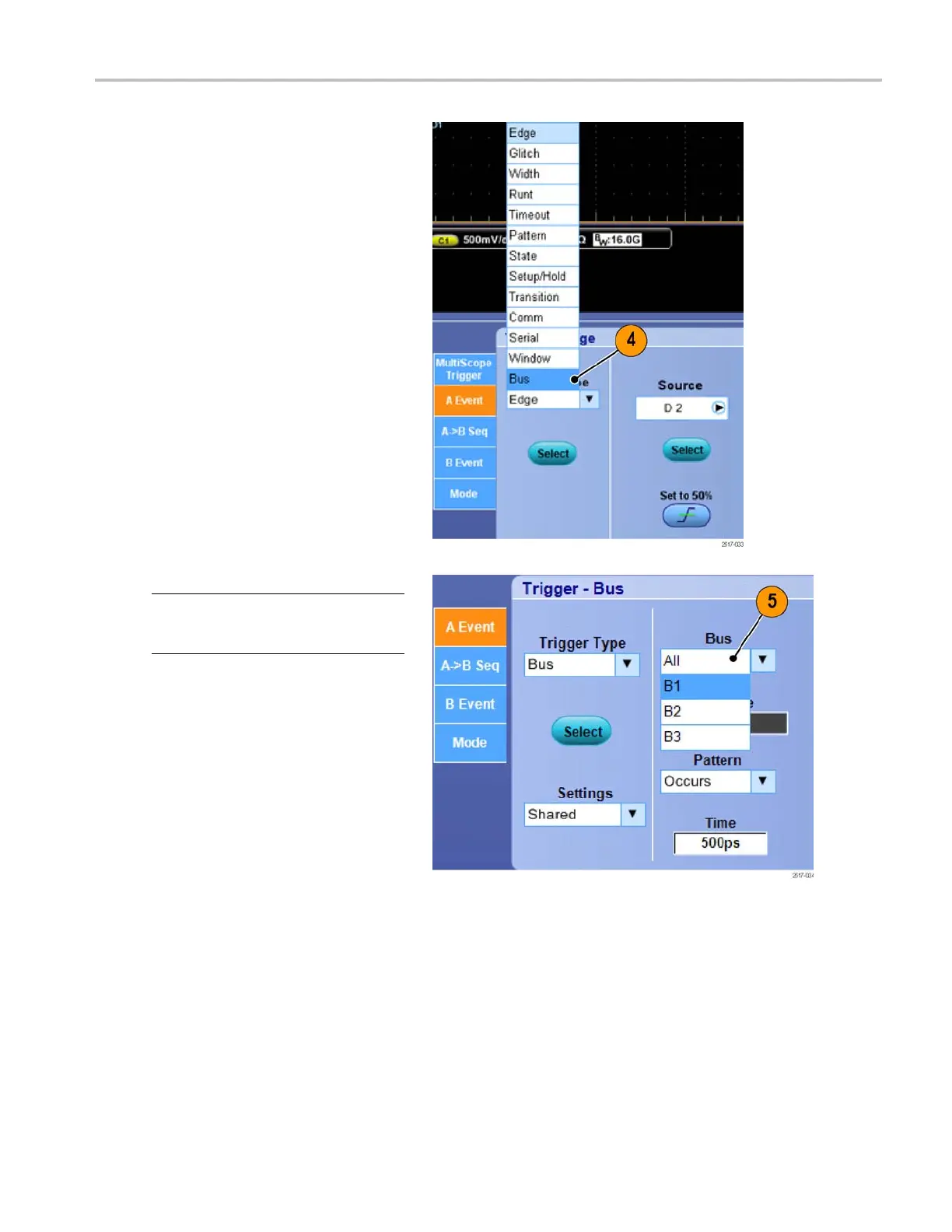

3. Select the Bus Trigger Type.
4. Select t
he bus to trigger on.
NOTE. Clocked buses will only appear in
the drop down list if the clock source is set
to Ch4.
MSO70000/C, DPO/DSA70000B/C, DPO7000, and MSO/DP O5000 Series U ser M anual 81
