Saving and Recal
ling Inform ation
3. Select the location to save the screen
capture.
4. Type in a name for the s creen capture,
or use the defa
ult name, and then select
a file type.
5. Click Save.
Quick Tip
To quickly save multiple screen captures, select Set Front Panel Print Button to Save, and then click Save. You c an
now save a screen capture by pushing the front panel Print button.
Saving W
aveforms

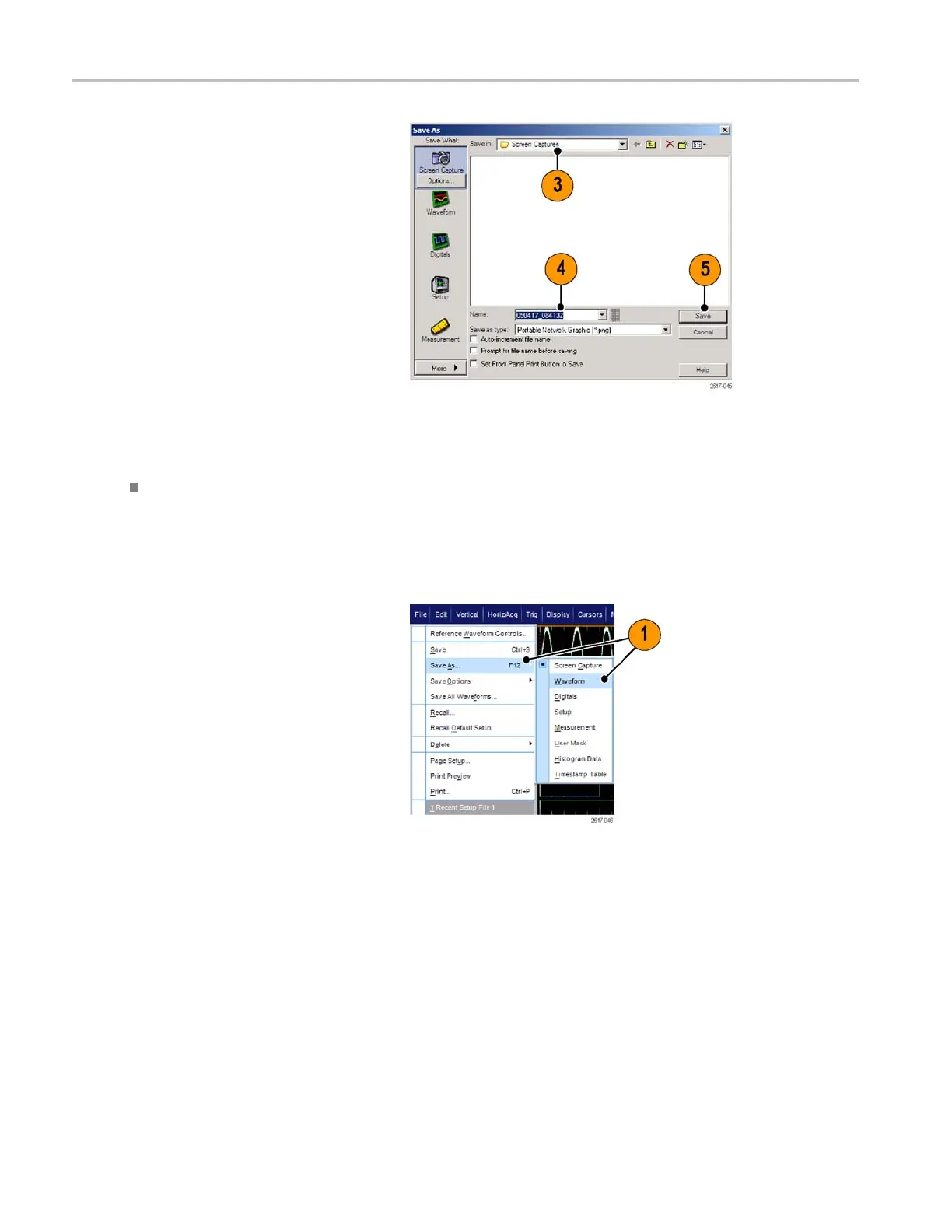

1. To save waveforms, select File > Save
or Save As > Waveform....
144 MSO70000/C, DPO/DSA70000B/C, DPO7000, and MSO/DP O5000 Series U ser M anual
