P6616 General-Purpose Logic Probe Instructions
071-2831-00
Copyright © Tektronix, Inc. All rights reserved.
Product Description

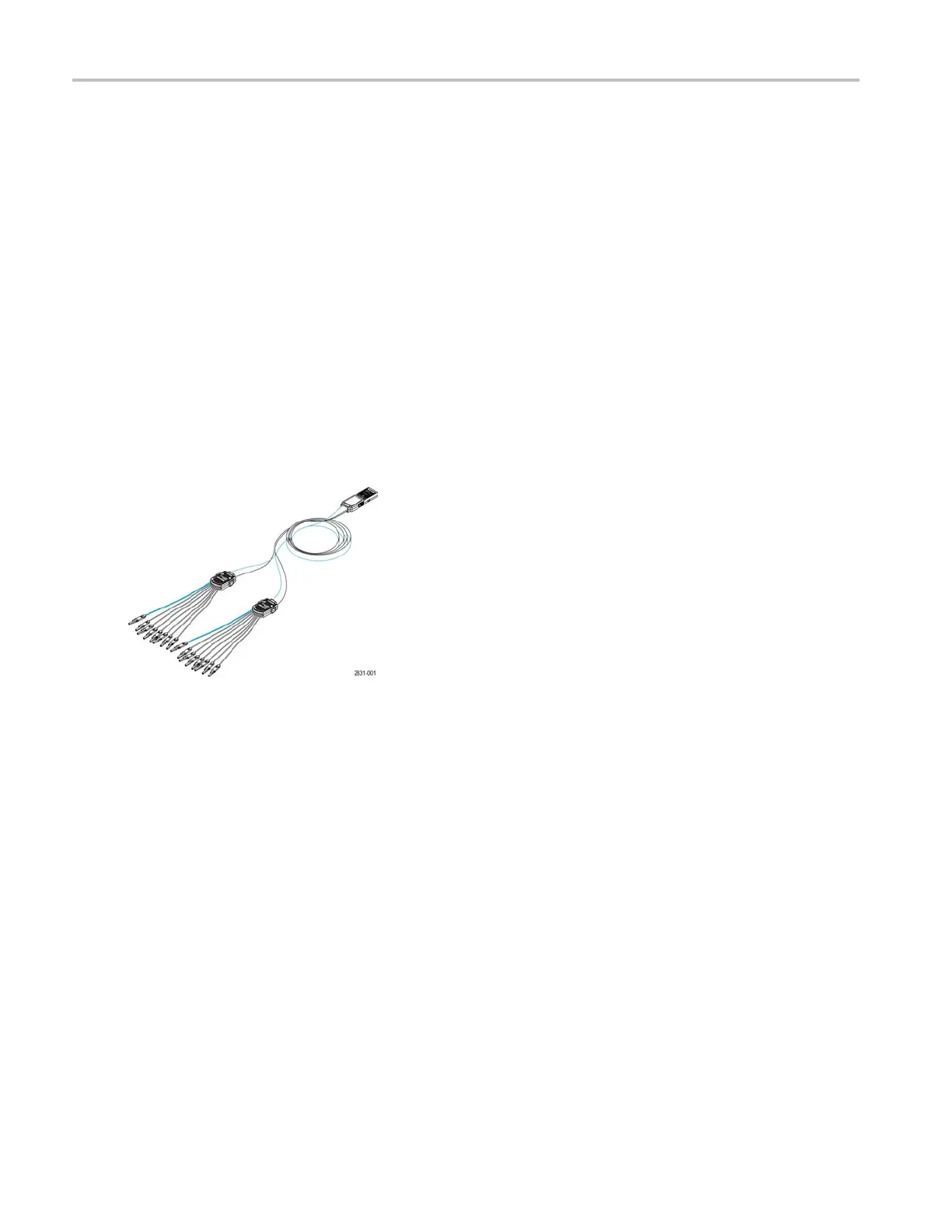

The P6616 general-purpose logic probe connects the Tektronix MSO5000 Series and MSO4000B Series of mixed-signal
oscillosc
opes to digital buses and signals on your target system. The probe contains 16 data channels split between two lead
sets (GROUP 1 and GROUP 2).
The first lead in each set is identified by blue insulation, and the remaining seven leads are gray. All leads include a
ground connection at the tip. You can connect the probe leads separately to the target system, or group the leads together
using the p
robe tip holders.
