Acquisition
Using FastFrame Mode
FastFrame allows you to capture many trigger events as single records in a larger record, and then view and measure
each record individually. Time Stamps display the absolute trigger time for a specific frame and the relative time between
triggers of two speci fied frames.

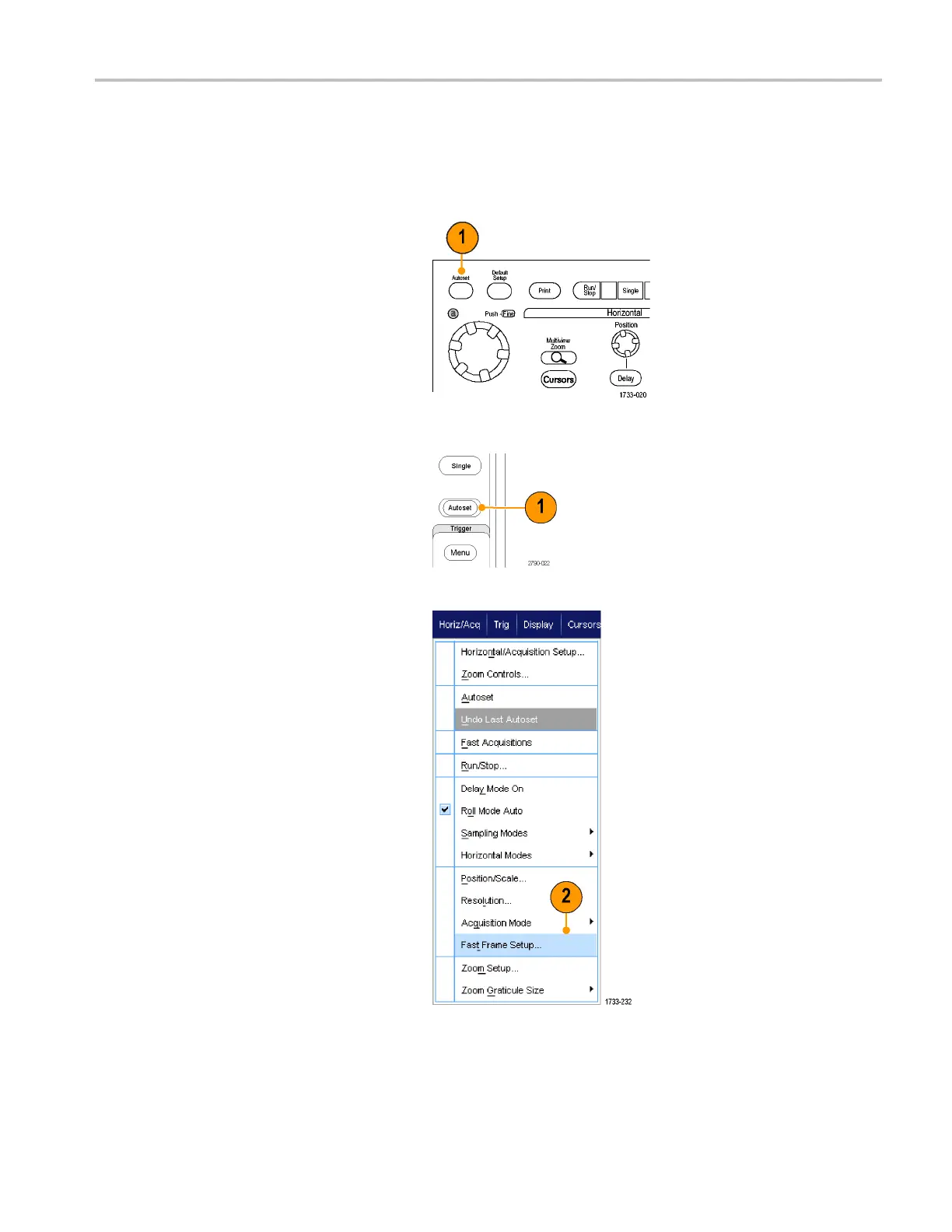

1. Push AUTOSET to set the horizontal,
vertical, and trigger controls or set the
controls manually.
MSO70000/C
, DSA70000B/C, DPO70000B/C, and DPO700 0 Series
MSO5000 and DPO5000 Series
2. Select Horiz/Acq > FastFrame Setup....
MSO70000/C, DPO/DSA70000B/C, DPO7000, and MSO/DP O5000 Series U ser M anual 59
