Tektronix MSO70000 Series

Analyzing Wavef
orms

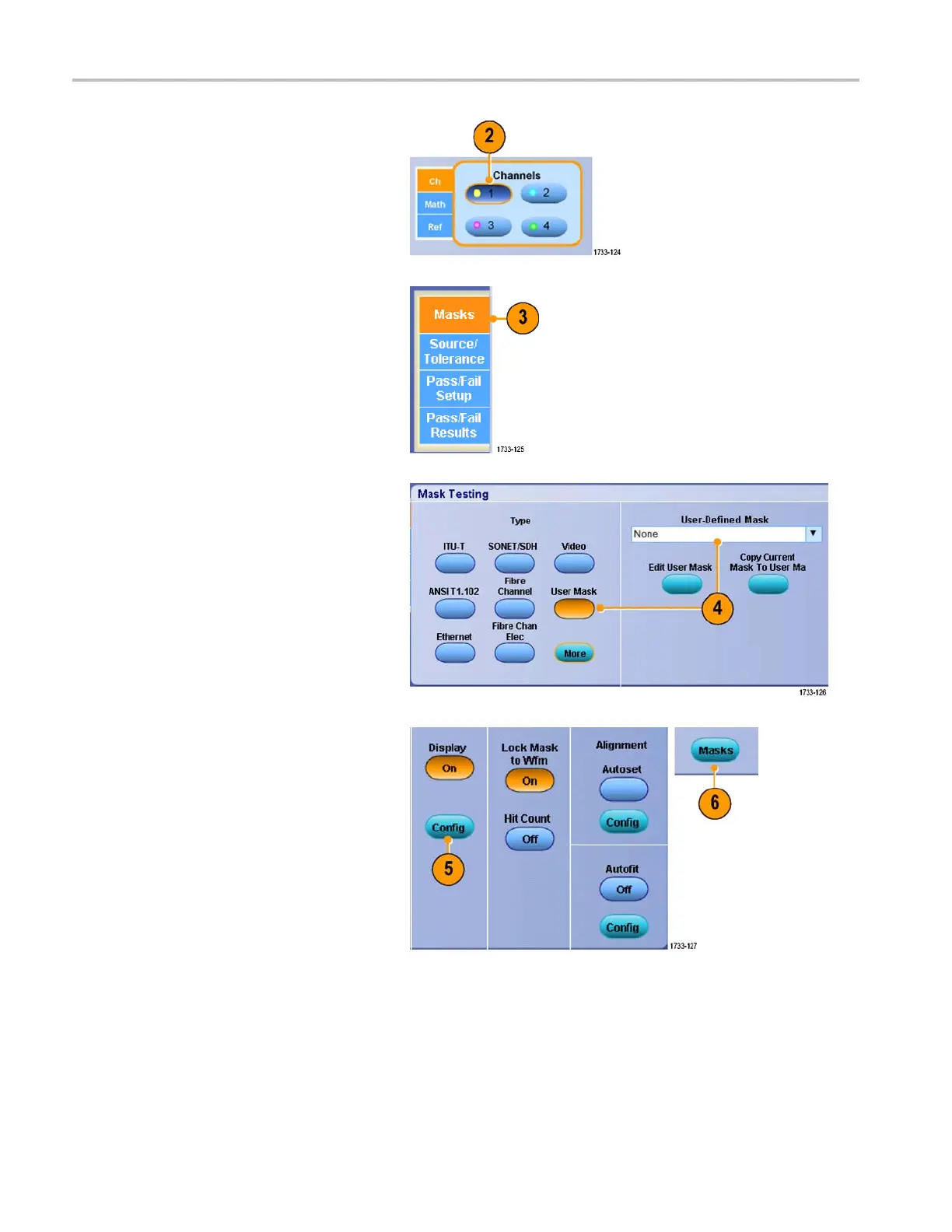

2. Select the signal source.
3. Click the Masks tab.
4. Select the Type and standard.
5. Click a ConfigbuttontoaccessaMask
Configuration control window, where you
can ad
just how masks and violations are
displayed and how Mask Autoset and
Autofitareconfigured.
6. Click Masks to return to the Mask Setup
cont
rol window.
132 MSO70000/C, DPO/DSA70000B/C, DPO7000, and MSO/DP O5000 Series U ser M anual
