Display a wavefo

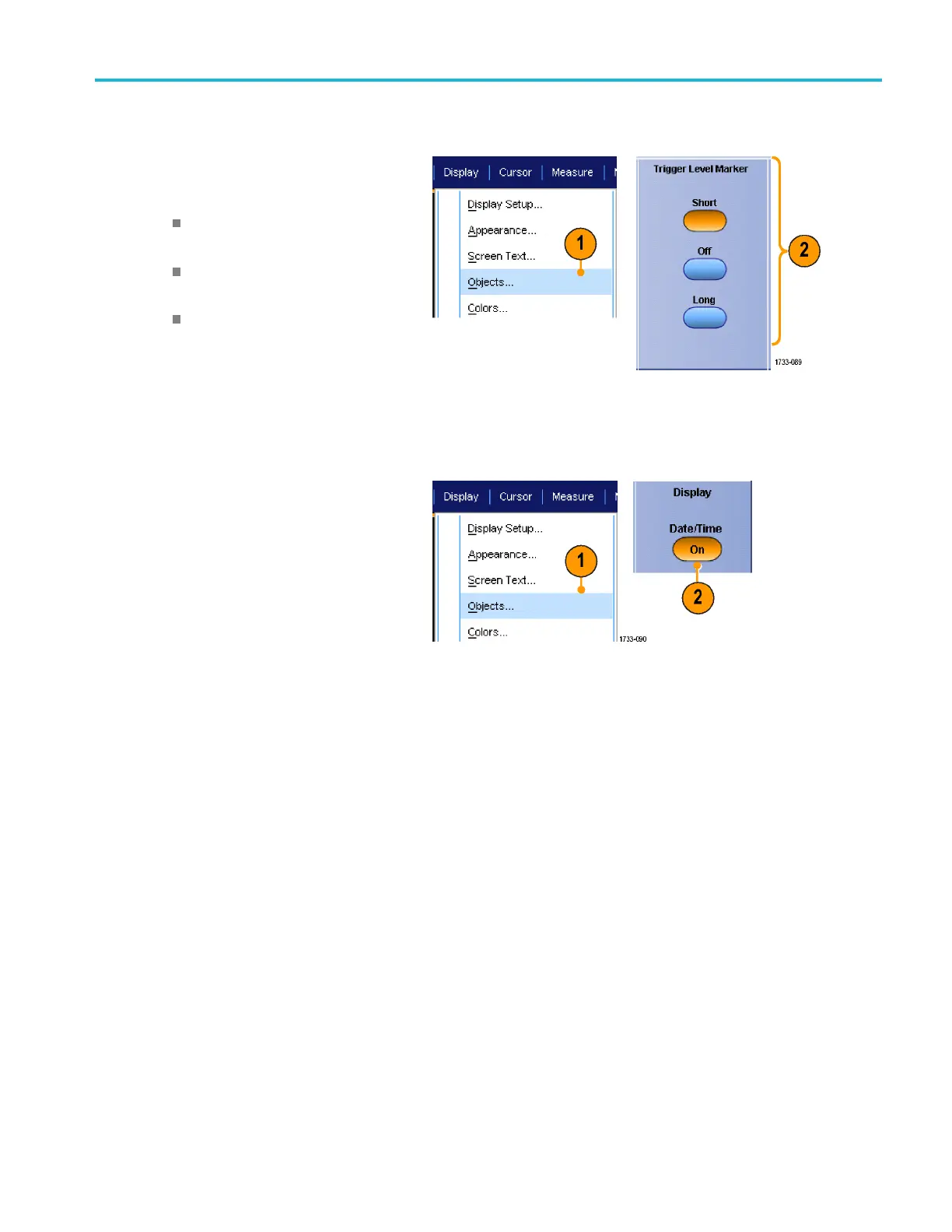

Setting the Trigger Level Marker

1. Select Displa

y > Objects....

2. Select one of t

he following:

Short displa

ys a short arrow on the

side of the graticule.

Long displays a horizontal line

across the graticule.

Off turns off the trigger level marker.

Displaying the Date and Time

1. Select Display > Objects....

2. Toggle the display of the date and time

on the graticule. Use the Utilities menu

to set the date and time.

MSO/DPO70000DX, MSO/DPO70000C, DPO7000C, and MSO/DPO5000B Series User Manual 97
