Saving and recal

ling information

Printing a hard copy

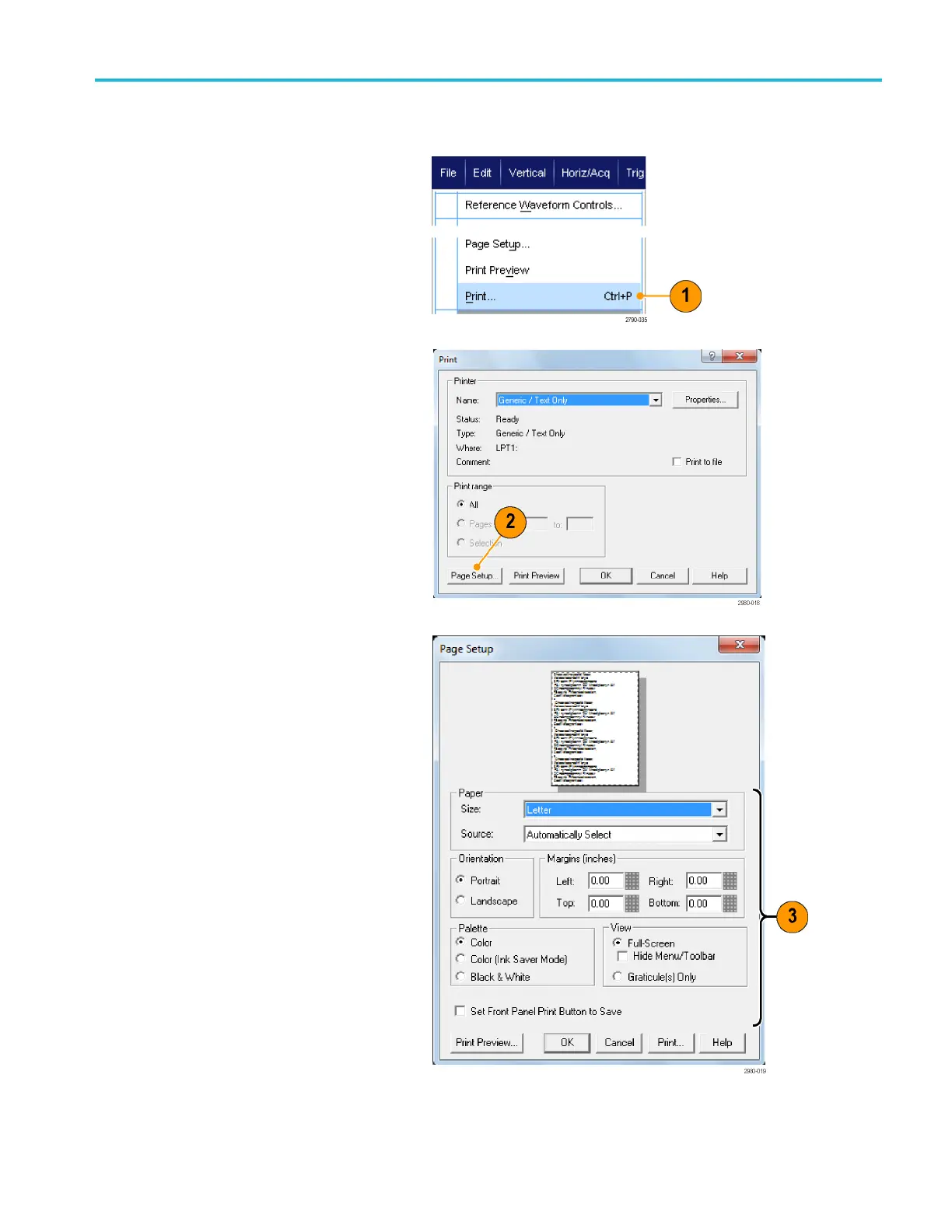

1. To print a hard copy, push the print button

or select File > Print. If necessary, make

changes to the

page orientation in the

Page Setup dialog box.

Your Print and Page Setup dialog boxes will

depend on th

e printer you are using.

2. Click Page

Setup....

3. Select t

he printing parameters.

MSO/DPO70000DX, MSO/DPO70000C, DPO7000C, and MSO/DPO5000B Series User Manual 165
