Using Spectral Analysis

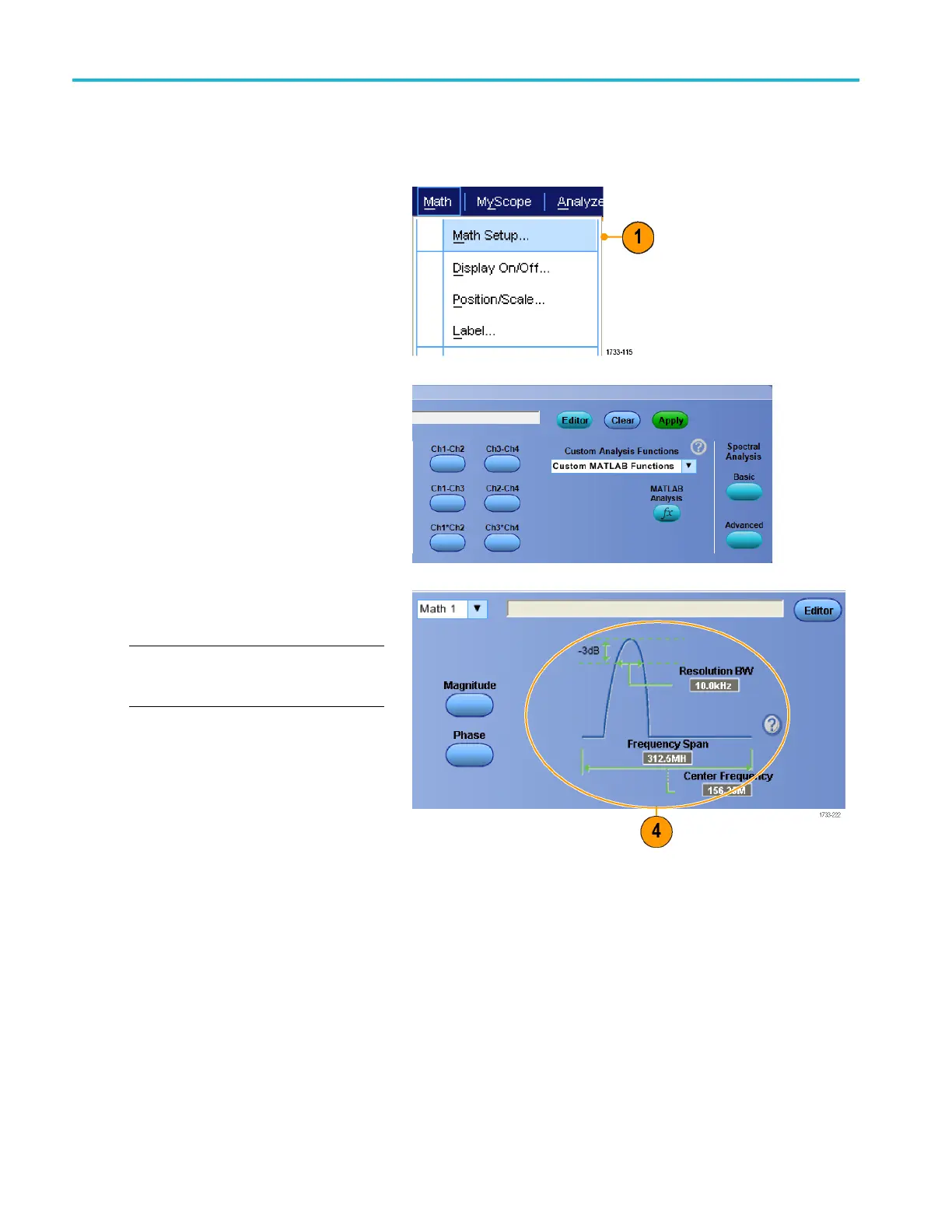

Use the following procedure for predefined spectral math expressions. See the online help for more information.
1. Select Math > Math Setup... .
2. Choose one of the predefined spectral
math expressions.
3. Click Basic.
4. Click R
esolution BW or Frequency Span
and use the keypad or the multipurpose
knobs to adjust the spectral display.
NOTE. R
esolution BW and Frequency Span
are only adjustable in Manual Horizontal
Mode.
132 MSO/DPO70000DX, MSO/DPO70000C, DPO7000C, and MSO/DPO 5000B Series U ser M anual

Tektronix MSO71254C Specifications

General

Bandwidth	12.5 GHz
Channels	4
Input Coupling	AC, DC, GND
Operating Temperature	0 °C to +50 °C
Record Length	125 Mpoints
Rise Time	28 ps
Vertical Resolution	8 bits
Display Size	12.1 inch
Display Type	LCD
Input Impedance	50 Ω or 1 MΩ
Maximum Input Voltage	5 Vrms (50 Ω)
Trigger Types	Edge, Pulse, Runt, Window, Timeout, Pattern, Logic
Interface	USB, LAN, GPIB
Sample Rate	50 GS/s
