Analyzing wavef
orms

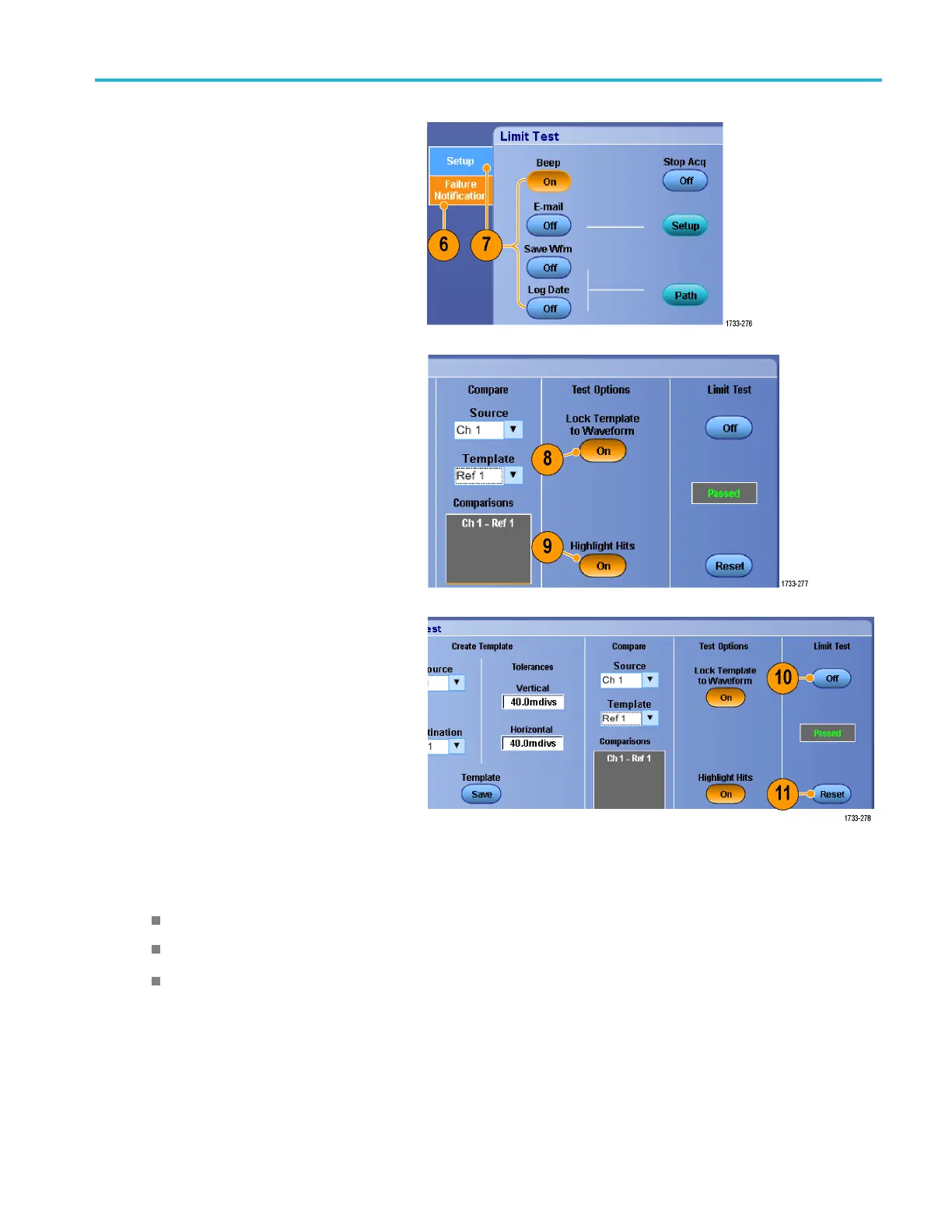

6. Click Failure No tification to set up the
Failure No tification.
7. Select the failure notification(s), and
then click Set
up to return to the setup
control window.
8. Click Lock Template to Waveform On to
lock the ve
rtical scale or position of the
template to that of the source waveform.
9. Click H ighlight Hits On to show points
that fall outside the template in a
different
color.
10. Toggle Limit Test to On to start the test.
11. Click Reset to clear all violations and
reset the test.
Quick tips
Use active or s aved waveforms to create a lim it test template.
Using Average acquisition mode will create a smoother template waveform.
Using Envelope acquisition mode will create a template that allows for occasional overshoots.
MSO/DPO70000DX, MSO/DPO70000C, DPO7000C, and MSO/DPO5000B Series User Manual 145
