Tektronix MSO71254C

To Next Page

To Previous Page

Getting acquain

tedwithyourinstrument

MSO5000B and DPO5000B Series

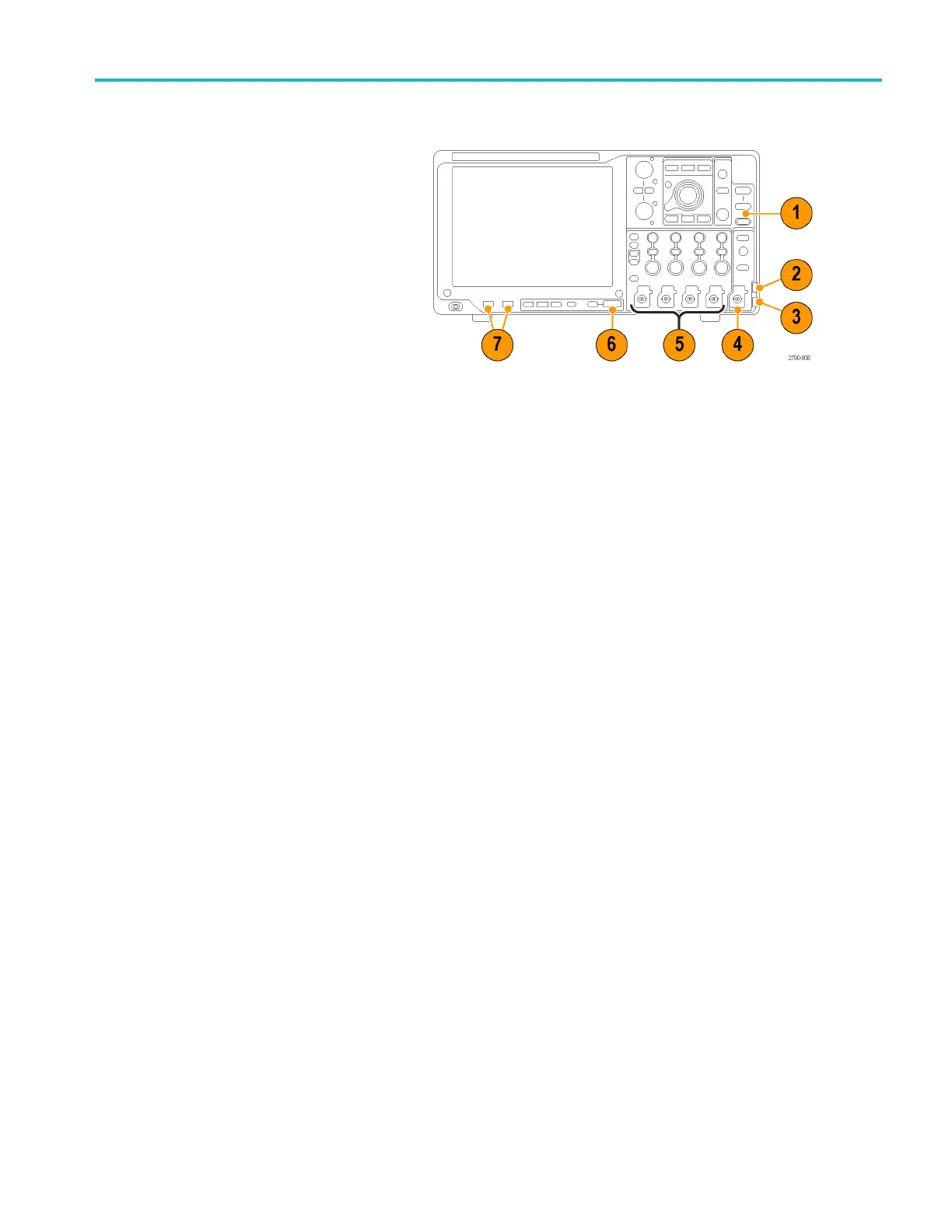

1. Front panel controls

2. Ground terminal

3. Probe compensation output

4. Auxiliary Trigger input

5. Channel 1–4 inputs

6. Logic probe input

7. USB ports

MSO5000B and DPO5000B Series

MSO/DPO70000DX, MSO/DPO70000C, DPO7000C, and MSO/DPO5000B Series User Manual 19
