Specifications
Table 63: Environmental characteristics (cont.)
Characteristic Description
Cooling Clearance
Both Sides 50 mm (1.97 in)
1
Measured one inch (2.5 cm) away from the ventilation air intake (located at the left side of the instrument when viewed from the front).
Table 64: Power requirements
Characteristic Description
Voltage range
50 Hz/60 H z
100 V - 120 V
200 V - 240 V
400 Hz 90 V - 132 V
Maximum
Power
dissipation
(fully loaded)
Maximum power 420 W
Maximum line current 5.5 A mps at 50 Hz, 90 V line
Surge Current MAX 35 A peak (25 °C) for 5 line cycles, after product has been turned off for
at least 30 s.
Digital IQ Output Connector Pin Assignment (Option 65 Only)

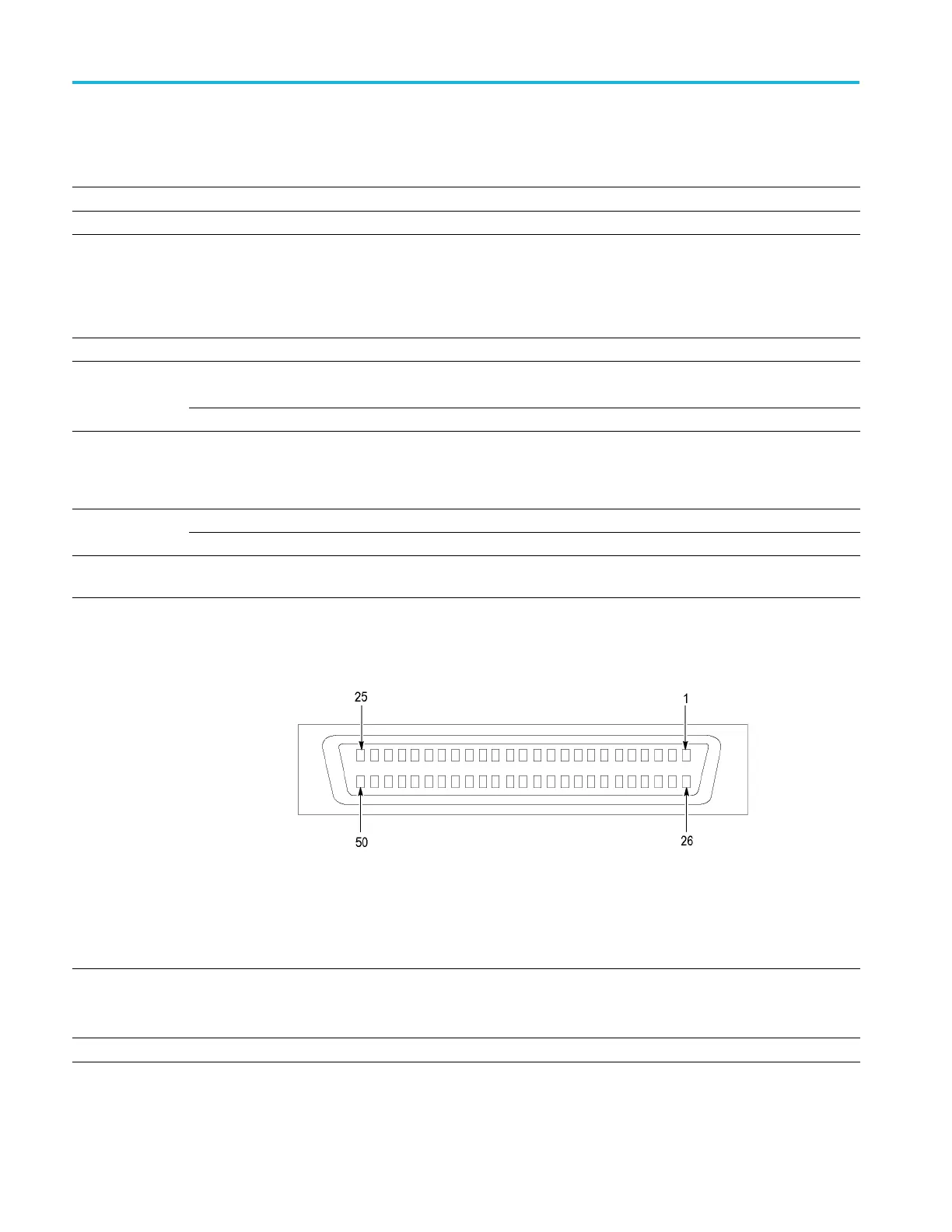

Figure 1: Digital IQ output connector pin assignment
Table 65: I OUTPUT connector pin assignment
Pin number Signal name Description
1
IQ_ENABLE* IQ output enable signal input
Open: IQ output disable
GND: IQ output enable
26
GND Ground
64 RSA5100B Series Technical Reference
