Tektronix TBS2204B Installation And Safety Instructions

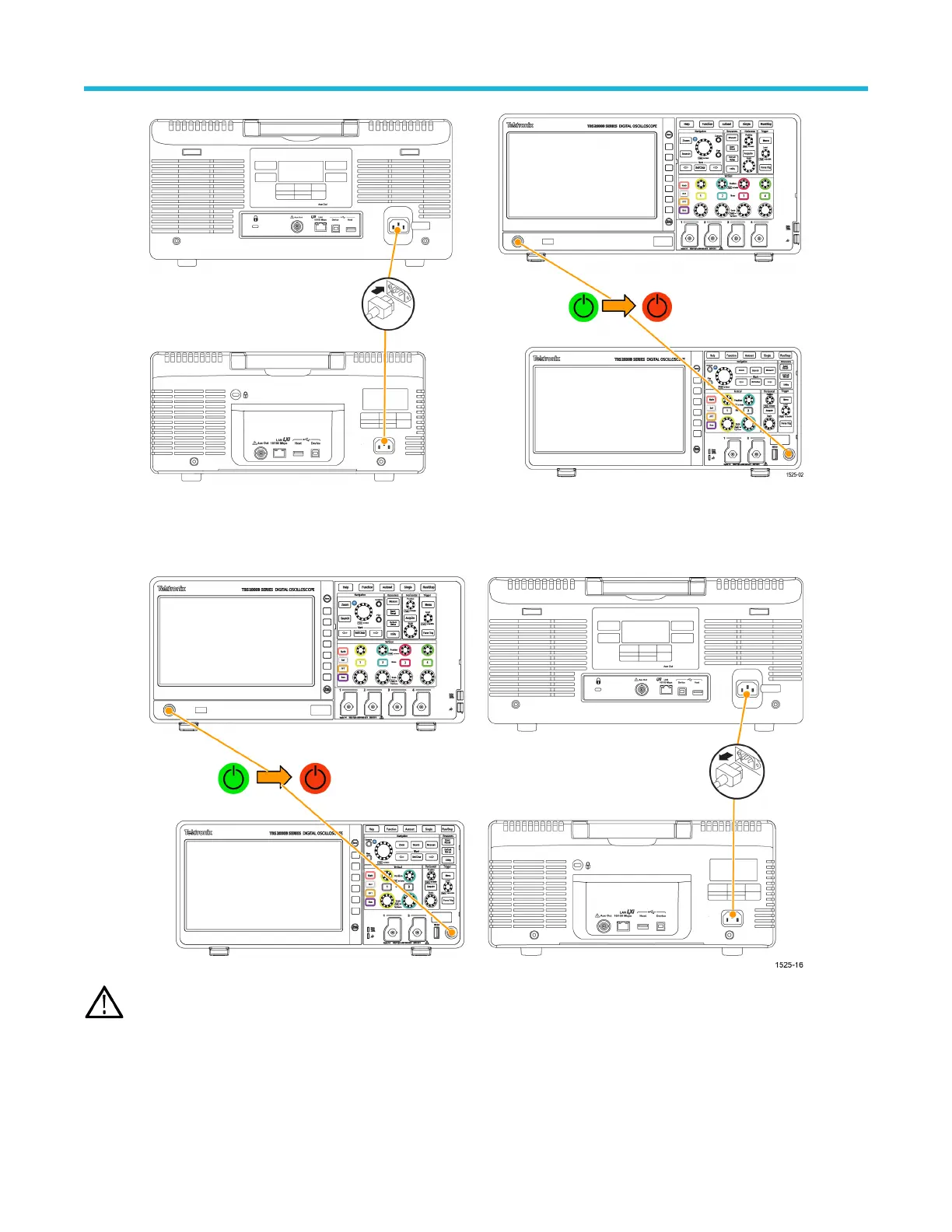

To power off the oscilloscope on:
1. Push the front panel Power
button.
2. Disconnect the power cord from the main source and the oscilloscope power connector.
Note: The current instrument settings are stored in nonvolatile memory when you power of
f the oscilloscope. The oscilloscope
restores the settings when you power on.
Front-panel connectors
Front-panel connectors
9

Tektronix TBS2204B Specifications

General

Brand	Tektronix
Model	TBS2204B
Category	Test Equipment
Language	English
