Removal and Replacement
6–22
TDS 340A, TDS 360 & TDS 380 T
echnical Reference
STOP
. Continue with pr
ocedur
e steps 9 thr
ough 13 only if you need to replace a
BNC, attenuator hybrid, EMI shield, or attenuator shield (see Figur
e
6–13).
Otherwise, skip to step
14 to r
einstall the main boar
d assembly
.
Main board
Wrench
Alignment tool
Attenuator
shield
BNC
Attenuator hybrid
Attenuator frame
T
wist-lock tab

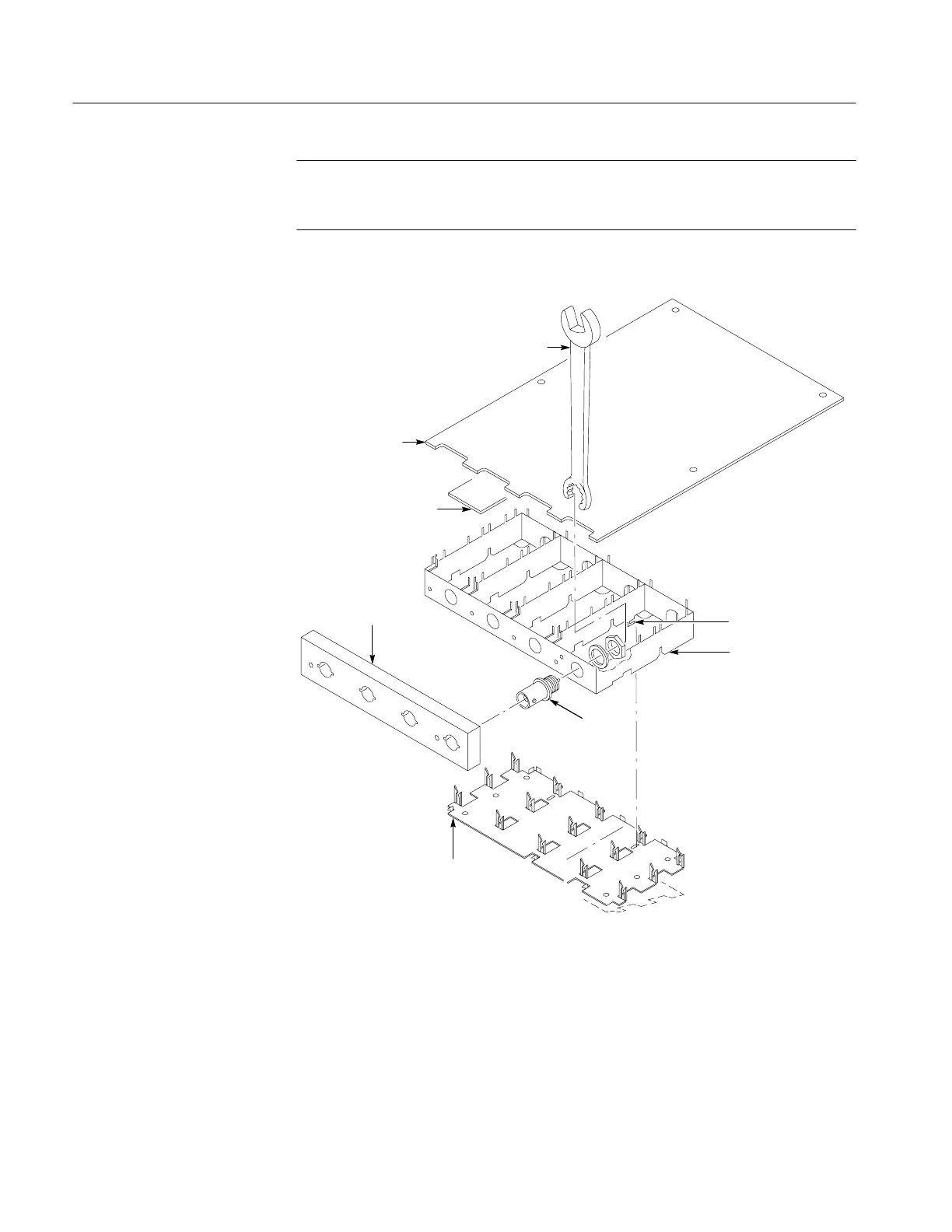

Figure 6–13: BNC and hybrid removal
113
115
Table of Contents
Table of Contents
7
Table 1-1: Warranted Characteristics - Signal Acquisition
20
Table 1-2: Warranted Characteristics - Time Base System
21
Table 1-3: Warranted Characteristics - Triggering System
22
Table 1-4: Power Requirements
22
Table 1-5: Warranted Characteristics - Environmental
23
Table 1-6: Typical Characteristics - Signal Acquisition System
24
Table 1-7: Typical Characteristics - Triggering System
25
Table 1-8: Typical Characteristics - Probe Compensator Output
25
Table 1-10: Nominal Traits - Signal Acquisition System
26
Table 1-9: Typical Characteristics - Data Handling
26
Table 1-11: Nominal Traits - Time Base System
27
Table 1-12: Nominal Traits - Triggering System
27
Table 1-13: Nominal Traits - Display System
28
Table 1-15: Nominal Traits - Power Distribution System
28
Table 1-16: Nominal Traits - Mechanical Characteristics
29
Figure 1-1: Oscilloscope Dimensions
30
Table 1-17: Certifications and Compliances
31
Figure 2-1: a Pop-Up Menu
40
Figure 2-2: Using Menus
41
Figure 3-1: Block Diagram
45
Figure 3-2: Block Diagram with Option 14 Installed
46
Figure 4-1: Menu Locations
62
Table 4-1: Test Equipment
63
Figure 4-2: Verifying Adjustments and Signal Path
66
Figure 4-3: Hookup for Functional Test
67
Figure 4-4: Hookup for File System Functional Test
69
Figure 4-5: Hookup for DC Voltage Measurement Accuracy Check
72
Table 4-2: DC Accuracy
73
Figure 4-6: Hookup for Analog Bandwidth Check
74
Figure 4-7: Measuring Analog Bandwidth
75
Figure 4-8: Hookup for Sample Rate Check
76
Figure 4-9: Hookup for Trigger Sensitivity Check
78
Figure 4-10: Measuring Trigger Sensitivity
79
Figure 4-11: Hookup for Sine Wave Generator Leveling
81
Table 5-1: Adjustment Equipment
84
Figure 5-1: the System Calibration Menu
85
Figure 5-2: Timing Compensation Waveform
87
Figure 5-3: Attenuator Adjustment Setup and Locations
88
Figure 5-4: Monitor Adjustments
90
Table 6-1: External Inspection Check List
95
Table 6-2: Internal Inspection Check List
96
Figure 6-1: Oscilloscope Orientation
98
Table 6-3: Tools Required for Module Removal
98
Figure 6-2: Line Cord Removal
100
Figure 6-3: Line Fuse Removal
101
Figure 6-4: Knob and Shaft Removal
102
Figure 6-5: Rear Cover, Cabinet, and Cabinet Handle and Feet Removal
104
Figure 6-6: Removing the Disk Drive
105
Figure 6-7: Trim Ring, Menu Elastomer, and Menu Buttons Removal
106
Table 6-4: Power Supply Secondary Voltages
136
