Operating Information
2–4
TDS 340A, TDS 360 & TDS 380 Technical Reference
Miscellaneous Controls

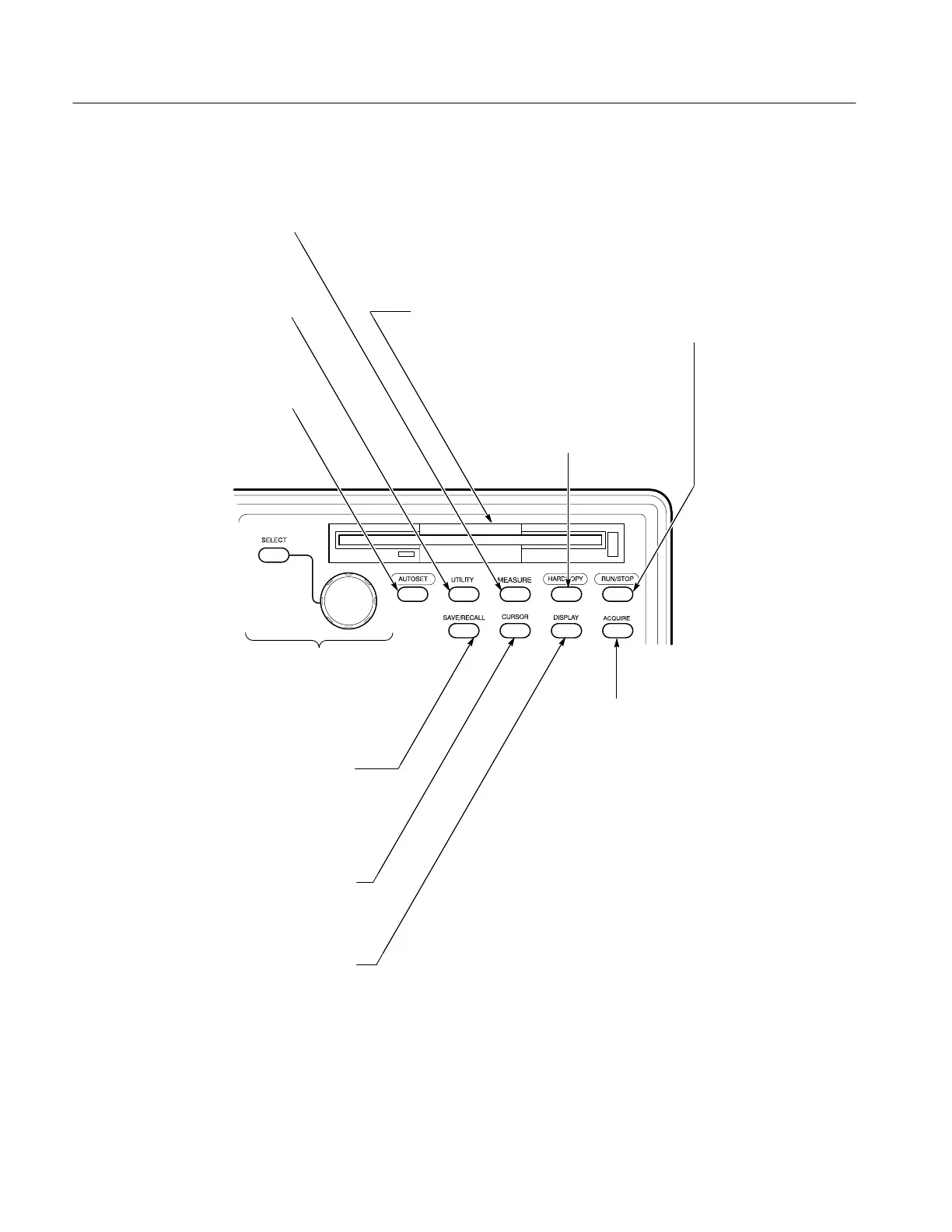

The General Purpose Knob controls many
side-menu functions, including the cursors.
The SELECT button switches control from
cursor to cursor.
The AUTOSET button automatically
sets up the instrument to produce a
usable display of the input signals.
The SAVE/RECALL button calls up the
save/recall menu.
The UTILITY button calls up the
utility menu.
The CURSOR button calls up the
cursor menu.
The MEASURE button calls up the
automated measurements menu.
The DISPLAY button calls up the
display menu.
The HARDCOPY button starts
print operations.
(Requires Opt 14 installed)
The ACQUIRE button calls up the
acquisition menu.
The RUN/STOP button starts
and stops acquisition.
The floppy disk drive provides
mass storage for waveforms,
setups, and hard copies.
