Cursor Measurements
Reference
3Ć20
Non-selected Cursor
(Dashed Vertical Bar)
Cursor Readout (Paired)
Selected Cursor
(Solid Vertical Bar)
Position of Vertical Bar Cursors
(Useful for Locating Cursors
Outside the Display)

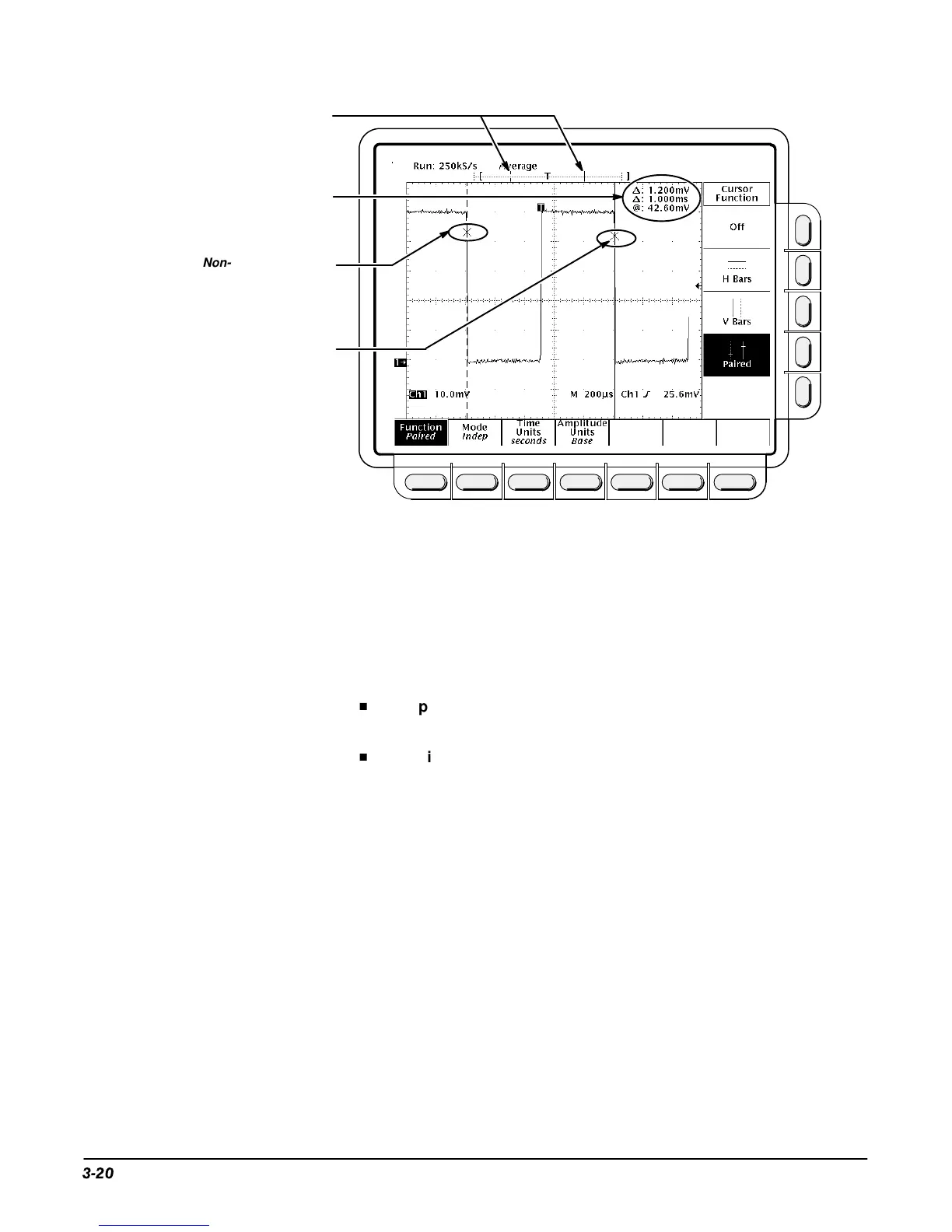

Figure 3-11: Paired Cursor Menu and Readouts
Mode
Select the cursor mode you want using the Mode menu item.
1. Press CURSOR ➞ Mode (main) ➞ Independent or Tracking (side):
H
Independent makes each cursor positionable without regard to the
position of the other cursor.
H
Tracking makes both cursors positionable in tandem; that is, both
cursors move in unison and maintain a fixed horizontal or vertical
distance between each other.
2. Use the general purpose knob to move the selected (active) cursor if
Independent was selected in step 1. Press SELECT to change which
cursor is active and moves. A solid line indicates the active cursor, and a
dashed line the inactive cursor.
or
Use the general purpose knob to move both cursors in tandem if Track-
ing was selected in step 1. Press SELECT to temporarily suspend cursor
tracking; then use the general purpose knob to adjust the distance of the
solid cursor relative to the dashed cursor. Press SELECT again to re-
sume tracking. A solid line indicates the adjustable cursor and a dashed
line the fixed cursor.
